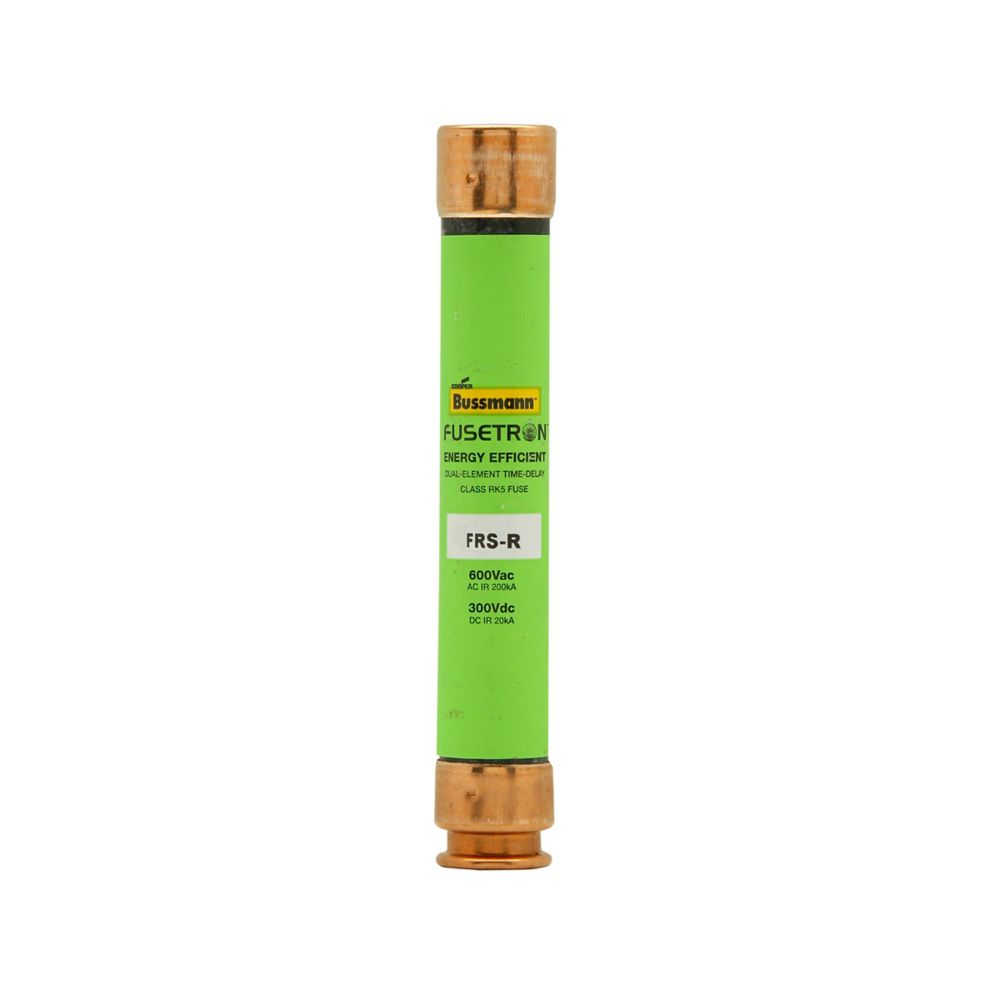

FRS-R-2 - Eaton Bussmann 2.5A 600V Class RK5 Dual Element Time-Delay Fuse

FRS-R-2

FRS-R-2 is a 2.5 ampere, 600 volt Class RK5 dual element time-delay fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a 200 kA interrupt rating at 600 Vac and 20 kA at 300 Vdc, with a 10 second response time at 500% overload. It is a non-indicating, ferrule end x ferrule end cartridge fuse suitable for branch circuit protection. The FRS-R series offers current limiting and time-delay characteristics to protect sensitive equipment from transient surges and overloads.

Key Specifications
• Amperage Rating: 2.5 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupt Rating: 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
• Class: RK5
• Fuse Type: Dual Element, Time-Delay
• Connection: Ferrule end x ferrule end
• Response Time: 10 seconds at 500% overload
• Fuse Indicator: Non-indicating
• Dimensions: 0.81 in diameter x 5 in length
• Certifications: CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508148
• GTIN : 00051712508148
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
