Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FRS-R-2-8/10

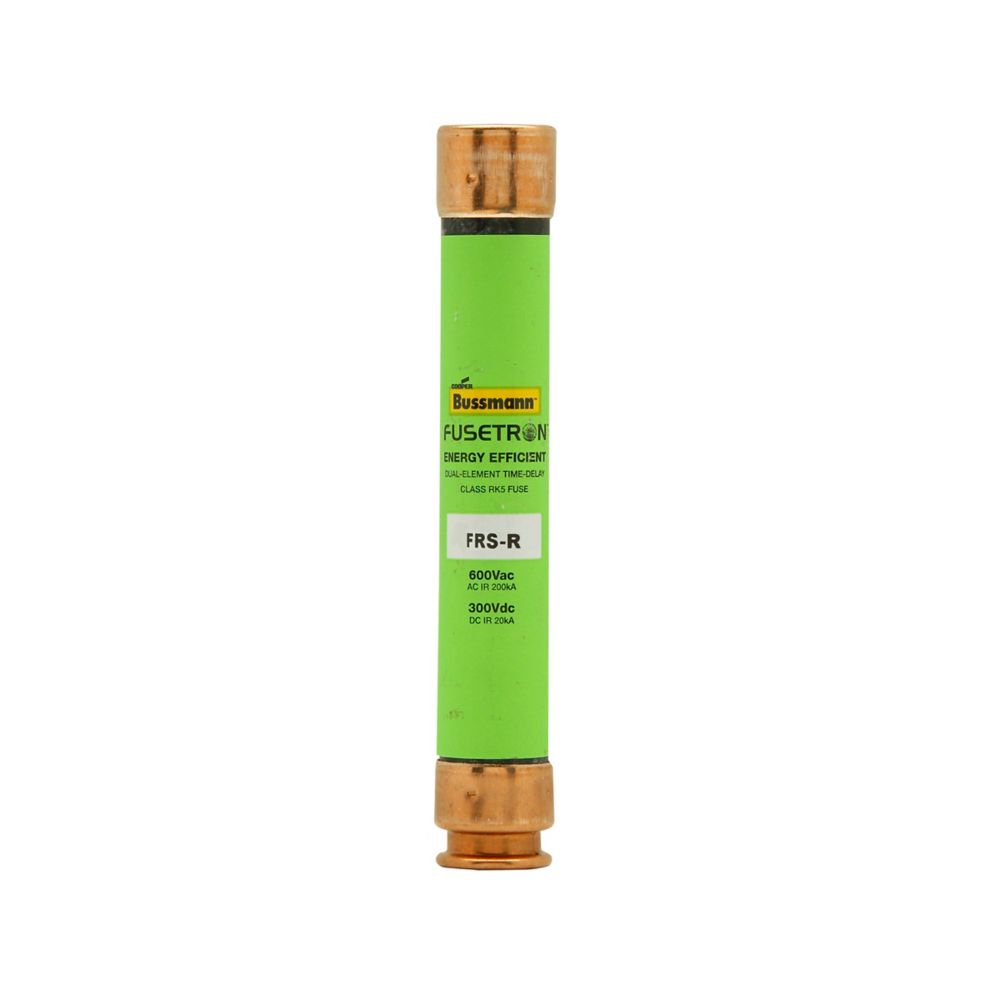

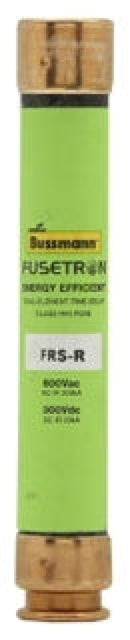

FRS-R-2-8/10 is a Bussmann Eaton Class RK5 fuse designed for reliable circuit protection with a 2.8 amp rating and 600 volt AC capacity.
This FRS-R series fuse features a dual-element, time-delay design that provides current limiting and superior protection for motors, transformers, and power panelboards. It has a cylindrical body measuring approximately 0.81 inches in diameter by 5 inches long, with an interrupting rating of 200,000 amps RMS symmetrical. This fuse is UL 248-12 certified and suitable for use in combination starters, machinery disconnects, and motor control centers.
- Key Specifications
- Amperage: 2.8 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Class: RK5
- Fuse Type: Time-Delay / Slow Blow
- Element: Dual-Element
- Interrupt Rating: 200,000 AIC (200 kA)
- Body Size: 0.81 in Diameter x 5 in Length
- Series: FRS-R
- Certifications: UL 248-12
- Mounting Type: Cartridge Fuse
- Part Number: FRS-R-2-8/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
- UPC : 051712508179
- GTIN : 00051712508179
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.15
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
