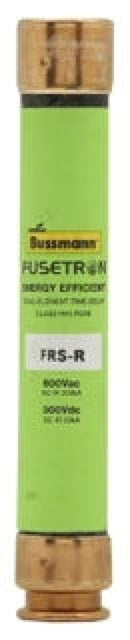

FRS-R-2/10 - Eaton Bussmann 0.2 Amp 600V Class RK5 Time Delay Dual Element Fuse

FRS-R-2/10

FRS-R-2/10 is a 0.2 amp, 600 volt Class RK5 time delay dual element fuse from Eaton Bussmann designed for advanced circuit protection.This fuse features a 10 second time delay at 500% rated load, dual element current limiting technology, and a high interrupting rating of 200,000 amps RMS symmetrical. It is a cartridge-style fuse suitable for use in branch circuit protection applications requiring reliable, energy-efficient performance. The fuse is non-indicating and complies with UL standards for Class RK5 fuses.

Key Specifications
• Amperage: 0.2 Amp
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 200,000 A RMS Symmetrical
• Fuse Class: RK5
• Time Delay: 10 seconds at 500% rated load
• Fuse Type: Dual Element, Current Limiting
• Physical Size: 0.81 inch diameter x 5 inch length
• Mounting Type: Cartridge
• UL Listed
• Non-indicating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRS-R-2/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 051712508025
• GTIN : 00051712508025
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.145
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
