FRS-R-2-1/4 - Eaton Bussmann 2.25A 600VAC Class RK5 Dual-Element Time-Delay Fuse

FRS-R-2-1/4

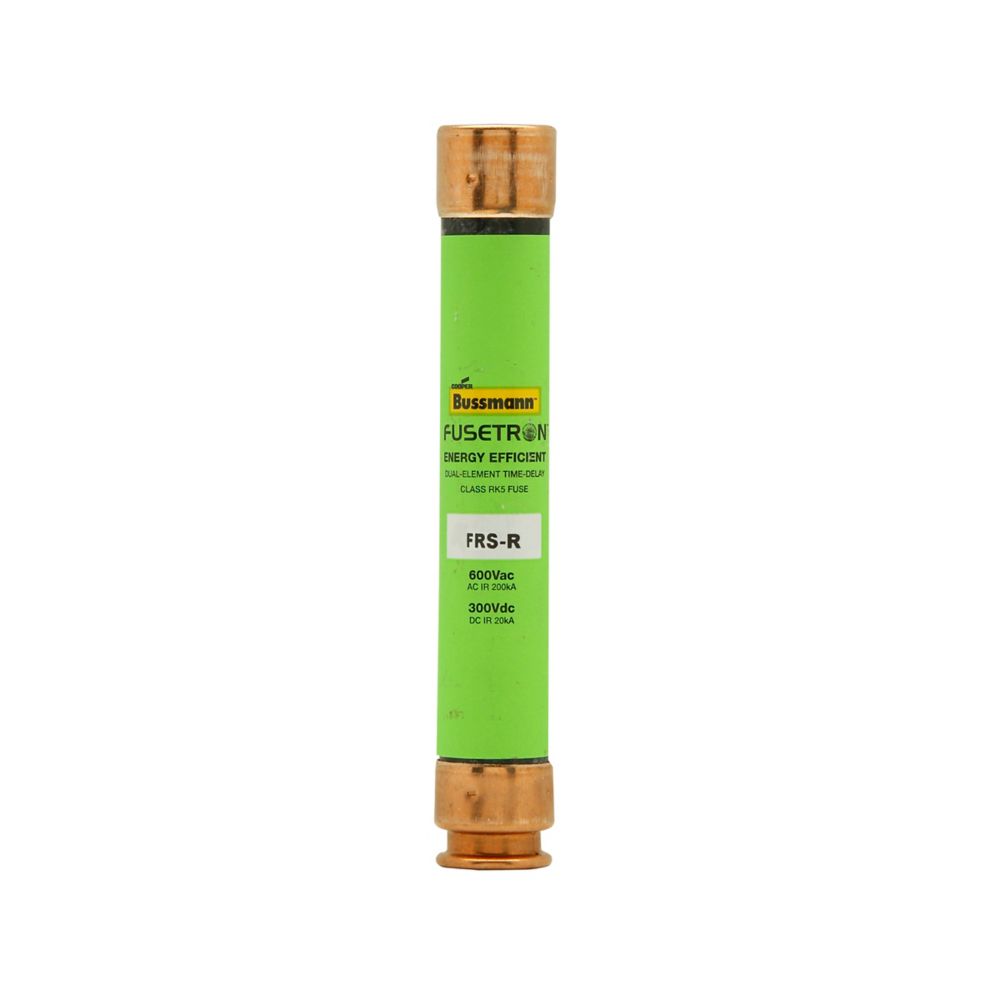

FRS-R-2-1/4 is a 2.25 amp, 600 VAC Class RK5 dual-element time-delay fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a dual-element design for superior time-delay performance, enabling closer sizing and enhanced protection of motors and transformers. It is a 1-pole cartridge fuse with a ferrule end-to-ferrule end mounting style, rated for 600 volts AC and an interrupt rating of 200,000 amps. The fuse is non-indicating and meets Class RK5 specifications for low voltage circuit protection.

Key Specifications
• Amperage: 2.25 A
• Voltage Rating: 600 VAC
• Class: RK5
• Fuse Type: Dual-Element Time-Delay
• Poles: 1
• Mounting Type: Ferrule End x Ferrule End
• Interrupt Rating: 200 kA
• Shape: Cartridge Fuse
• Non-Indicating
• Manufacturer: Eaton Bussmann
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRS-R-2-1/4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 051712508155
• GTIN : 00051712508155
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.145
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
