Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FRS-R-2-1/2

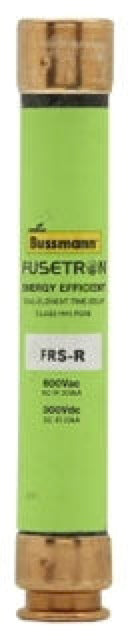

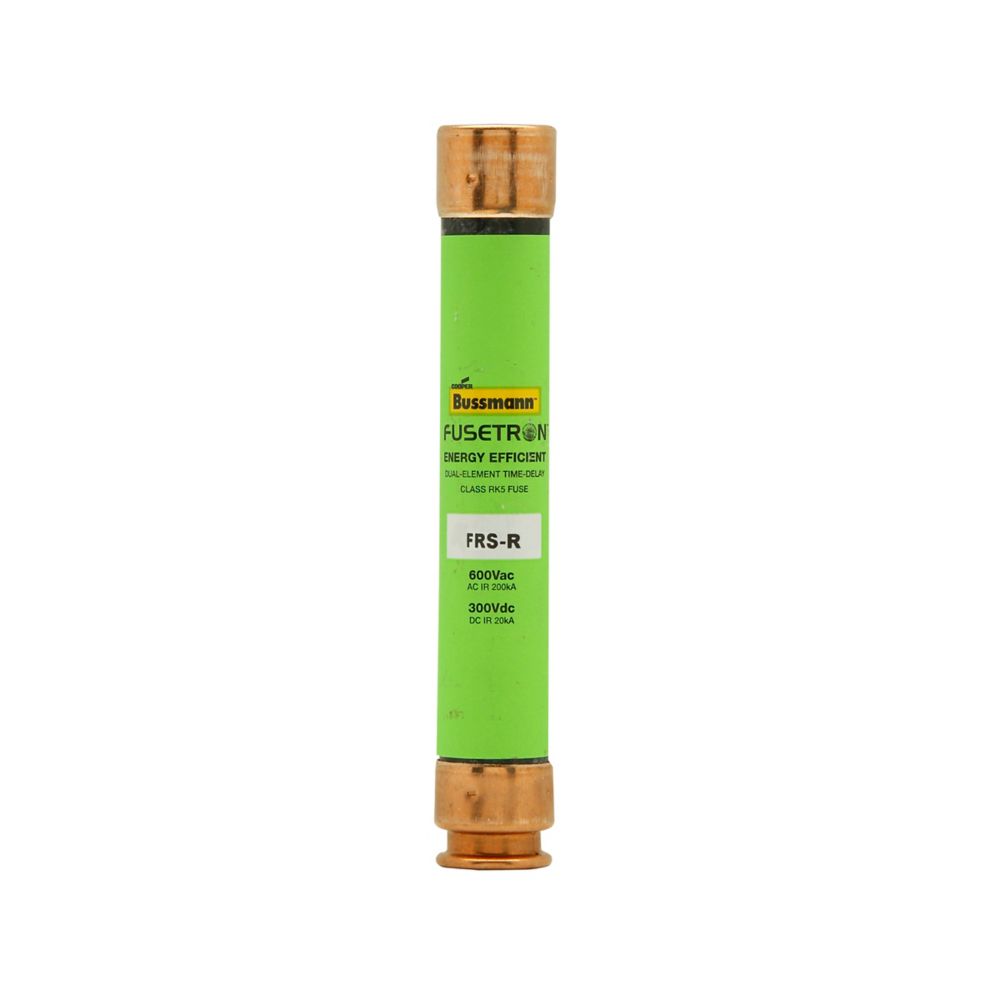

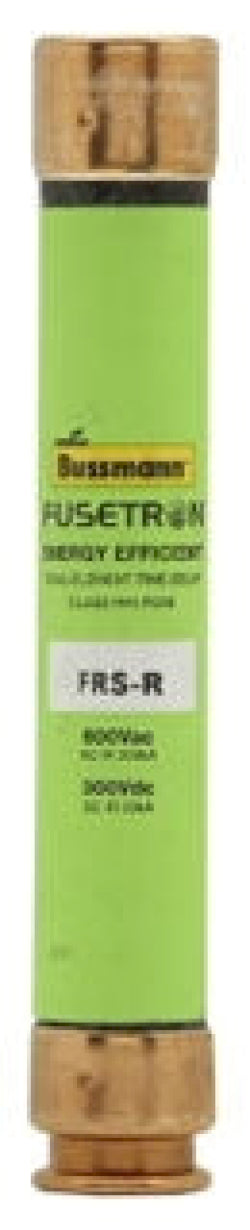

FRS-R-2-1/2 is a 2.5 amp, 600 volt Class RK5 time-delay fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a dual-element, current-limiting design with time-delay characteristics, providing advanced protection for branch circuits. It has a ferrule end-to-end mounting type and a high interrupt rating of 200 kA at 600 VAC and 20 kA at 300 VDC. The fuse is non-indicating and UL listed, suitable for use in industrial and commercial applications requiring Class RK5 protection.
- Key Specifications
- Amperage: 2.5 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK5
- Time-Delay: Dual-element
- Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
- Mounting Type: Ferrule end to ferrule end
- Length: 5 inches
- Diameter: 0.81 inches
- Non-indicating fuse
- UL Listed
Specifications
- Part Number: FRS-R-2-1/2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 005171250816
- GTIN : 00051712508162
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.15
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
