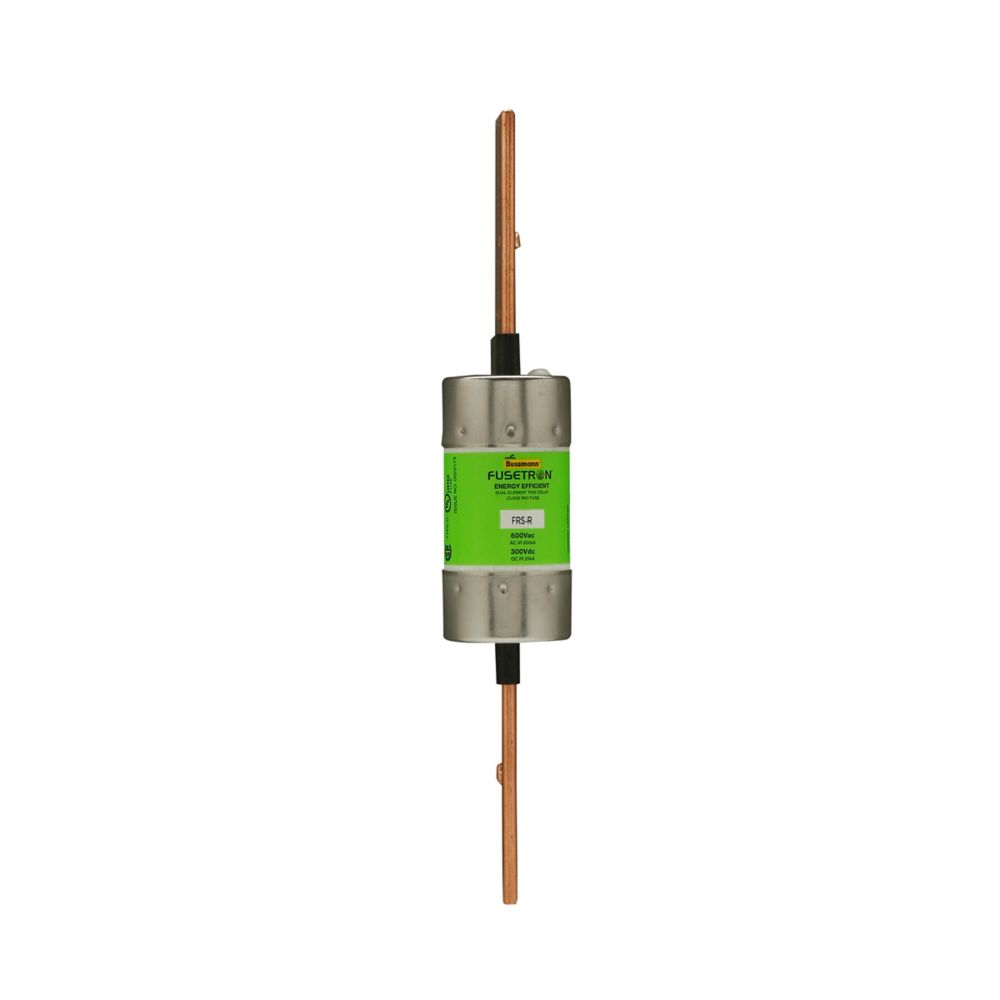

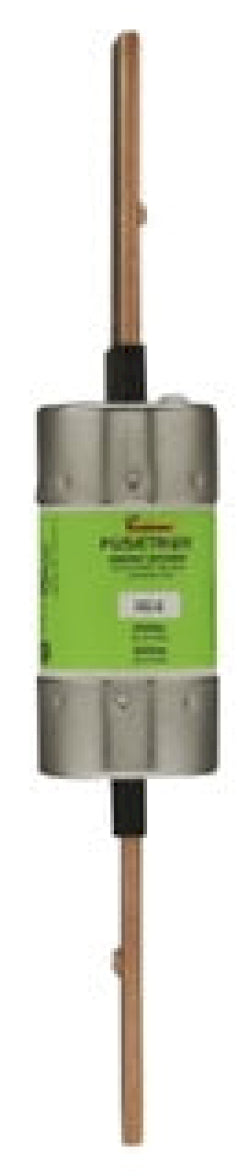

FRS-R-175 - Eaton Bussmann 175 Amp 600 Vac/300 Vdc Dual Element Time Delay Class RK5 Fuse

FRS-R-175

FRS-R-175 is a 175 Amp dual element time delay fuse from Eaton Bussmann designed for Class RK5 applications.This fuse features a 10 second time delay at 500% rated load, current limiting dual element design, and is rated for 600 Vac and 300 Vdc operation. It has a high interrupting rating of 200,000 Amps symmetrical at 600 Vac and 20,000 Amps at 300 Vdc. The fuse includes blade terminals for mounting and is UL 248-12, CSA, and CE certified. Its dimensions are approximately 1.61 inches in diameter and 9.63 inches in length.

Key Specifications
• Amperage: 175 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupting Rating: 200 kA at 600 Vac, 20 kA at 300 Vdc
• Time Delay: 10 seconds at 500% rated current
• Fuse Type: Dual Element, Current Limiting
• Class: RK5
• Mounting Type: Blade Terminal
• Dimensions: 1.61 in diameter x 9.63 in length
• Certifications: UL 248-12, CSA, CE
• Series: FRS-R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-175
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 175
• AIC rating : 200kA@600V
• Diameter : 1.61
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508476
• GTIN : 00051712508476
• Country of Origin : Mexico
• Dimensions : 9.63 in x 1.84 in x 1.84 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
