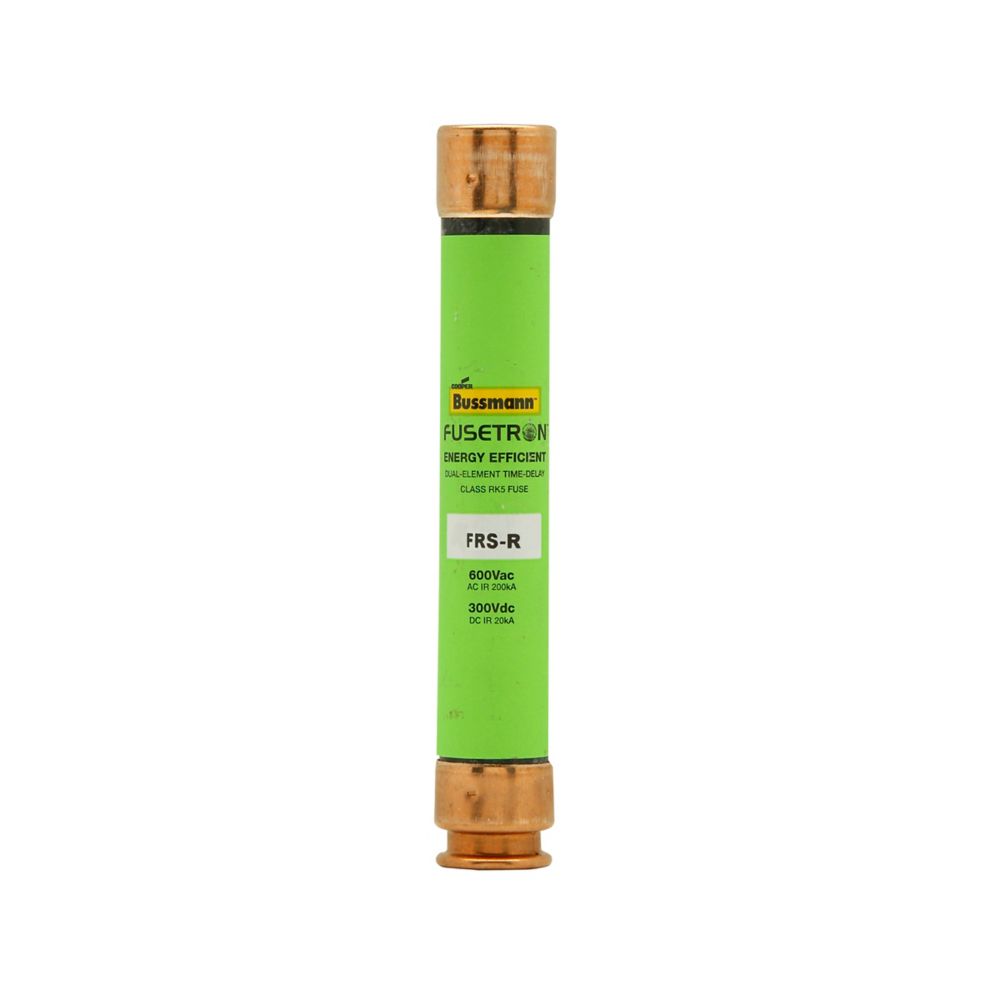

FRS-R-12 - Eaton Bussmann 12 Amp 600 Vac Class RK5 Time Delay Fuse Dual Element 200kA Interrupt Rating Ferrule End

FRS-R-12

FRS-R-12 is a 12 Amp, 600 Vac/300 Vdc Class RK5 time delay fuse from Eaton Bussmann designed for reliable circuit protection.This dual-element, current-limiting fuse features a 10 second time delay at 500% rated load, ferrule end terminals, and a high interrupting rating of 200,000 amps at 600 Vac and 20,000 amps at 300 Vdc. It meets UL 248-12, CSA, and CE certifications and is part of the Fusetron series, providing robust protection in industrial and commercial applications.

• Amperage: 12 A
• Voltage Rating: 600 Vac / 300 Vdc
• Fuse Class: RK5
• Time Delay: 10 seconds at 500% rated current
• Interrupt Rating: 200 kA at 600 Vac, 20 kA at 300 Vdc
• Fuse Type: Dual Element, Current Limiting
• End Type: Ferrule terminals
• Dimensions: 0.81 inch diameter x 5 inch length
• Certifications: UL 248-12, CSA, CE
• Series: Fusetron FRS-R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-12
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 12
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 005171250829
• GTIN : 00051712508292
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
