Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FRS-R-110

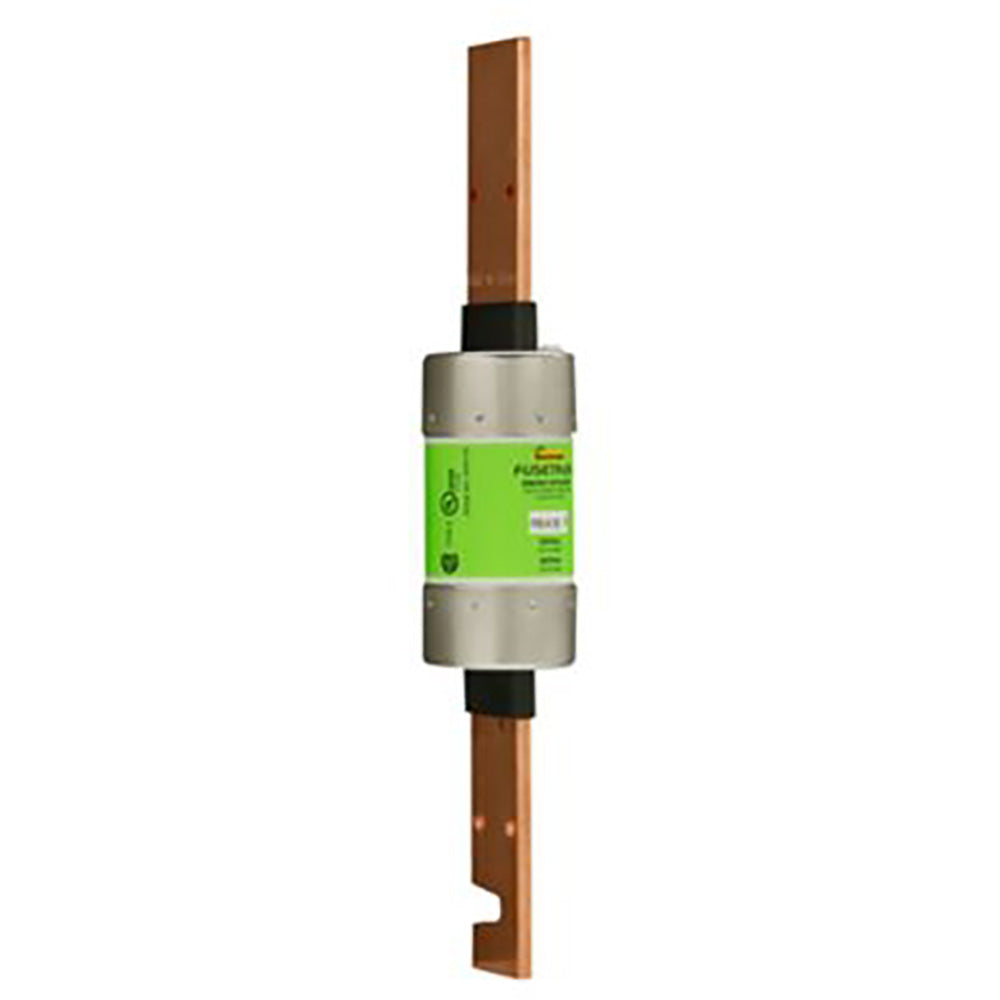

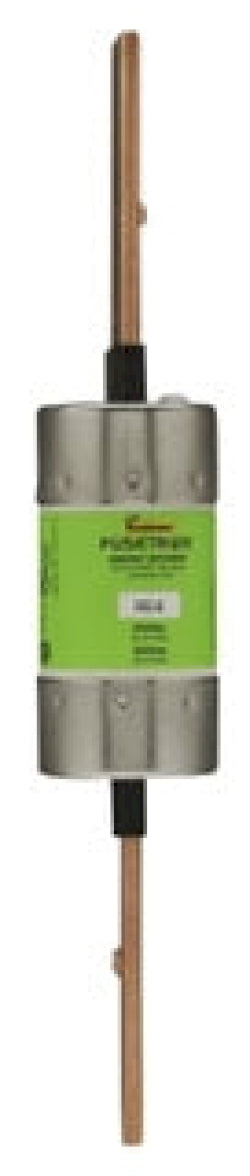

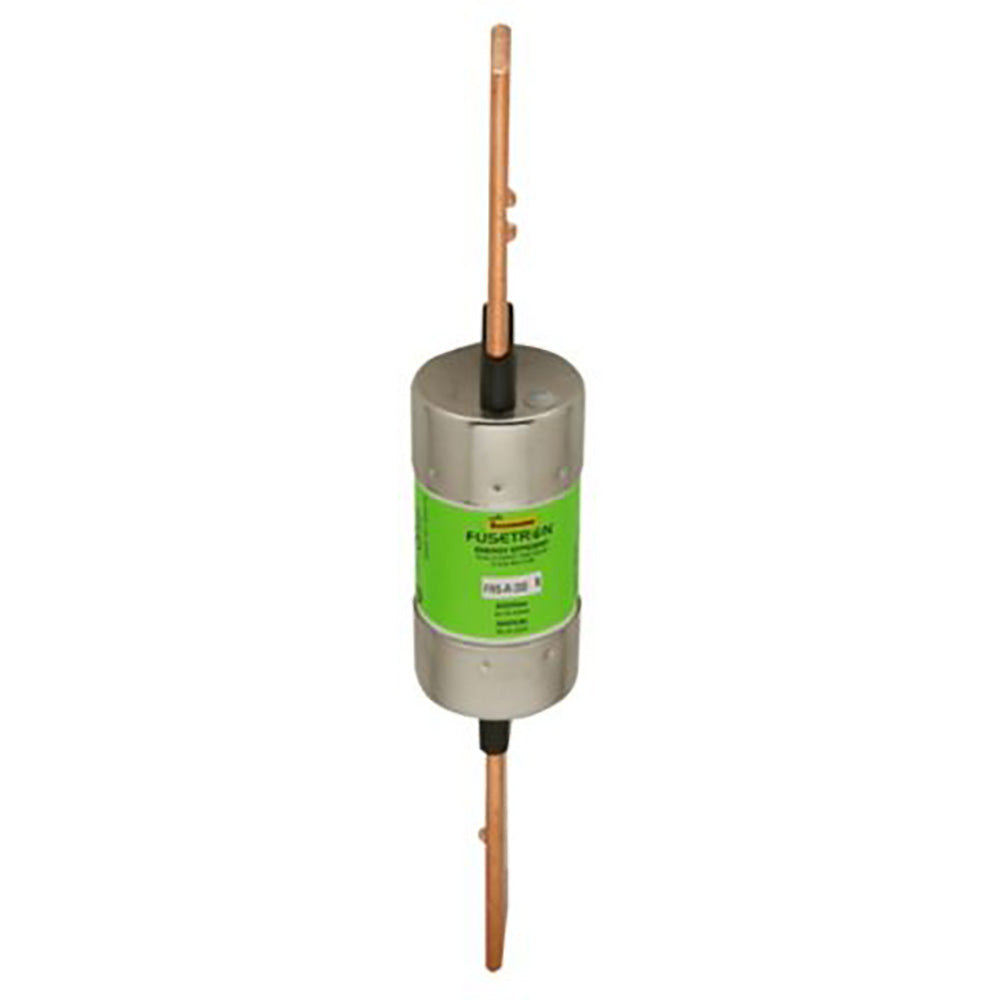

FRS-R-110 is a 110 Amp Class RK5 dual element time-delay fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a 10 second time delay at 500% rated load, current-limiting dual element construction, and is rated for 600 Vac and 300 Vdc operation. It has a high interrupting rating of 200,000 A at 600 Vac and 20,000 A at 300 Vdc, with blade terminal connections. The fuse meets UL 248-12, CSA, and CE certifications and is part of the Fusetron brand series.
- Amperage: 110 A
- Voltage Rating: 600 Vac / 300 Vdc
- Class: RK5
- Time Delay: 10 seconds at 500% rated current
- Interrupting Rating: 200,000 A (600 Vac), 20,000 A (300 Vdc)
- Mounting Type: Blade terminal
- Fuse Type: Dual element, current limiting
- Length: 9.63 inches
- Diameter: 1.61 inches
- Certifications: UL 248-12, CSA, CE
- Brand: Fusetron (Eaton Bussmann)
Specifications
- Part Number: FRS-R-110
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 110
- AIC rating : 200kA@600V
- Diameter : 1.61
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 051712508445
- GTIN : 00051712508445
- Country of Origin : Mexico
- Dimensions : 9.63 in x 1.84 in x 1.84 in (Length/Depth x Height x Width)
- Weight : 1.05
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
