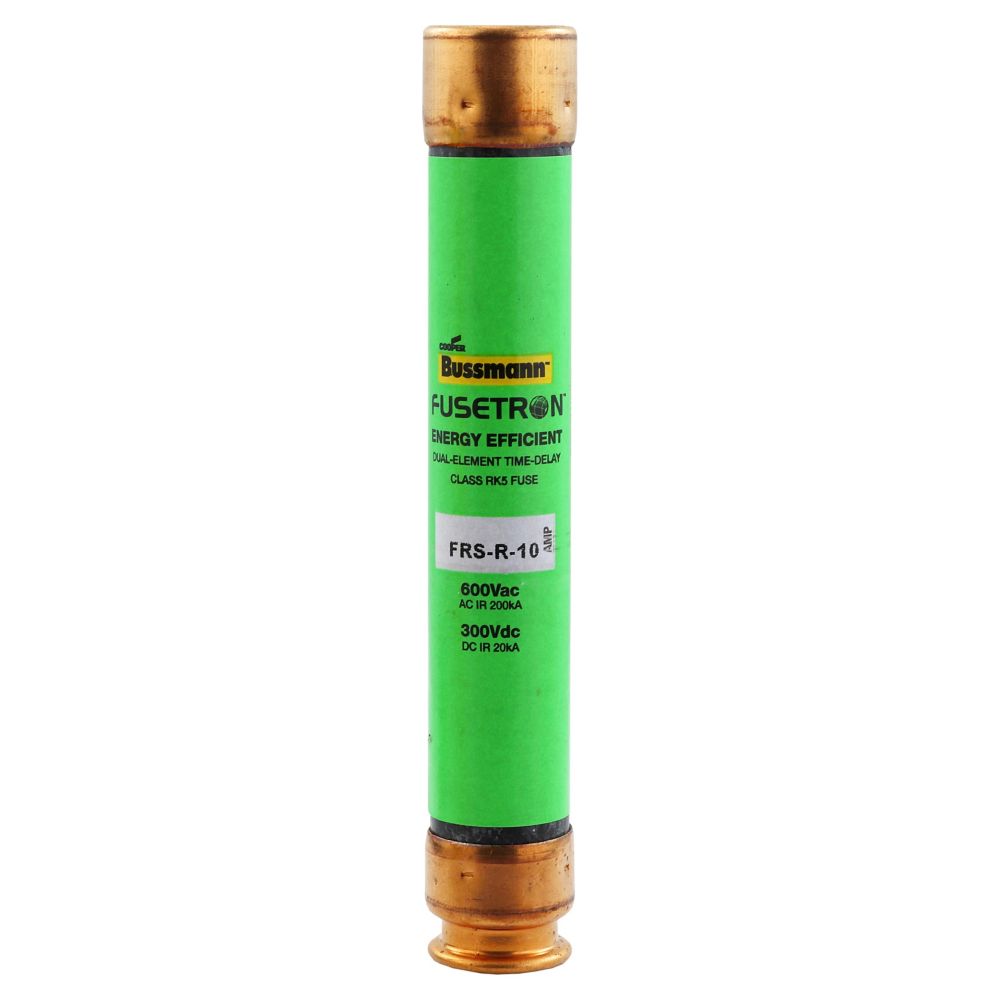

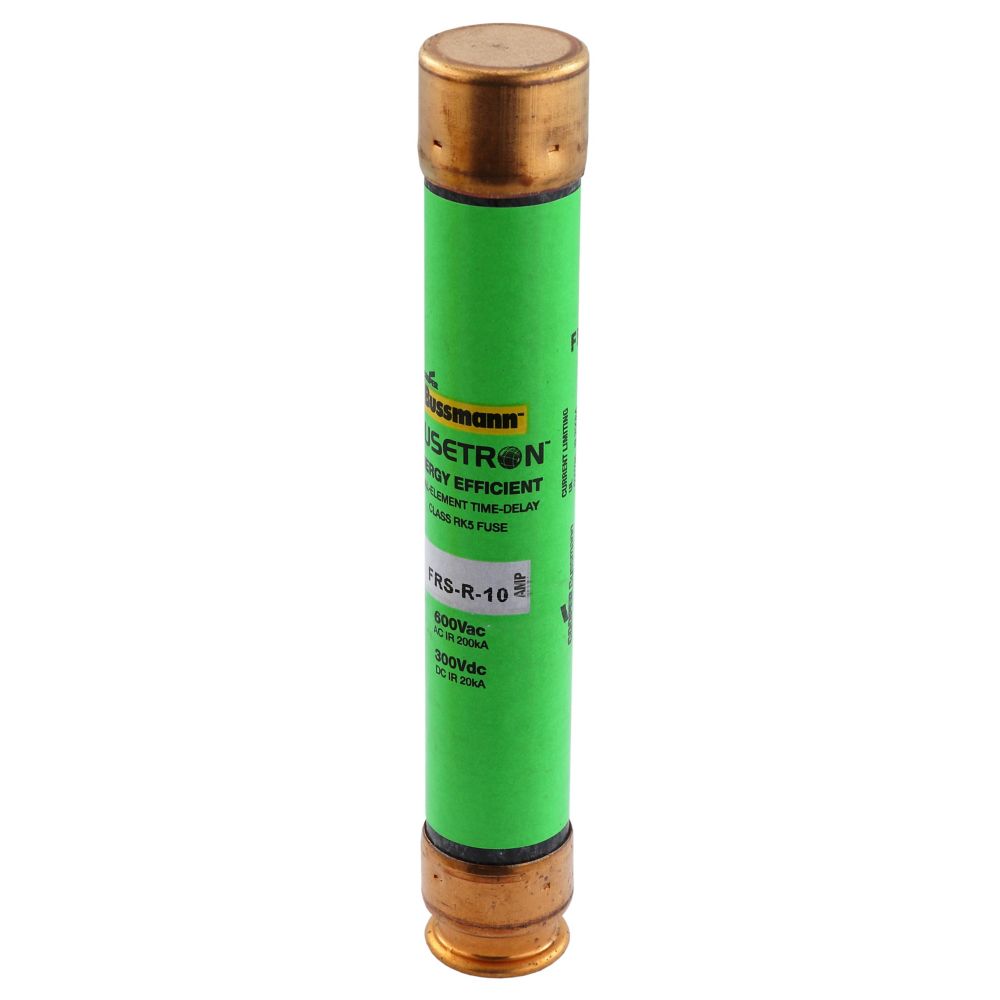

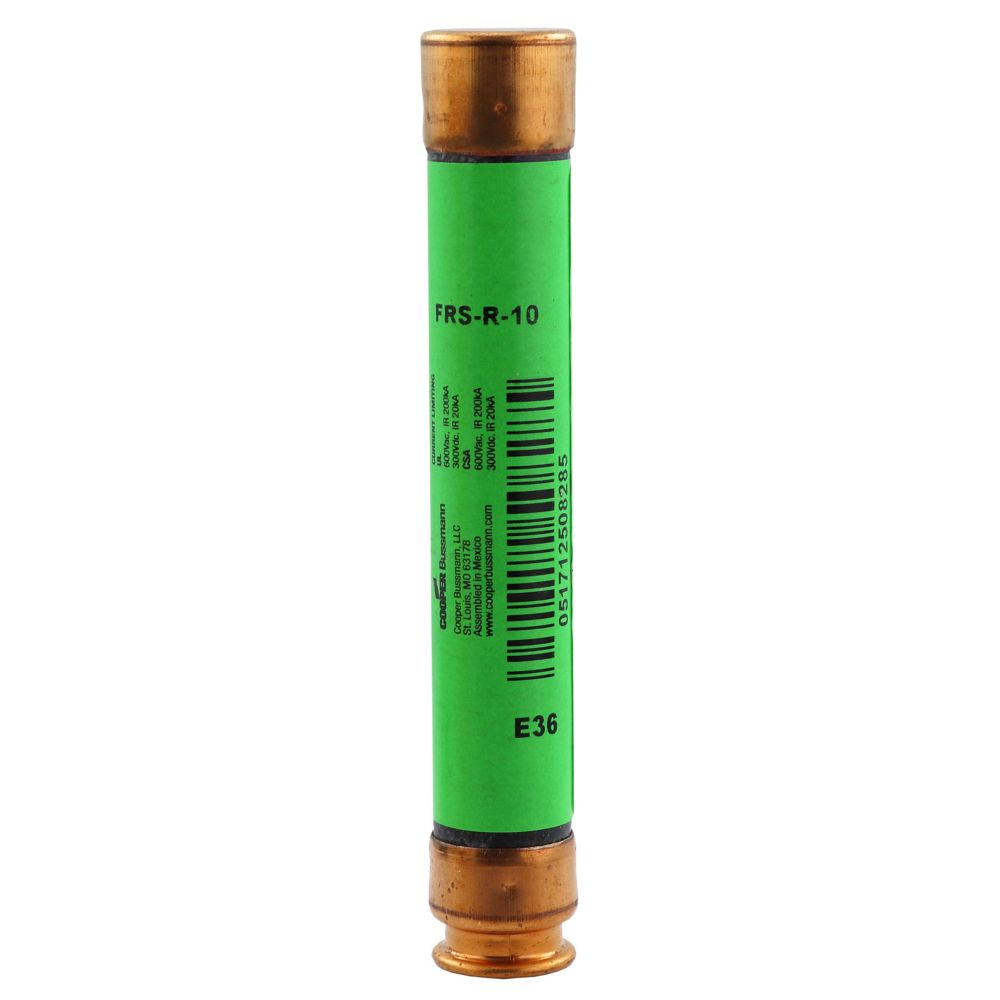

FRS-R-10 - Eaton Bussmann 10A 600V Dual Element Time-Delay Class RK5 Fuse

FRS-R-10

FRS-R-10 is a 10 amp, 600 Vac/300 Vdc dual element, time-delay fuse from Eaton Bussmann's Class RK5 Fusetron series.This fuse features a 10 second time-delay at 500% overload, a high interrupt rating of 200 kA at 600 Vac and 20 kA at 300 Vdc, and ferrule end x ferrule end connections. It is non-indicating and designed for holder mounting, providing reliable current limiting protection for branch circuits.

Key Specifications
• Amperage Rating: 10 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupt Rating: 200 kA at 600 Vac, 20 kA at 300 Vdc
• Class: RK5
• Fuse Type: Dual Element, Time-Delay
• Response Time: 10 seconds at 500% overload
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Mounting Type: Holder mount
• Compliance: CE Marked
• Body Size: 0.81 in diameter x 5 in length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 10
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508285
• GTIN : 00051712508285
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.17
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
