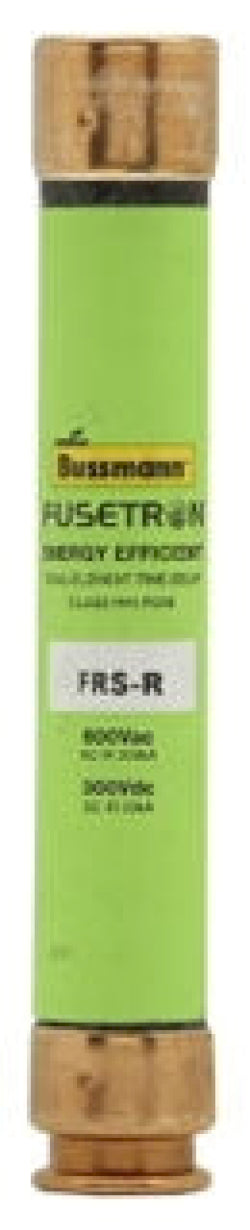

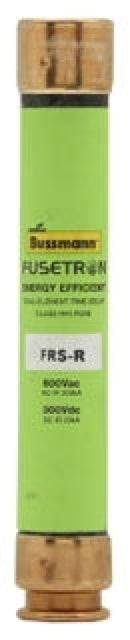

FRS-R-1-8/10 - Bussmann Eaton Class RK5 Time Delay Fuse 1.8A 600V AC Dual Element

FRS-R-1-8/10

FRS-R-1-8/10 is a Bussmann Eaton Class RK5 time delay fuse designed for reliable circuit protection.This 1.8 amp, 600 volt AC fuse features a dual element design that tolerates temporary inrush currents without nuisance blowing, making it ideal for motor and equipment startups. It has a cylindrical body measuring approximately 0.81 inches in diameter by 5 inches in length and a high interrupt rating of 200,000 amps. The fuse is non-indicating and UL and CSA certified.

Key Specifications
• Current Rating: 1.8 Amps
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Time Delay / Slow Blow
• Interrupt Rating: 200,000 Amps
• Class: RK5
• Series: FRS-R
• Physical Size: 0.81 in diameter x 5 in length
• Non-indicating fuse
• Certifications: UL, CSA
• Dual Element Design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-1-8/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508131
• GTIN : 00051712508131
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
