Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FRS-R-1-6/10

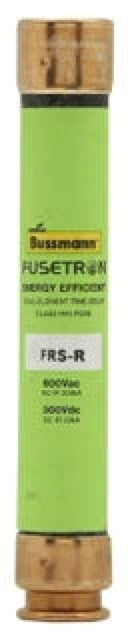

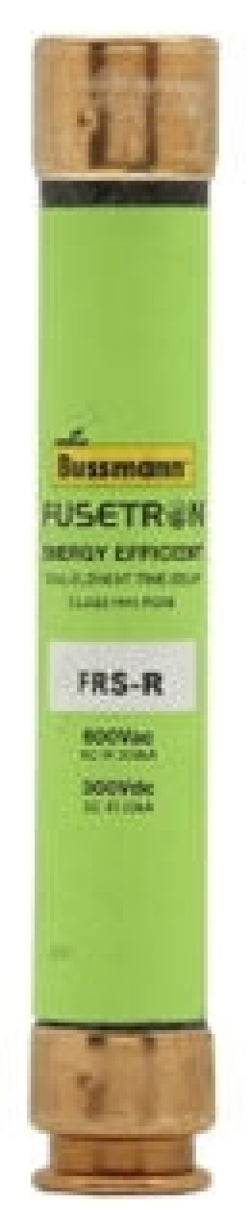

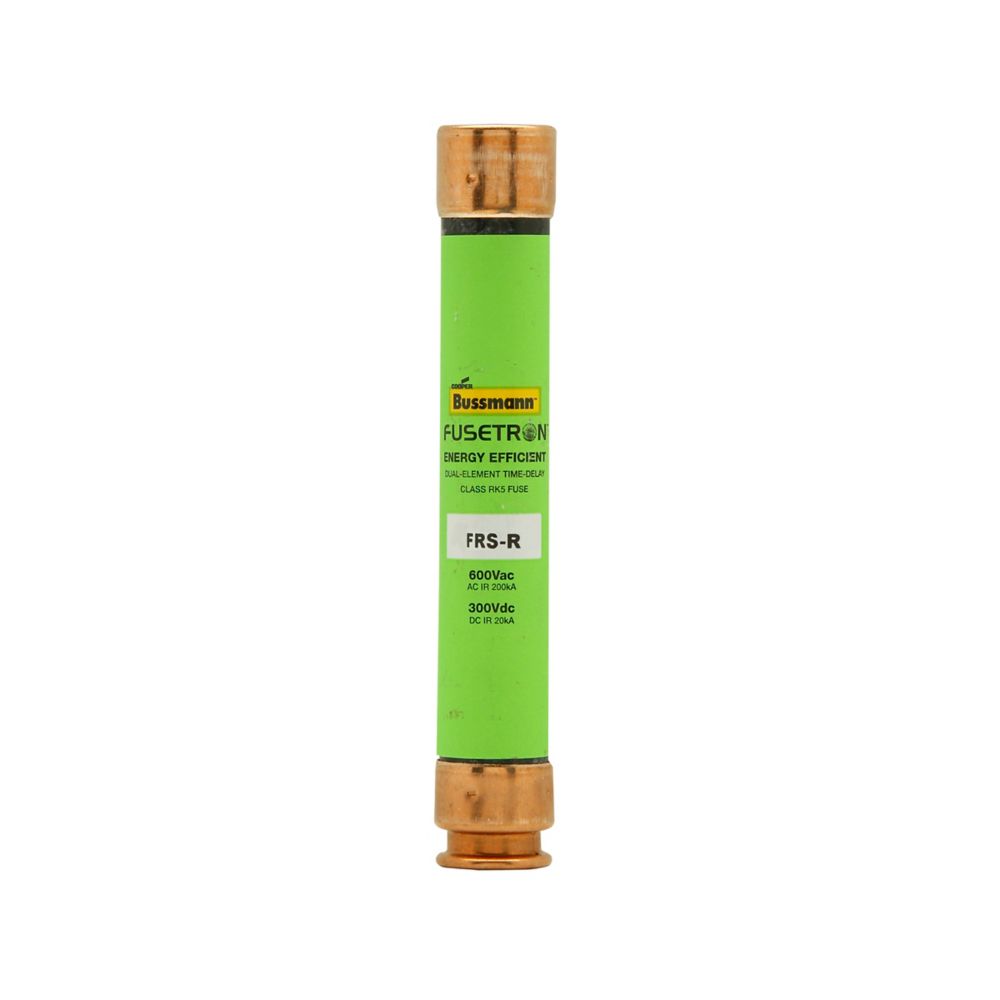

FRS-R-1-6/10 is a Bussmann Fusetron time delay fuse designed for reliable circuit protection.This Eaton Bussmann FRS-R series fuse features a 1.6 ampere rating, 600 VAC/300 VDC voltage rating, and a Class RK5 dual-element, current-limiting design. It has a cylindrical body measuring 0.81 inches in diameter by 5 inches in length, with a 200 kA interrupt rating. The fuse is renewable, non-indicating, and mounts in a fuse holder for easy installation.
- Key Specifications
- Amperage: 1.6 A
- Voltage: 600 VAC / 300 VDC
- Class: RK5
- Series: FRS-R
- Body Size: 0.81 in diameter x 5 in length
- Interrupt Rating: 200 kA
- Type: Dual Element, Time Delay, Current Limiting
- Mounting: Fuse Holder
- Body Type: Cylindrical
- Indicating: Non-Indicating
- Terminal Type: Ferrule
- Certifications: UL Listed
Specifications
- Part Number: FRS-R-1-6/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 051712508124
- GTIN : 00051712508124
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.155
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
