FRS-R-1-4/10 - Eaton Bussmann 1.4A 600VAC/300VDC Class RK5 Time-Delay Fuse

FRS-R-1-4/10

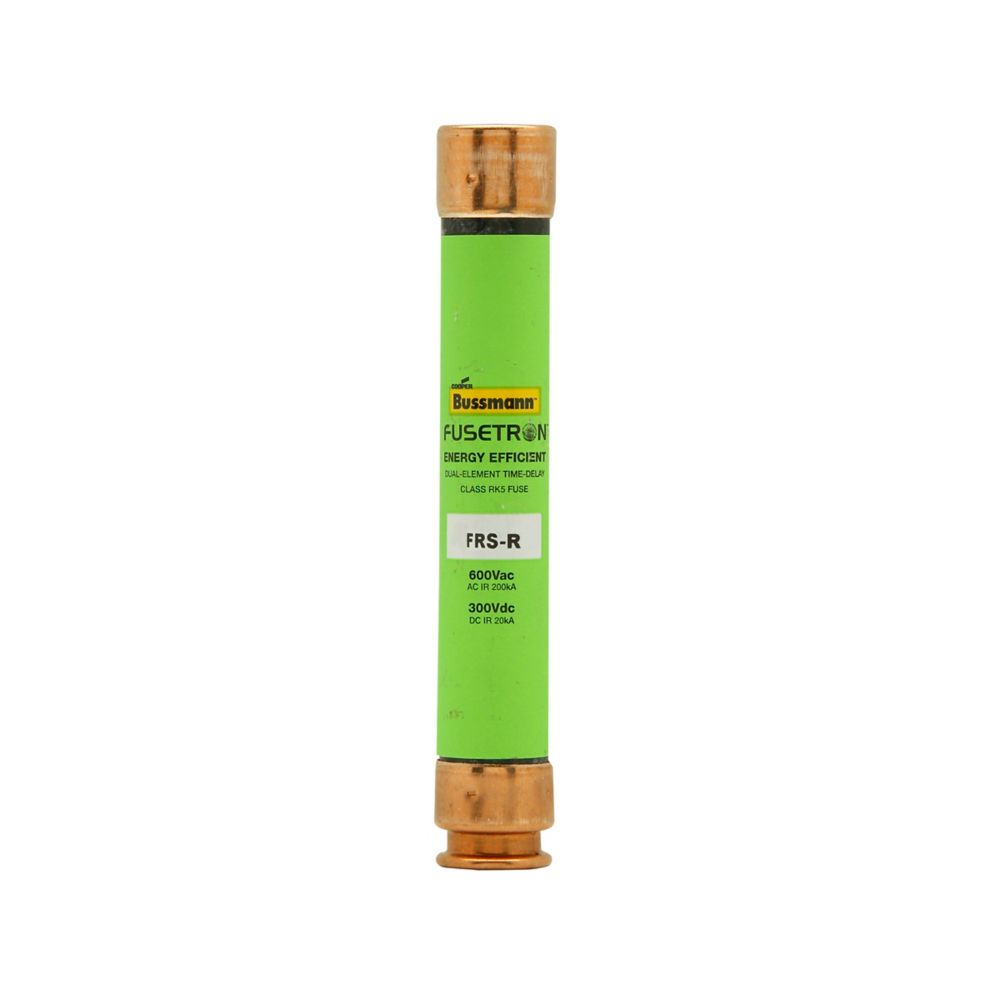

FRS-R-1-4/10 is a Bussmann series Fusetron™ Class RK5 time-delay fuse rated at 1.4 amps for reliable circuit protection.FRS-R-1-4/10 features a dual element design with current limiting capability, suitable for 600 VAC and 300 VDC applications. It has a high interrupt rating of 200 kA at 600 VAC and 20 kA at 300 VDC, ensuring safe interruption of fault currents. The fuse is cylindrical with a 0.81 inch diameter and 5 inch length, designed for use in fuse blocks with ferrule end connections. It provides a 10-second response time at 500% overload, meeting Class RK5 standards for time-delay fuses.

Key Specifications
• Amperage: 1.4 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Fuse Class: RK5
• Element Type: Dual element, time-delay
• Body Size: 0.81 inch diameter x 5 inch length
• Mounting Type: Ferrule end x ferrule end
• Response Time: 10 seconds at 500% overload
• Body Type: Cylindrical
• Non-indicating fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-1-4/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508117
• GTIN : 00051712508117
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.148
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
