Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FRS-R-1-1/4

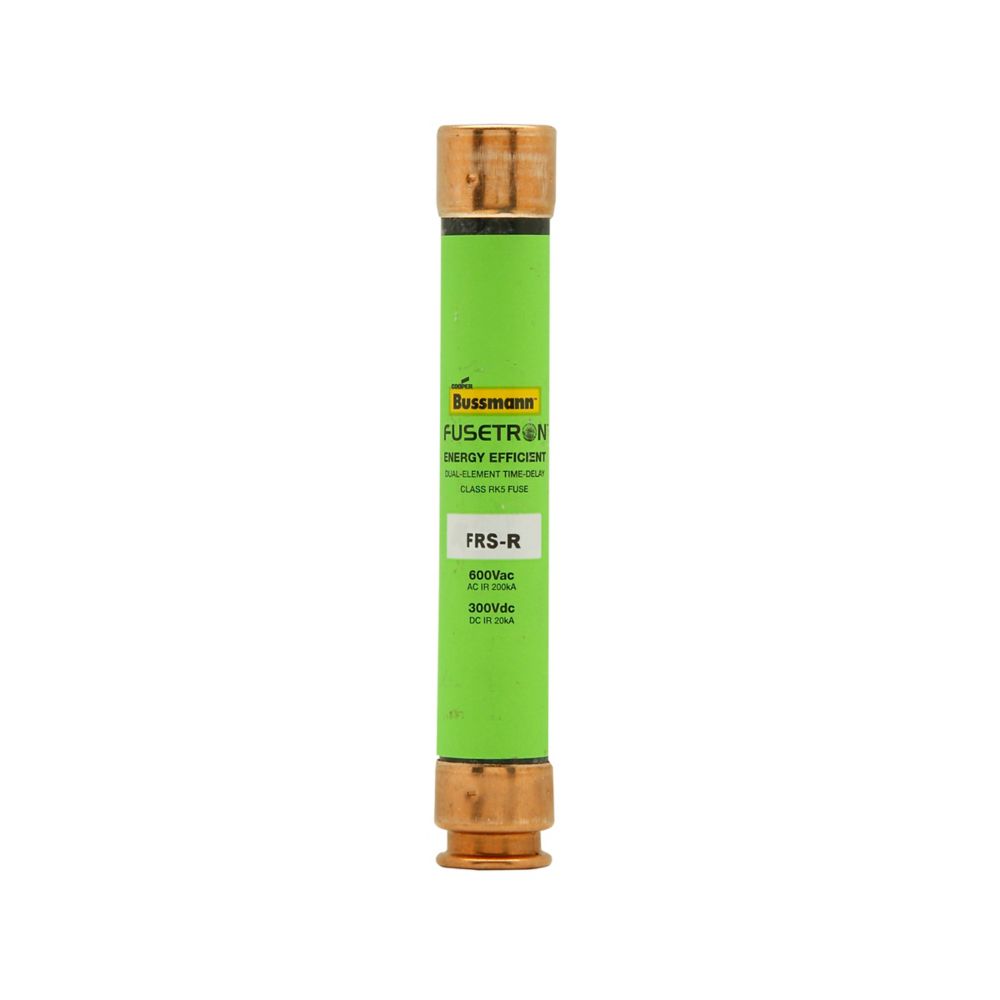

FRS-R-1-1/4 is a Bussmann FRS-R Series 1.25A 600VAC 300VDC Class RK5 time delay fuse designed for reliable circuit protection in power panelboards and industrial applications. This cartridge fuse features dual element construction for superior time-delay performance and high interrupting capacity. The FRS-R-1-1/4 fuse is non-indicating, cylindrical body, and provides excellent protection for a wide range of circuits. It is UL current limiting, Class RK5 rated, and suitable for use in 600VAC and 300VDC systems. The fuse is designed for clip termination and does not include an indicator holder.
- Amperage: 1.25A
- Voltage: 600VAC, 300VDC
- Class: RK5
- Interrupt Rating: 200kA at 600VAC
- Series: FRS-R
- Mounting Type: Clip termination
- Body Type: Cylindrical
- Indicating/Non-Indicating: Non-Indicating
- Time-Delay: 10 second minimum at 500% rated current
- UL Listed
- Frame: Standard
- Application: Power Panelboards, Industrial Circuits
Specifications
- Part Number: FRS-R-1-1/4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 051712508100
- GTIN : 00051712508100
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
