FRS-R-1-1/2 - Eaton Bussmann 1.5A 600V Class RK5 Time-Delay Fuse Dual Element

FRS-R-1-1/2

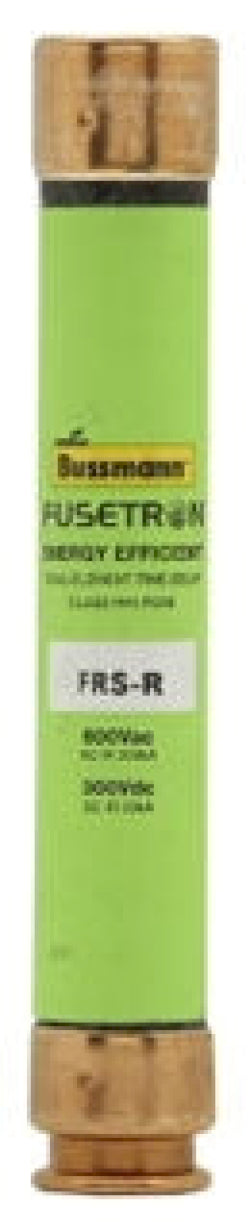

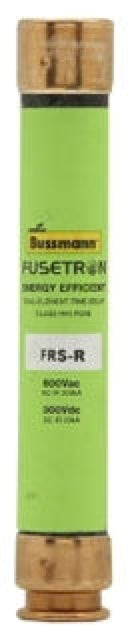

FRS-R-1-1/2 is a 1.5 amp, 600 volt Class RK5 time-delay fuse from Eaton Bussmann designed for reliable circuit protection.This dual-element, current-limiting fuse provides a minimum 10-second time delay at 500% of rated current, suitable for protecting circuits with temporary overloads. It features a 200kA interrupting rating at 600 VAC and 20kA at 300 VDC, ensuring high fault current protection. The fuse measures 0.81 inches in diameter and 5 inches in length, and is non-indicating.

Key Specifications
• Amperage: 1.5 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: RK5
• Time-Delay: Minimum 10 seconds at 500% rated current
• Interrupting Rating: 200kA RMS Sym at 600 VAC, 20kA at 300 VDC
• Poles: 1-Pole
• Fuse Length: 5 inches
• Diameter: 0.81 inches
• Type: Dual Element, Current Limiting
• Mounting: Fuse block (sold separately)
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRS-R-1-1/2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 051712507967
• GTIN : 00051712507967
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.148
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
