Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

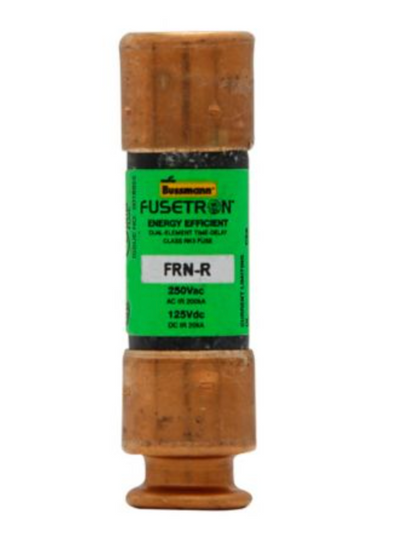

FRN30
FRN30 is a 30 amp, 250 volt, Class RK5 time delay dual element fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a 200 kA interrupting rating at 250 VAC and 20 kA at 125 VDC, with a 10 second time delay at 500% rated current. It is a non-indicating, current limiting fuse with ferrule end connections and finger safe design, suitable for holder mounting.
- Key Specifications
- Amperage: 30 A
- Voltage Rating: 250 VAC / 125 VDC
- Interrupt Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
- Fuse Class: RK5
- Time Delay: 10 seconds at 500% rated current
- Dual Element, Current Limiting
- Mounting Type: Holder
- Connection Type: Ferrule end x ferrule end
- Non-indicating
- Operating Temperature: -60°C to +100°C
- Finger Safe Design
- Certifications: CE Marked
- Part Number: FRN30
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRN
- Voltage : 250
- Amperage : 30
- Class Rating : RK5
- Barrels : 1
- Weight : 0.08
