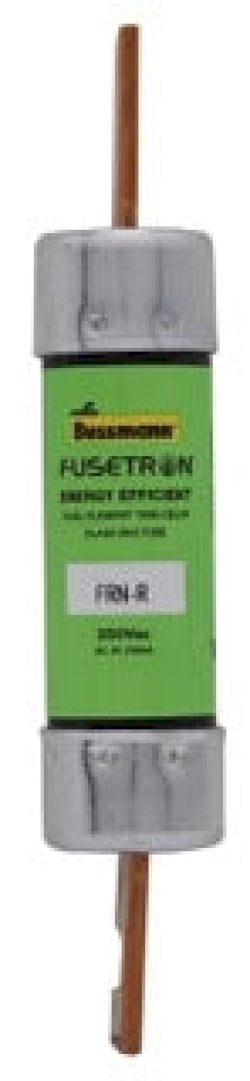

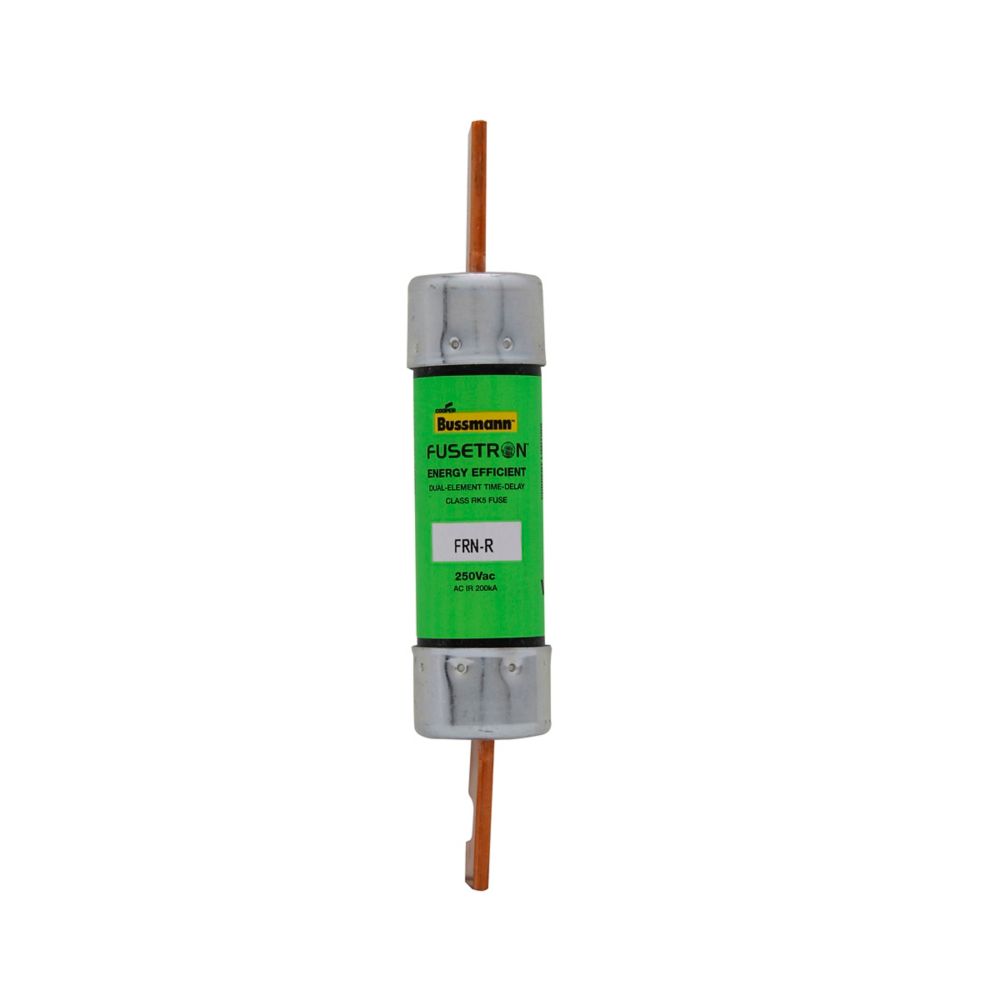

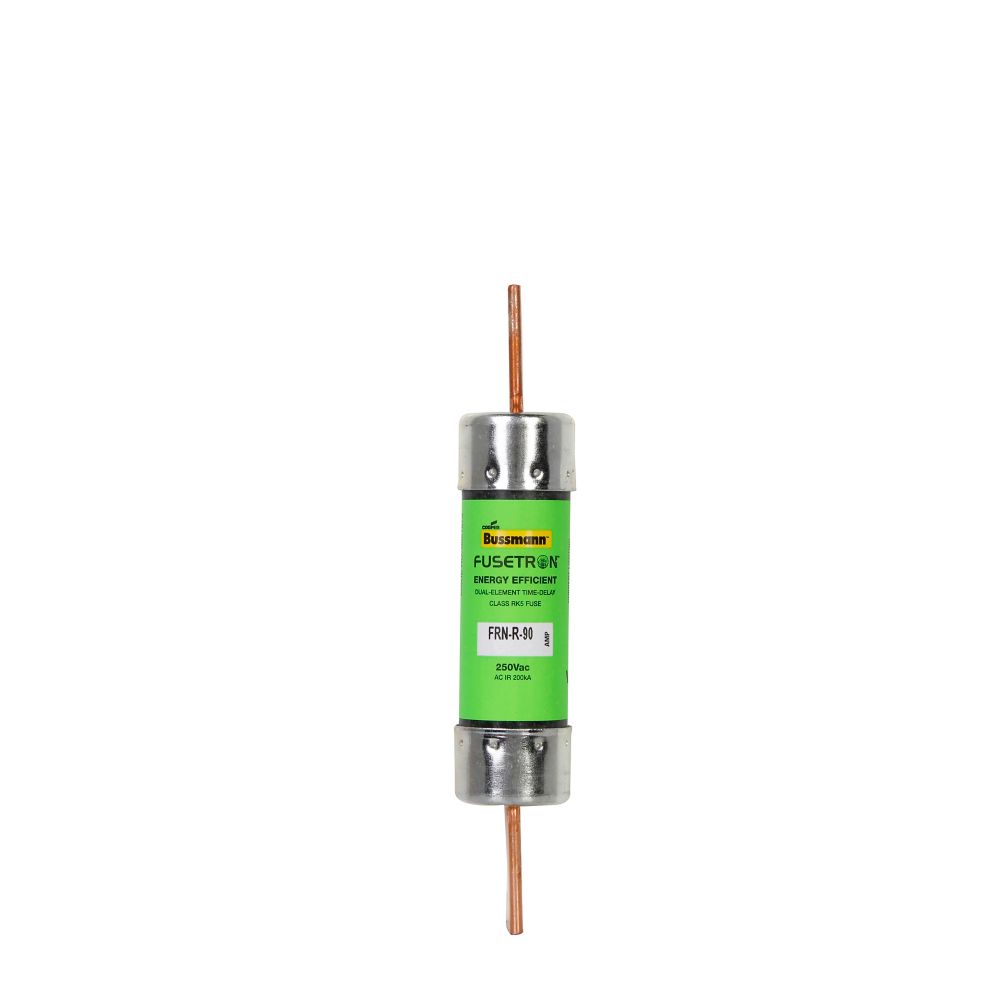

FRN-R-90 - Eaton Bussmann 90 Amp 250 Volt Class RK5 Time Delay Fuse Dual Element

FRN-R-90

FRN-R-90 is a 90 Amp, 250 Volt Class RK5 time delay fuse from Eaton Bussmann designed for reliable circuit protection.This dual element fuse features a 10-second time delay at 500% rated load, suitable for motor overload, ground fault, and short circuit protection. It has a blade terminal mounting type and a high interrupting rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC. The fuse is UL listed (UL 248-12), CSA certified, and meets Class RK5 standards, ensuring compliance and safety.

Key Specifications
• Amperage: 90 Amps
• Voltage Rating: 250 VAC / 125 VDC
• Class: RK5
• Time Delay: 10 seconds at 500% rated load
• Dual Element Construction
• Interrupting Rating: 200,000 AIC at 250 VAC, 20,000 AIC at 125 VDC
• Mounting Type: Blade Terminal
• Dimensions: 1.06 inch diameter x 5.88 inch length
• Certifications: UL Listed, CSA Certified
• Series: FRN-R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRN-R-90
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 250
• Amperage : 90
• AIC rating : 200kA@250V
• Diameter : 1.06
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712507424
• GTIN : 00051712507424
• Country of Origin : Mexico
• Dimensions : 5.88 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
