FRN-R-50 - Eaton Bussmann 50A 250Vac/125Vdc Class RK5 Time-Delay Dual Element Fuse

FRN-R-50

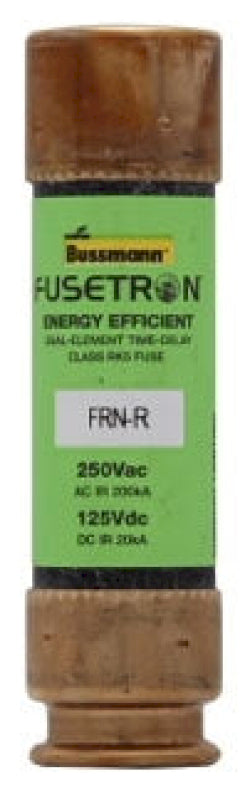

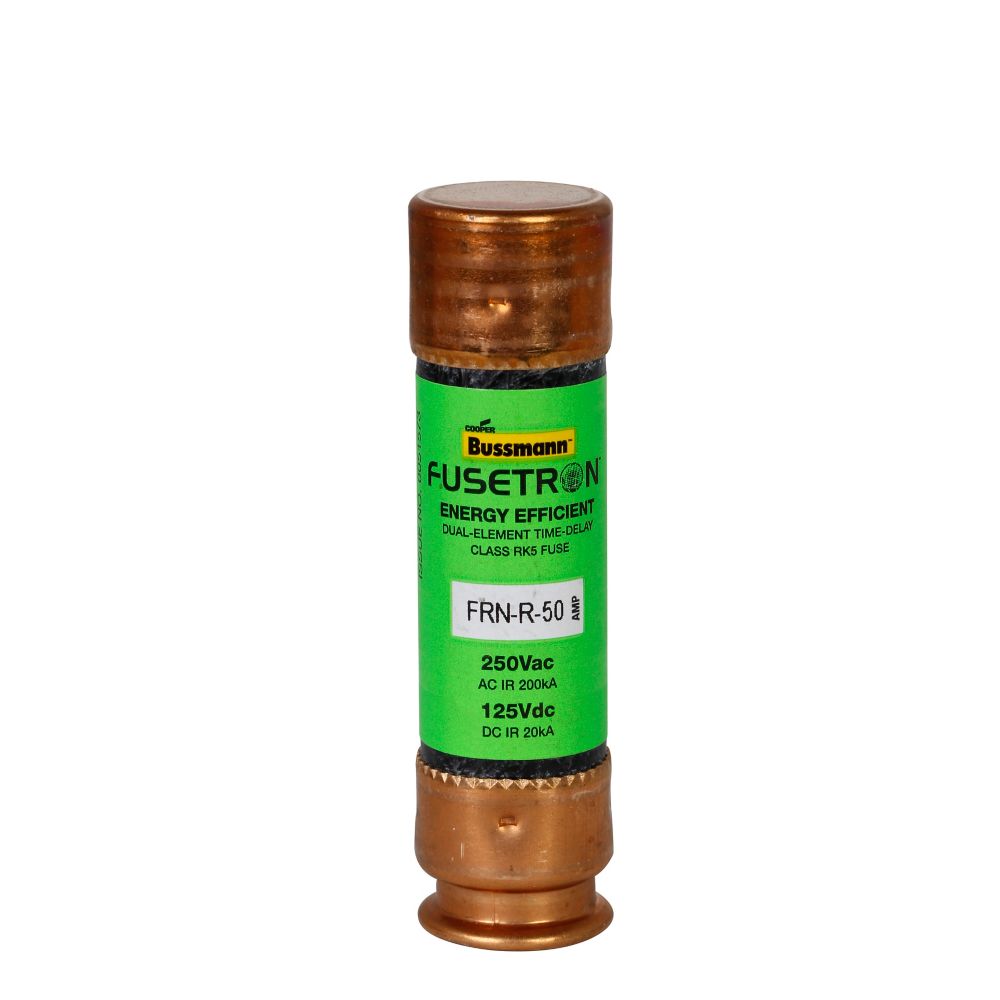

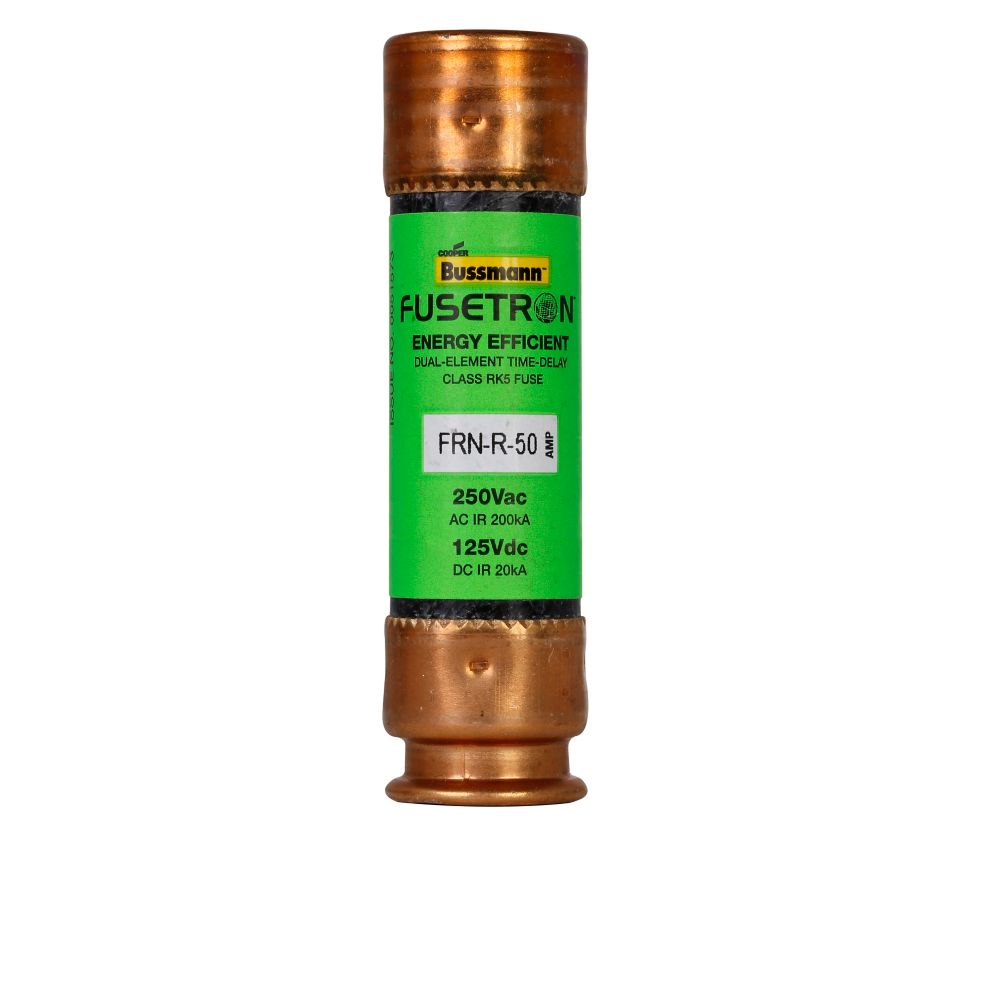

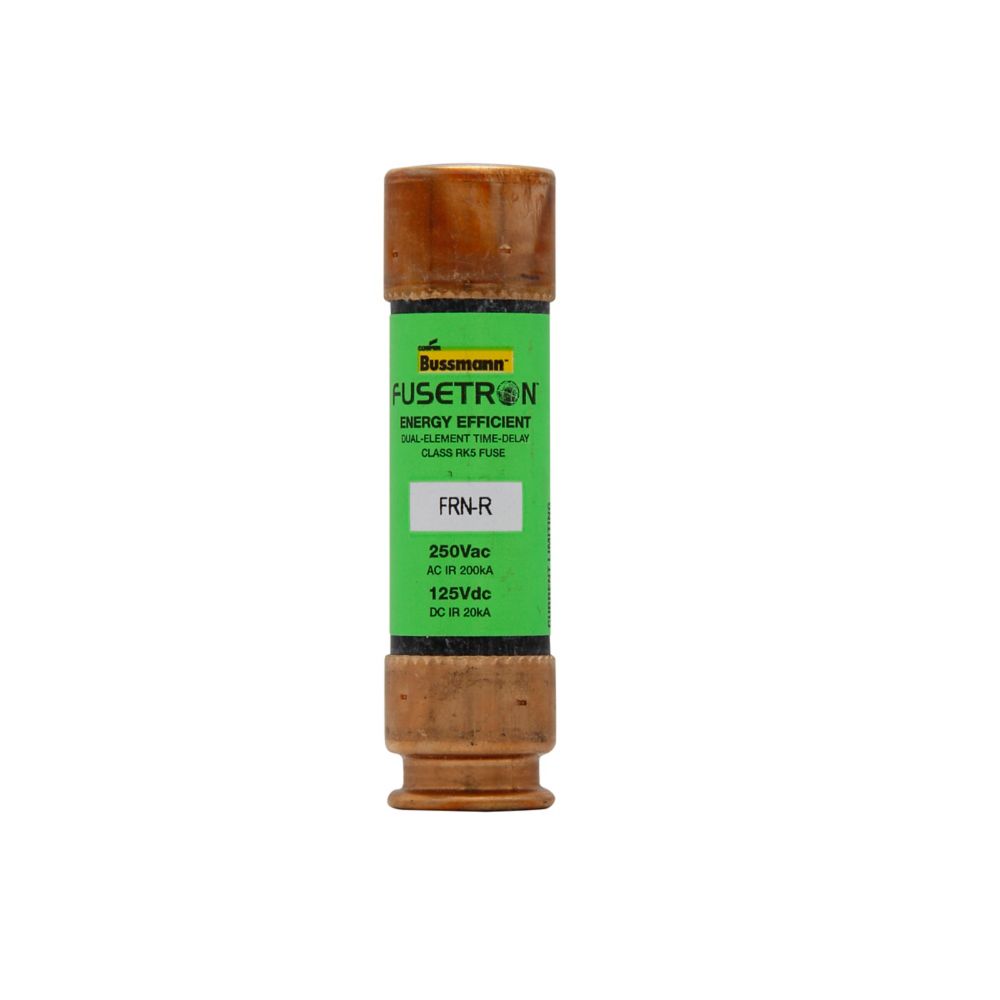

FRN-R-50 is a Bussmann series Class RK5 fuse designed for reliable circuit protection with a 50 amp rating.FRN-R-50 is a dual-element, time-delay fuse with a voltage rating of 250 Vac and 125 Vdc, providing an interrupt rating of 200 kA at 250 Vac and 20 kA at 125 Vdc. It features a non-indicating ferrule end connection and meets UL Class RK5 and CSA certifications.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 250 Vac, 125 Vdc
• Interrupt Rating: 200 kA at 250 Vac, 20 kA at 125 Vdc
• Fuse Type: Dual Element, Time Delay
• Class: RK5
• Connection: Ferrule end x ferrule end
• Response Time: 10 seconds at 500% rated current
• Physical Size: 0.81 in diameter x 3 in length
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRN-R-50
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 250
• Amperage : 50
• AIC rating : 200kA@250V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712101806
• GTIN : 00051712101806
• Country of Origin : Mexico
• Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 3.1
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
