Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

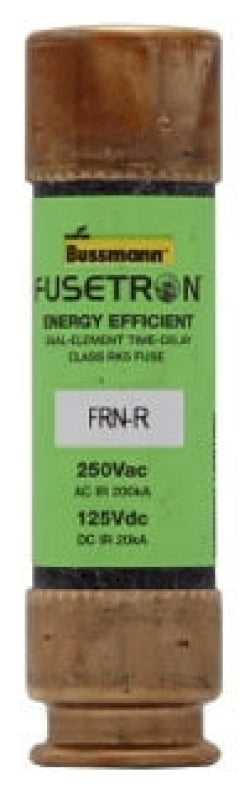

FRN-R-45
FRN-R-45 is a 45 amp, 250 volt, Class RK5 time-delay dual-element fuse from Eaton Bussmann designed for reliable circuit protection.This FRN-R series fuse features a 200kA interrupting rating at 250 Vac and 20kA at 125 Vdc, providing current limiting and time-delay characteristics ideal for circuits with high inrush currents such as motors and transformers. It is a non-indicating fuse with ferrule end connections and complies with CE standards.
- Key Specifications
- Amperage: 45 A
- Voltage Rating: 250 Vac / 125 Vdc
- Interrupting Rating: 200 kA at 250 Vac, 20 kA at 125 Vdc
- Class: RK5
- Series: FRN-R
- Fuse Type: Time-Delay, Dual Element
- Connection: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
- Response Time: 10 seconds at 500% rated current
- Certifications: CE Marked
- Dimensions: 0.81 in diameter x 3 in length
Specifications
- Part Number: FRN-R-45
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRN-R
- Voltage : 250
- Amperage : 45
- AIC rating : 200kA@250V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 051712101790
- GTIN : 00051712101790
- Country of Origin : Mexico
- Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 3.1
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
