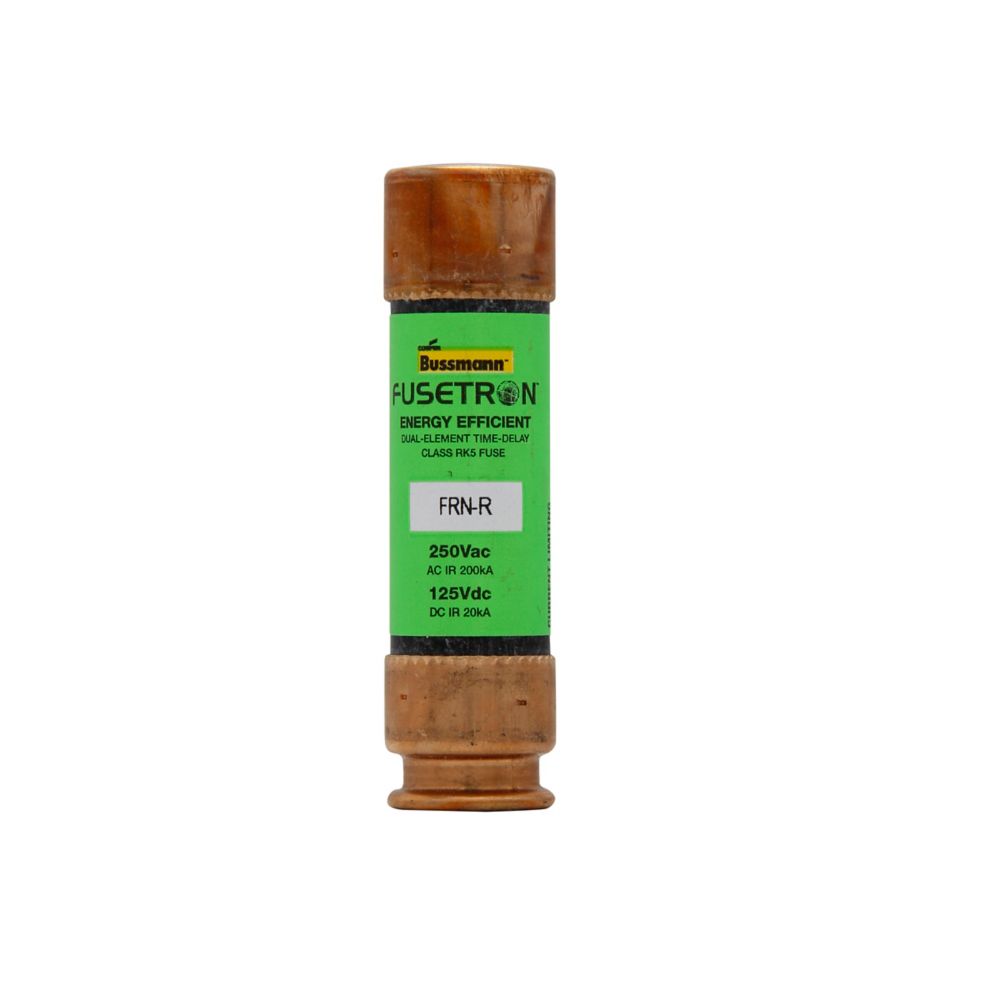

FRN-R-35 - Bussmann 35 Amp 250 Volt Class RK5 Time-Delay Dual Element Fuse

FRN-R-35

FRN-R-35 is a 35 Amp, 250 Volt AC, Class RK5 time-delay dual element fuse from Bussmann, designed for reliable circuit protection.This fuse features a 10-second time delay at 500% rated load, dual element construction for current limiting, and a voltage rating of 250 VAC/125 VDC. It has a ferrule terminal type and an interrupting rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC. The fuse is UL listed (UL 248-12), CSA certified (C22.2 No. 248.12), and meets Class RK5 standards, making it suitable for industrial and commercial applications requiring high interrupt capacity and time-delay protection.

Key Specifications
• Amperage: 35 Amps
• Voltage Rating: 250 VAC / 125 VDC
• Class: RK5
• Type: Dual Element, Time Delay
• Interrupting Rating: 200,000 AIC @ 250 VAC, 20,000 AIC @ 125 VDC
• Terminal Type: Ferrule
• Length: Approximately 3 inches
• Certifications: UL Listed, CSA Certified
• Series: FRN-R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRN-R-35
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 250
• Amperage : 35
• AIC rating : 200kA@250V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712101776
• GTIN : 00051712101776
• Country of Origin : Mexico
• Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.95
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
