FRN-R-225 - Eaton Bussmann 225A 250V AC/DC Class RK5 Time-Delay Fuse Dual Element

FRN-R-225

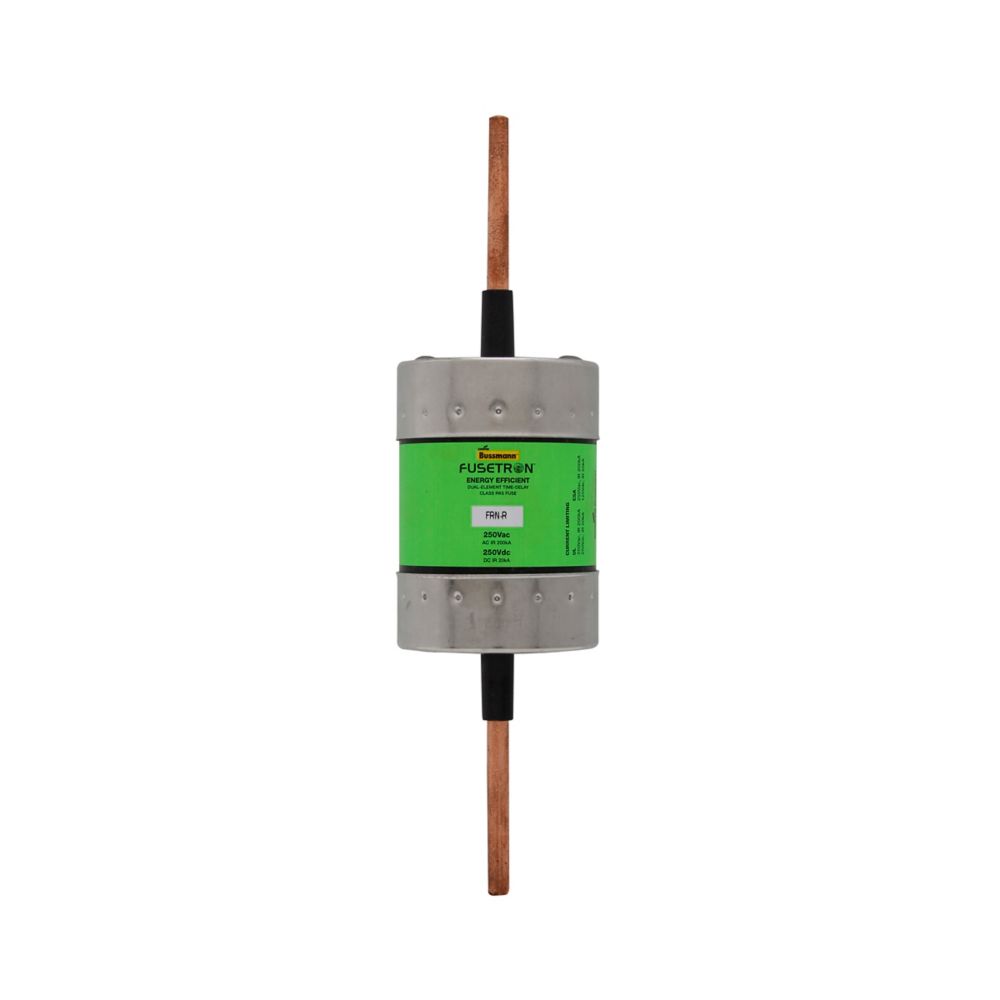

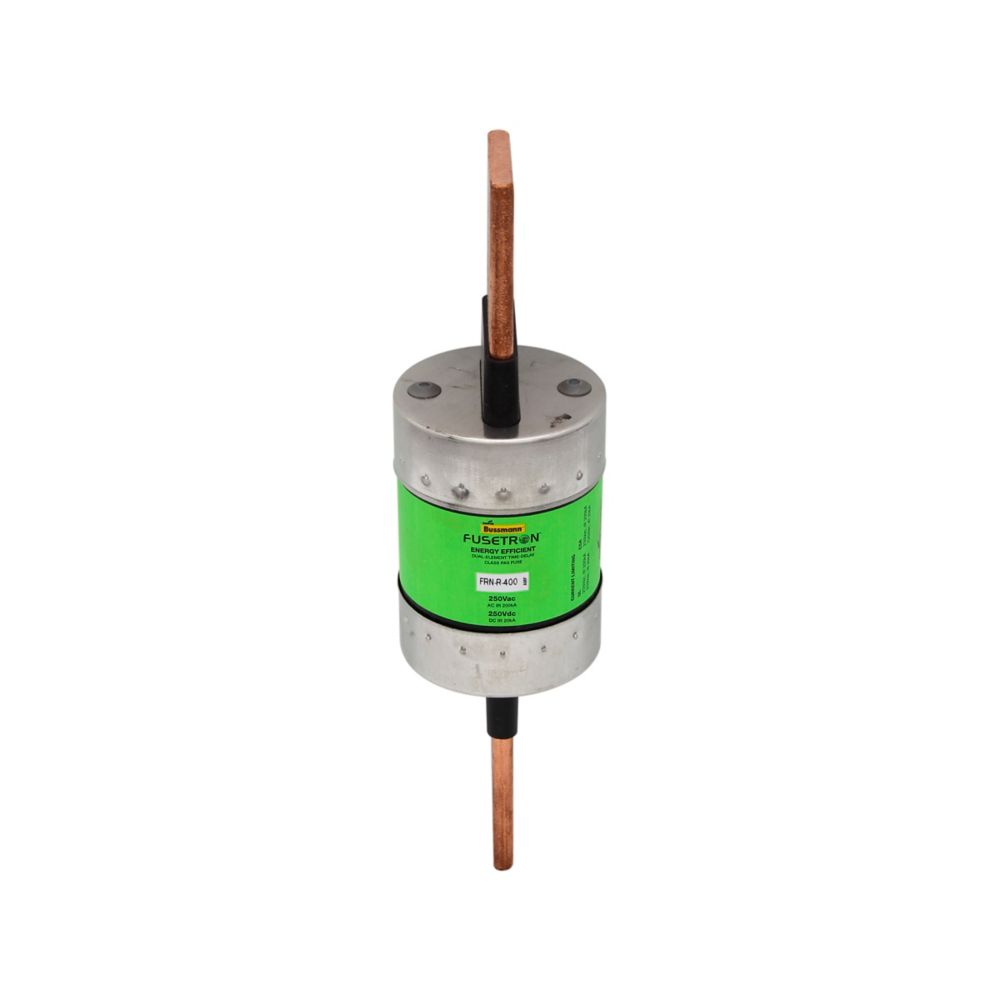

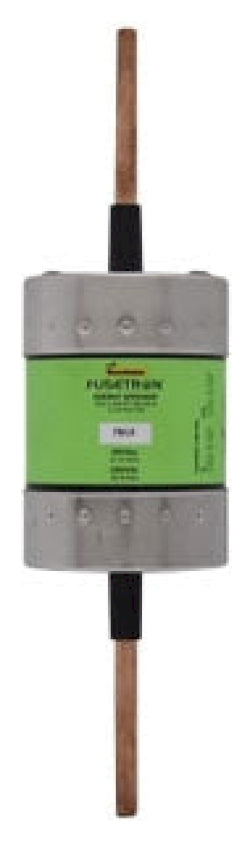

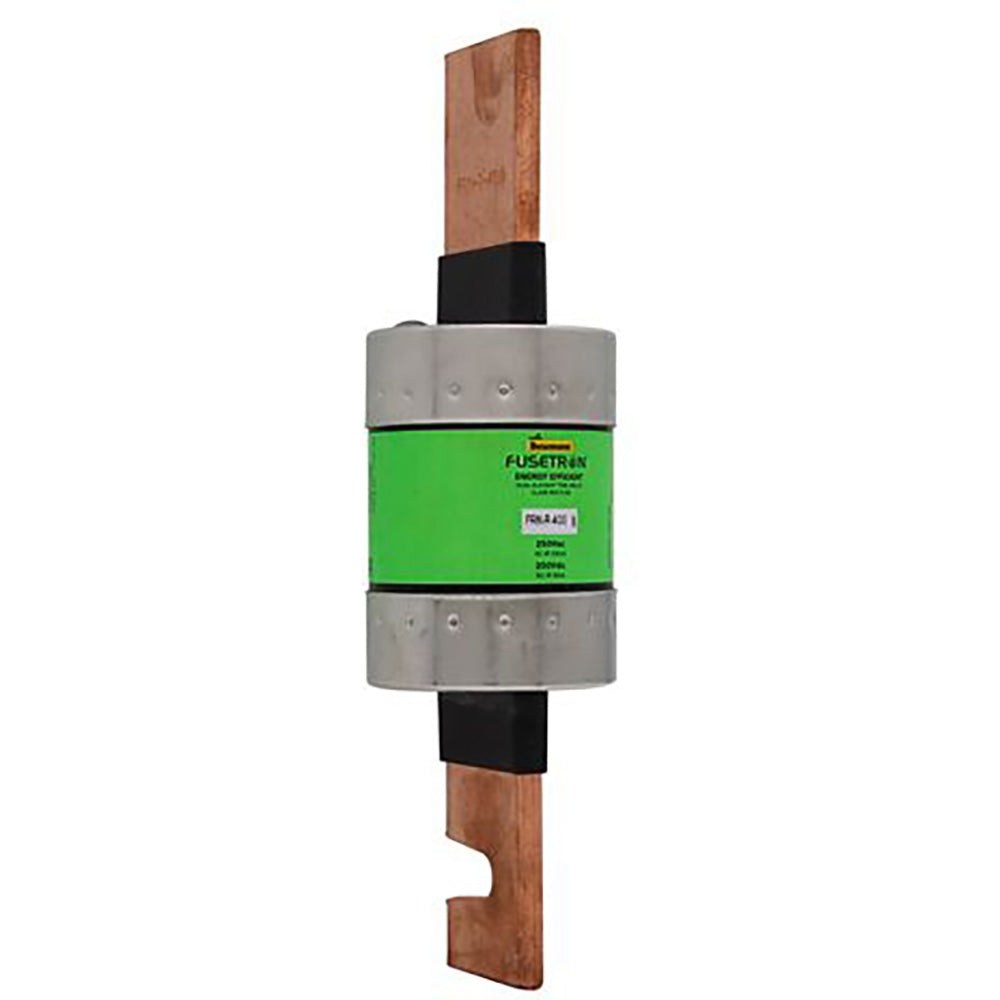

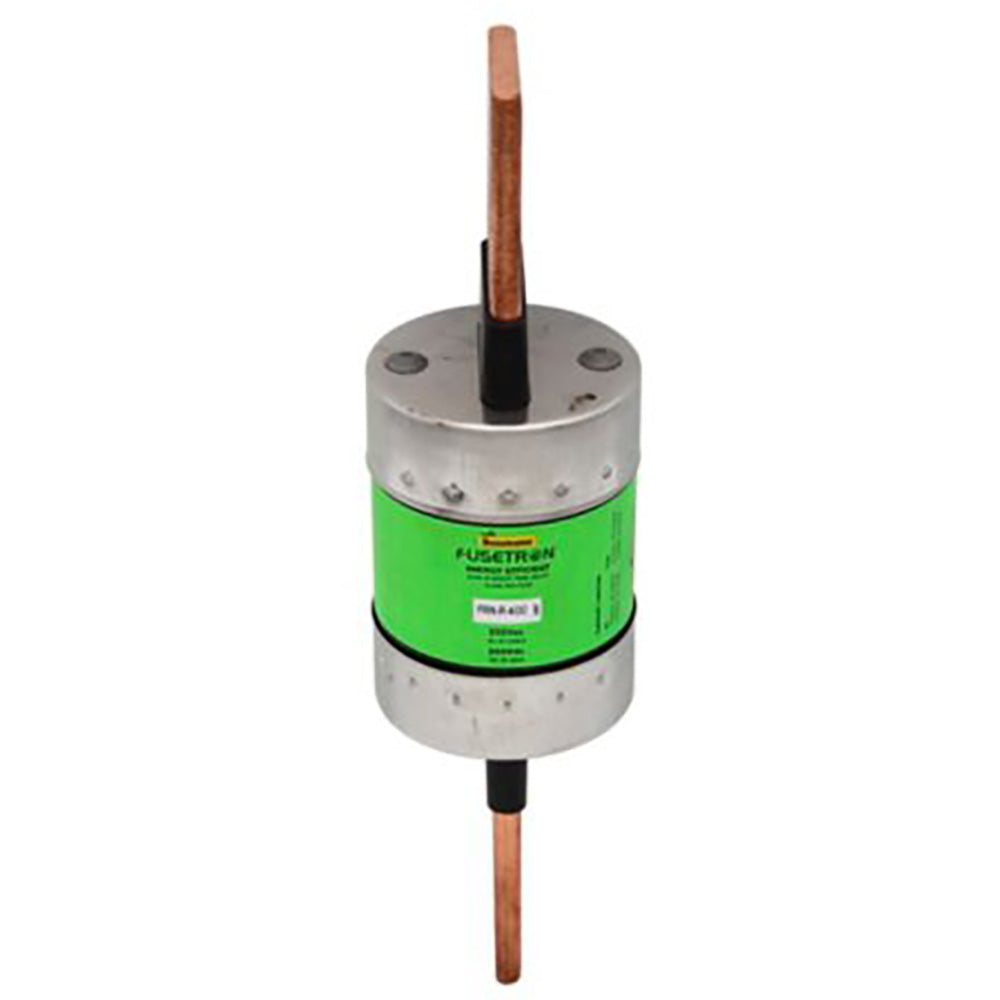

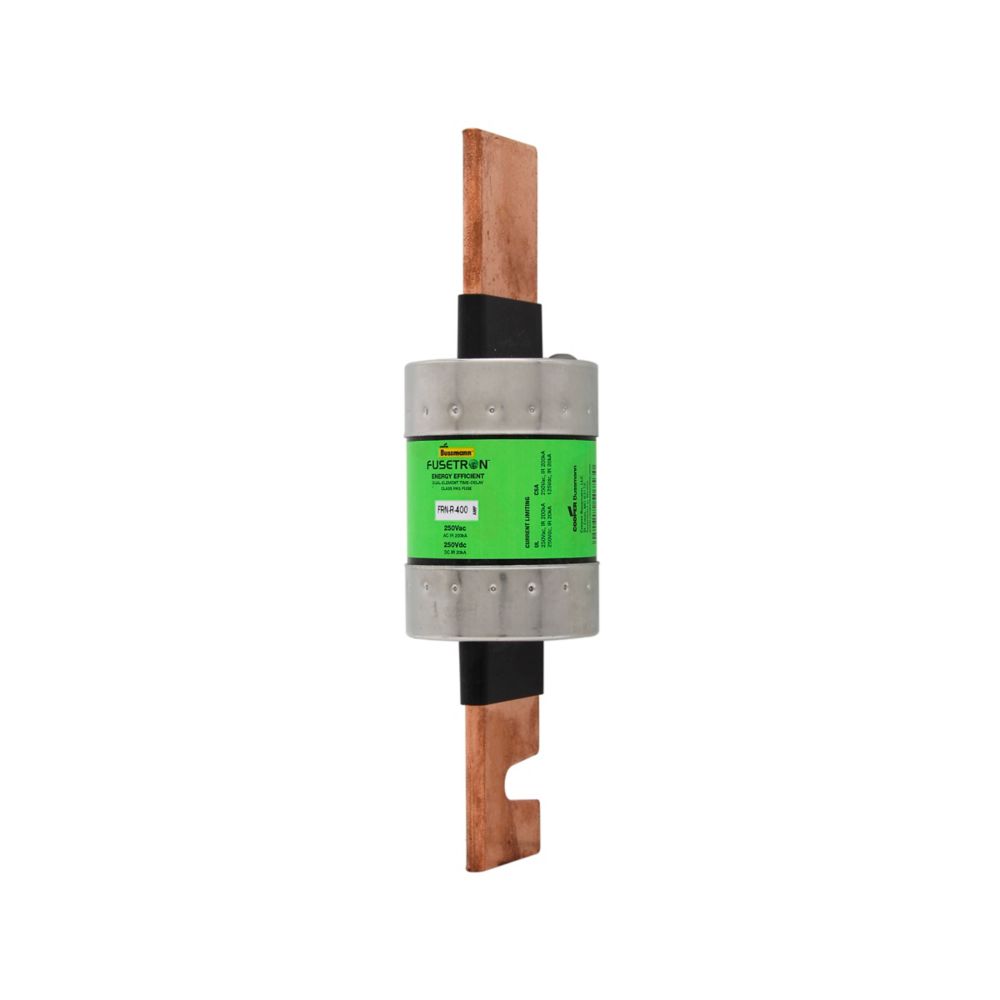

FRN-R-225 is a 225 Amp, 250 Volt AC/DC Class RK5 dual element time-delay fuse designed for motor overload and short circuit protection.This Eaton Bussmann FRN-R-225 fuse features a cartridge body type with a 10 second time delay at 500% rated current, blade terminals, and a current limiting design. It has an interrupt rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC. The fuse is UL listed, CSA certified, and helps protect motors from overloads, ground faults, and single phasing in three-phase systems.

Key Specifications
• Amperage Rating: 225 A
• Voltage Rating: 250 VAC / 125/250 VDC
• Class: RK5
• Body Type: Cartridge
• Interrupt Rating: 200,000 AIC @ 250 VAC, 20,000 AIC @ 125 VDC
• Time Delay: 10 seconds at 500% rated current
• Terminal Type: Blade
• Fuse Series: FRN-R
• Current Limiting: Yes
• Certifications: UL Listed, CSA Certified
• Mounting Type: Holder
• Material: Fiberglass

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRN-R-225
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 250
• Amperage : 225
• AIC rating : 20kA@250Vdc
• Diameter : 2.38
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712507493
• GTIN : 00051712507493
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
