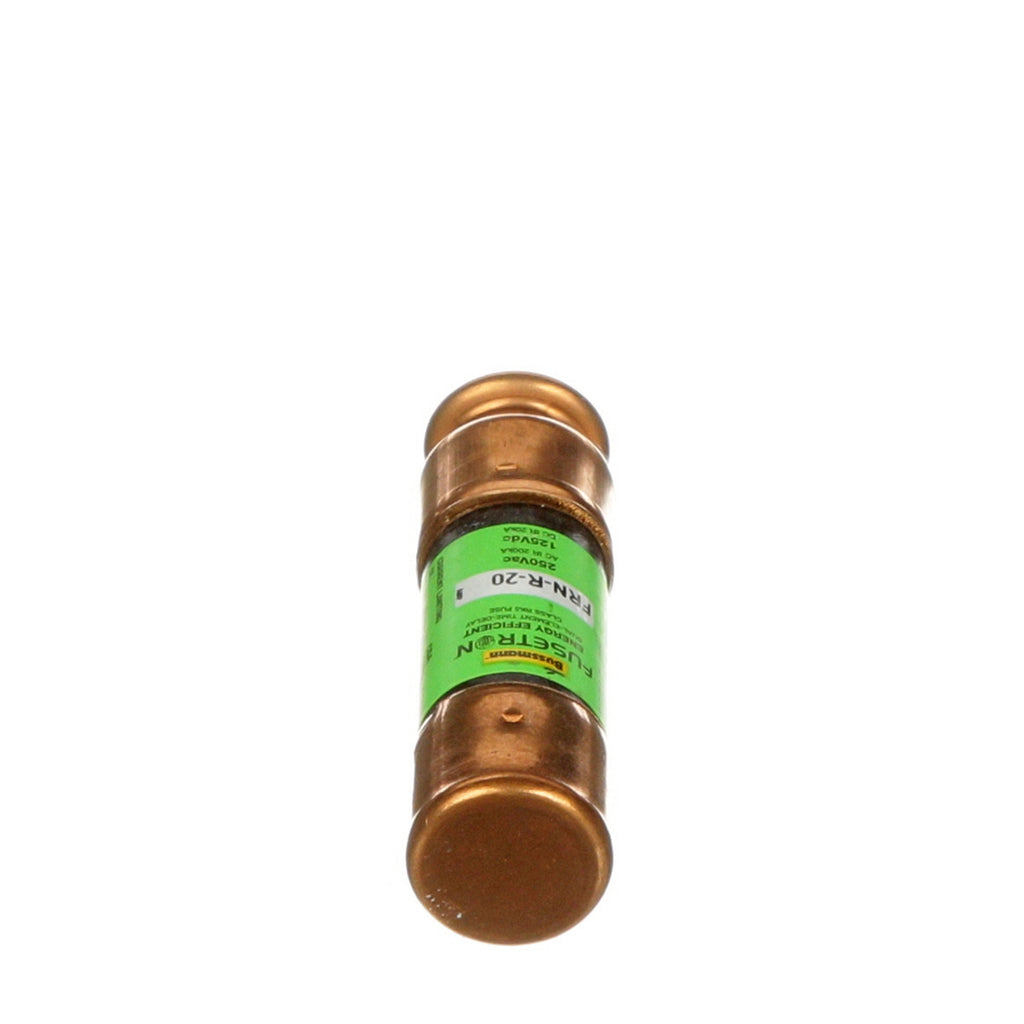

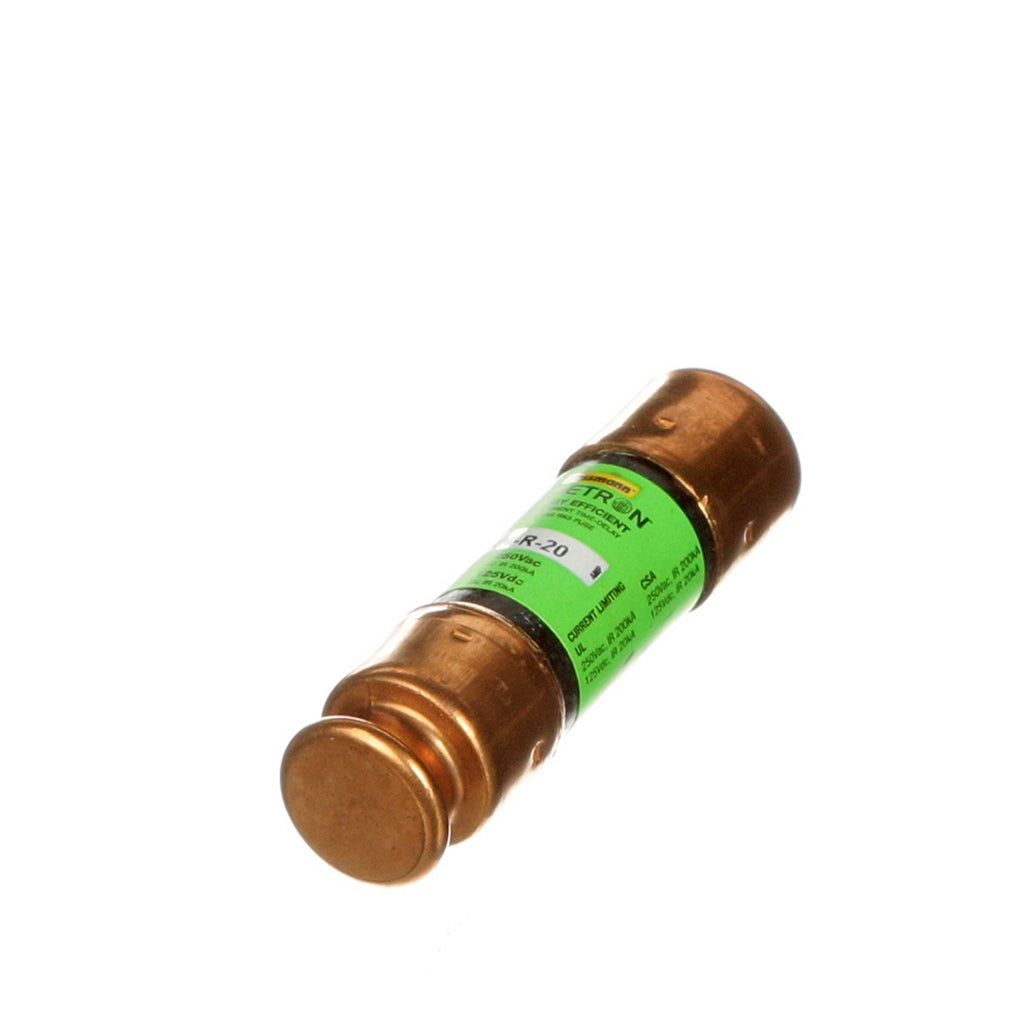

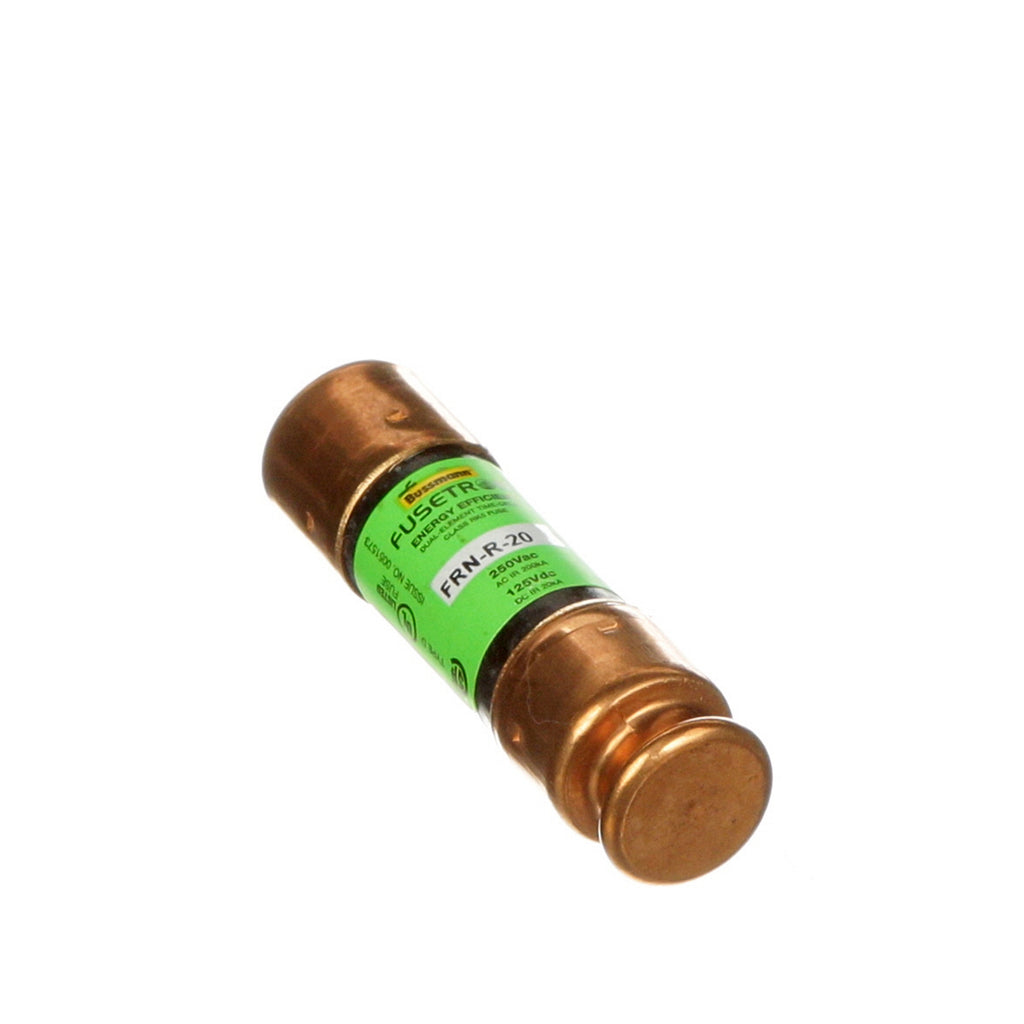

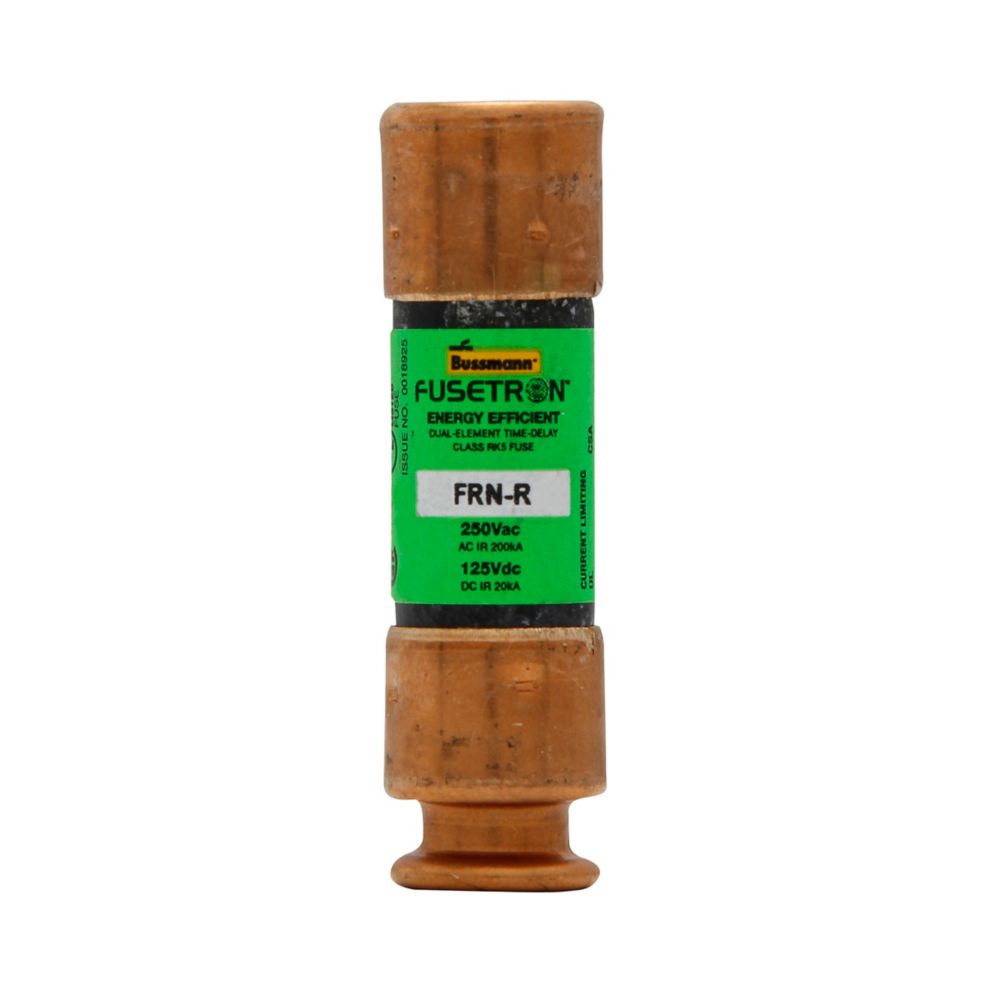

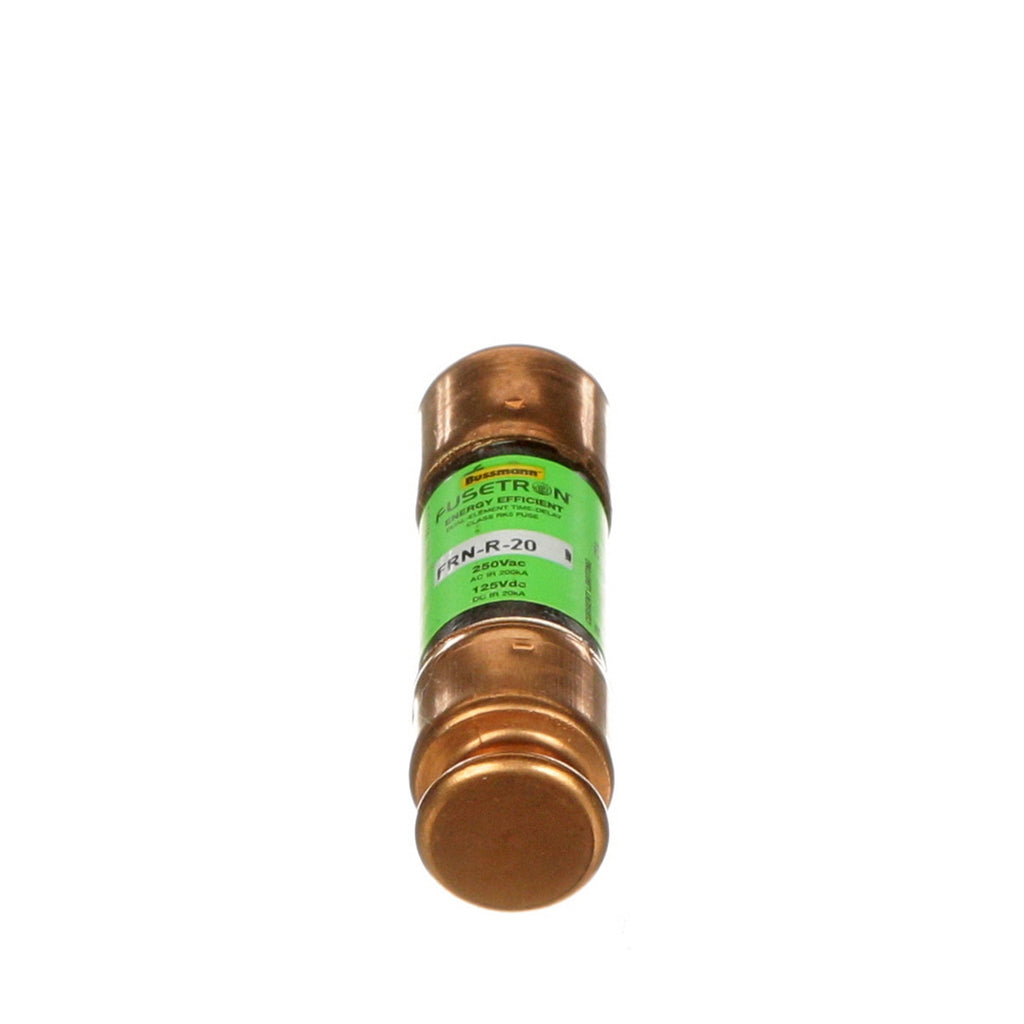

FRN-R-20 - Eaton Bussmann 20 Amp 250V AC Time Delay Class RK5 Fuse

FRN-R-20

FRN-R-20 is a 20 ampere, 250 volt AC time delay fuse from Eaton Bussmann designed for reliable circuit protection.This FRN-R series fuse features a dual element, current-limiting design with a 10-second time delay at 500% rated current, suitable for protecting branch circuits. It has a high interrupting rating of 200,000 amperes at 250 VAC and 20,000 amperes at 125 VDC, meeting UL Class RK5 standards. The fuse is a cartridge body type with no indicator holder and clip termination, ensuring easy mounting and robust performance.

Key Specifications
• Amperage: 20 A
• Voltage Rating: 250 VAC, 125 VDC
• Fuse Class: RK5
• Time Delay: 10 seconds minimum at 500% rated current
• Interrupting Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
• Poles: Single pole (cartridge fuse)
• Mounting Type: Cartridge body, clip termination
• Series: FRN-R
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRN-R-20
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 250
• Amperage : 20
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712101752
• GTIN : 00051712101752
• Country of Origin : Mexico
• Dimensions : 1.56 in x 1.56 in x 1.56 in (Length/Depth x Height x Width)
• Weight : 0.9
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
