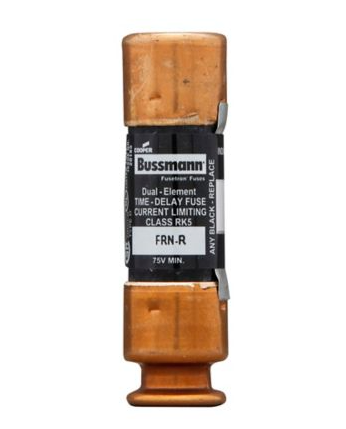

FRN-R-17-1/2ID - Eaton 17.5A 250Vac 125Vdc Class RK5 Time-Delay Dual Element Fuse

FRN-R-17-1/2ID

FRN-R-17-1/2ID is an Eaton Bussmann series Class RK5 time-delay dual element fuse designed for reliable circuit protection.This fuse features a 17.5 ampere rating with a voltage rating of 250 Vac and 125 Vdc. It provides current-limiting protection with a high interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc. The fuse is dual-element and time-delay, allowing it to withstand temporary overloads and surges while protecting against short circuits. It has ferrule end connections and is non-indicating. The FRN-R series is UL listed and CE marked, meeting industry safety standards.

Key Specifications
• Amperage Rating: 17.5 A
• Voltage Rating: 250 Vac, 125 Vdc
• Interrupting Rating: 200 kA at 250 Vac, 20 kA at 125 Vdc
• Class: RK5
• Fuse Type: Time-delay, dual element
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Compliance: UL Listed, CE Marked
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRN-R-17-1/2ID
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 250
• Amperage : 17
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 051712204385
• GTIN : 00051712204385
• Country of Origin : Mexico
• Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.8
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
