FRN-R-15 - Eaton Bussmann 15A 250V Dual Element Class RK5 Time Delay Fuse

FRN-R-15

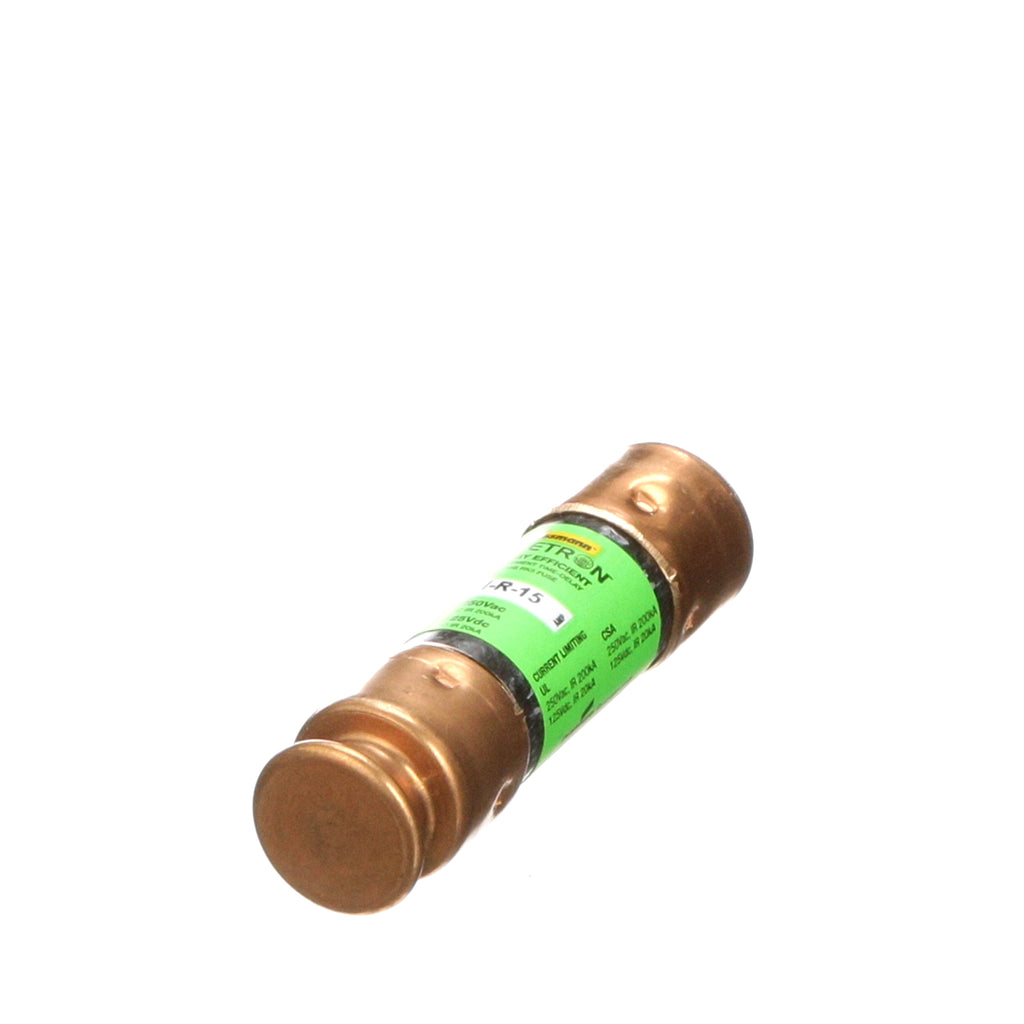

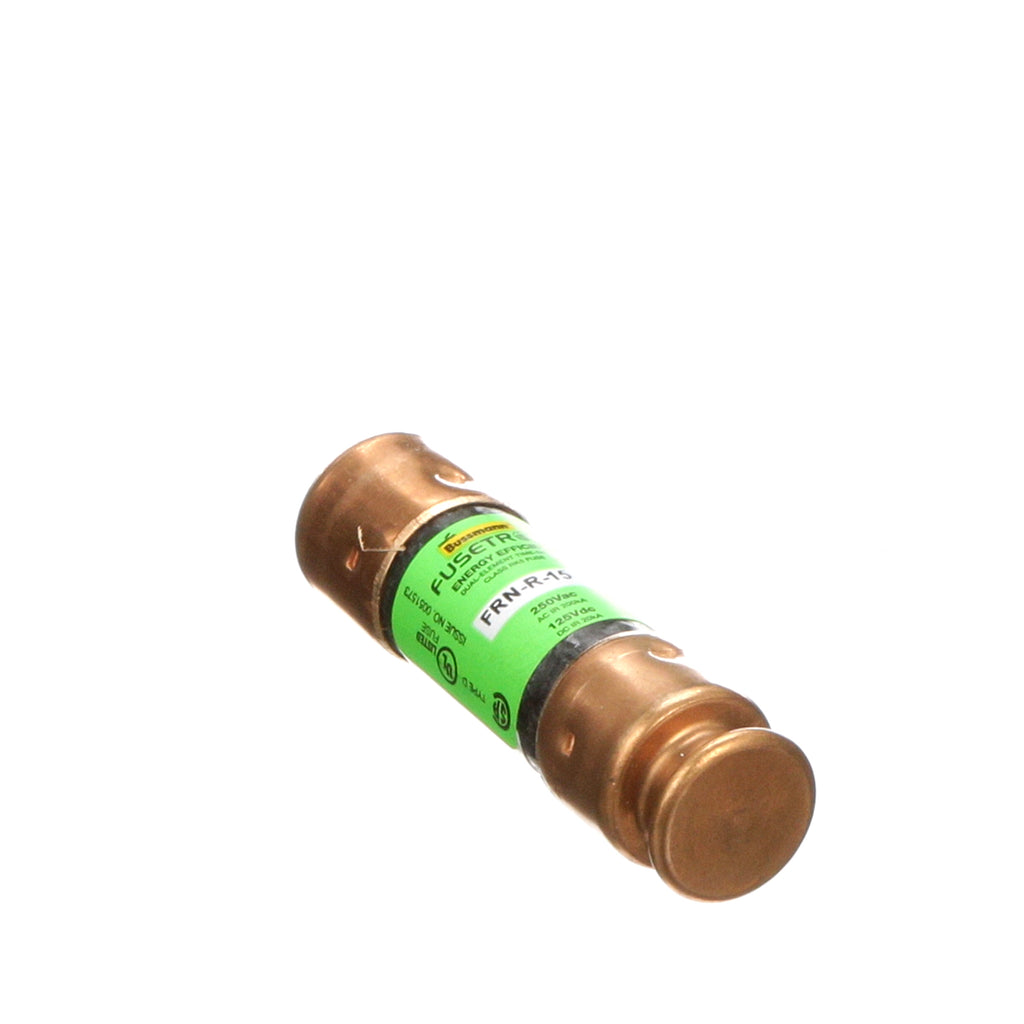

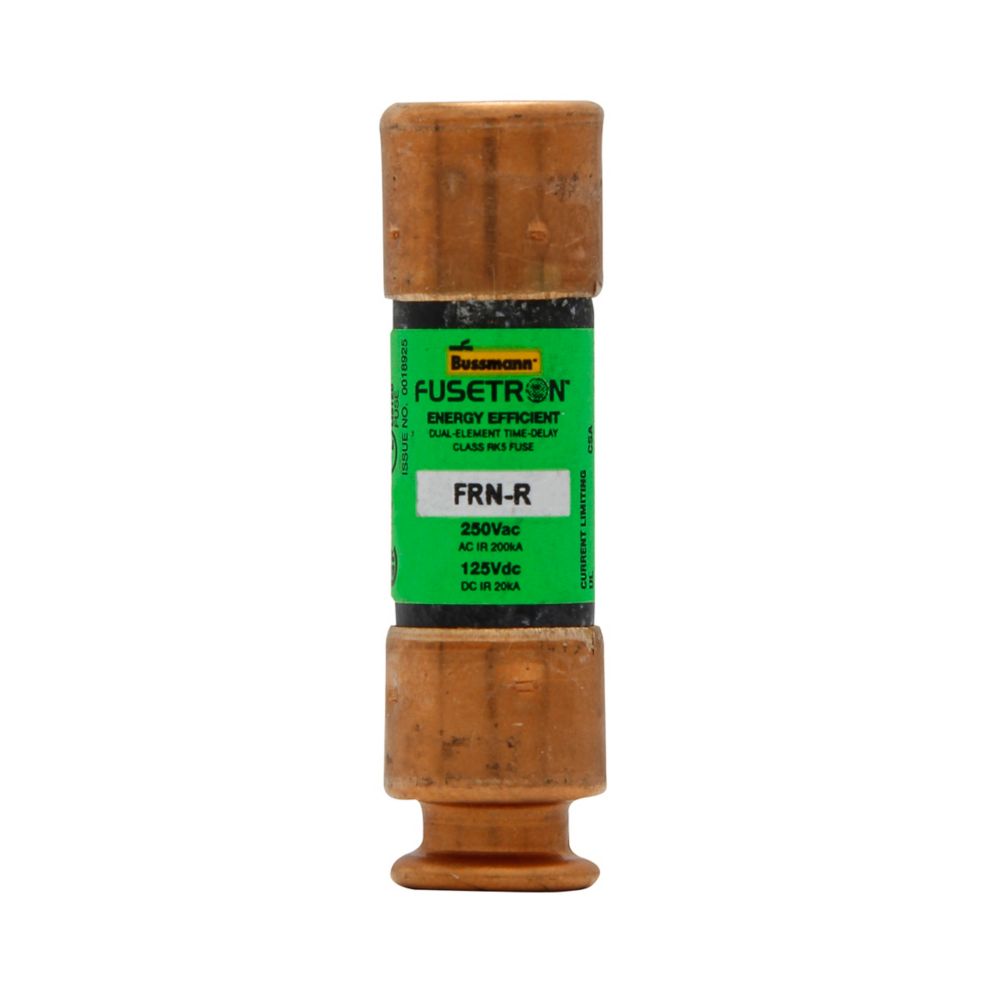

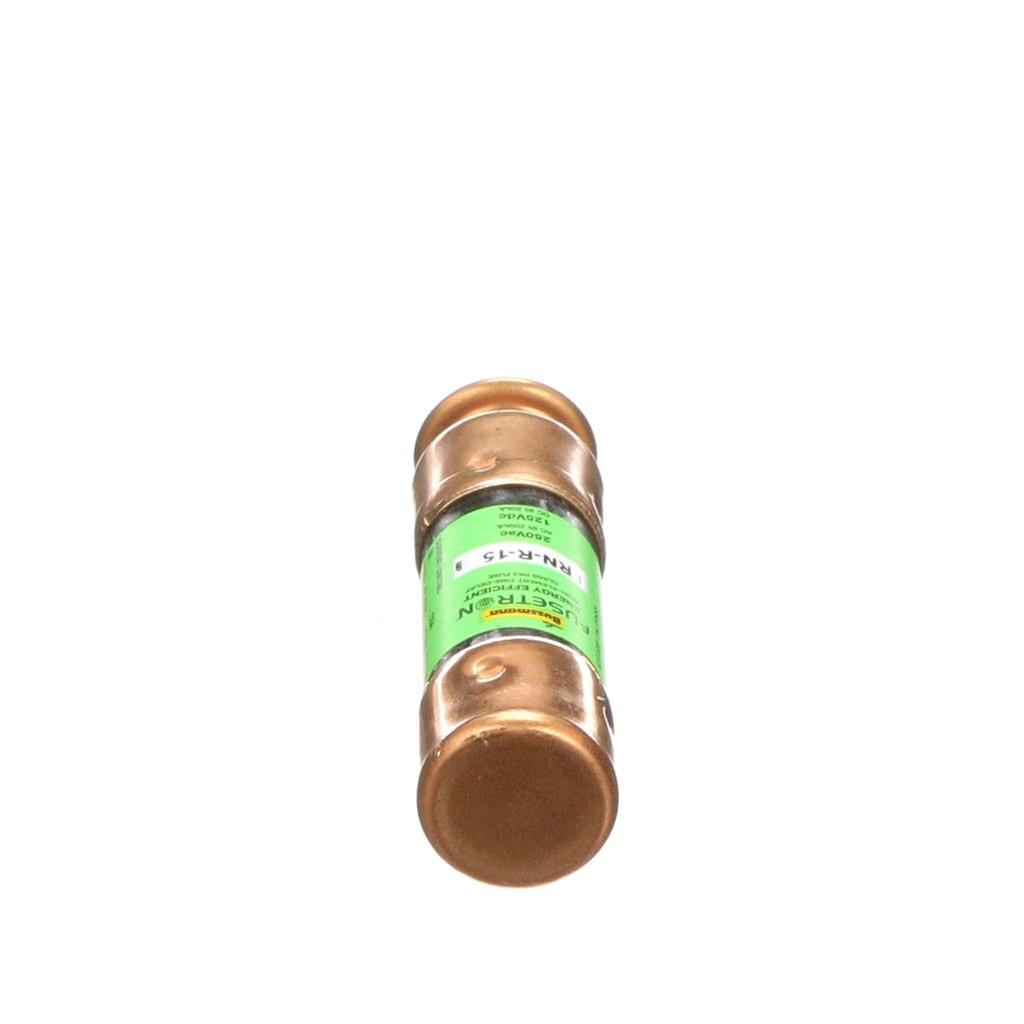

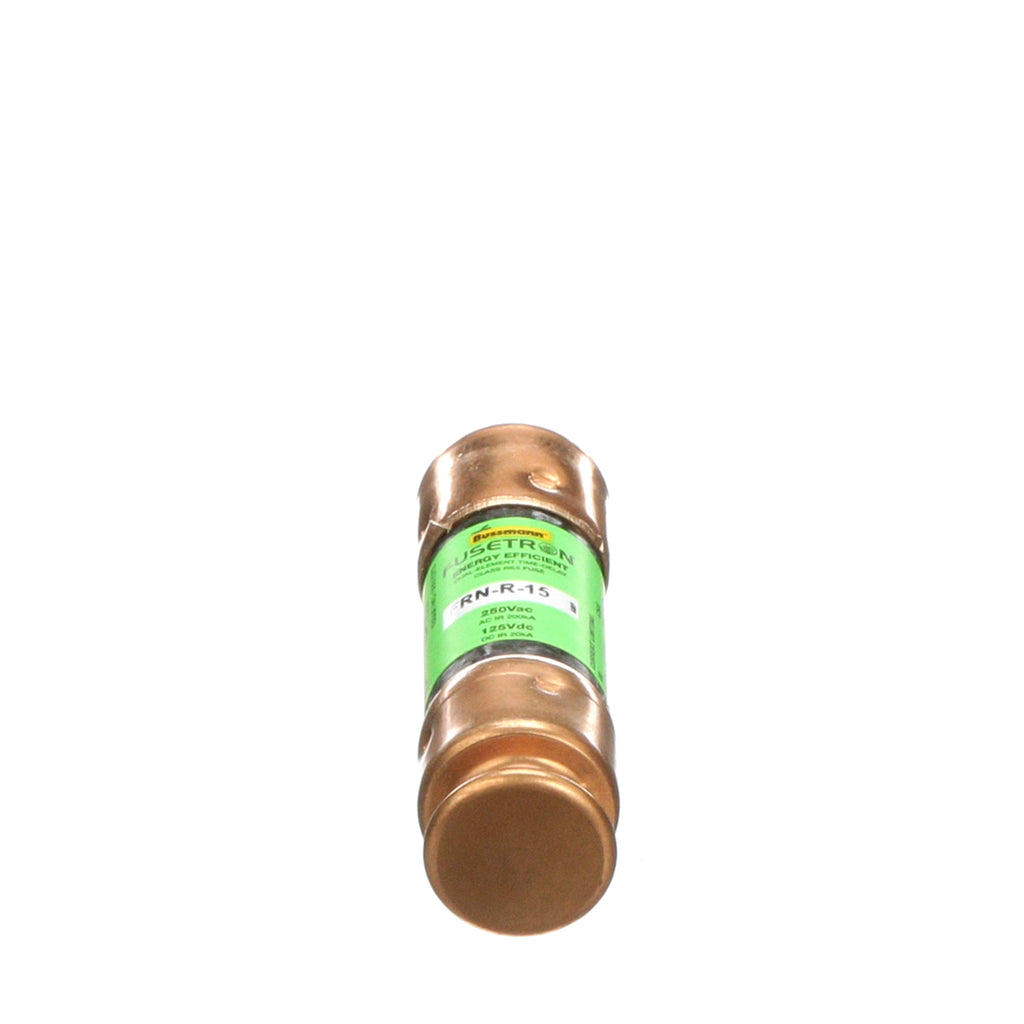

FRN-R-15 is a 15 amp, 250 volt dual element time delay fuse from Eaton Bussmann designed for reliable circuit protection.This Class RK5 fuse features a 200 kA interrupt rating at 250 VAC and 20 kA at 125 VDC, with a ferrule end x ferrule end connection and non-indicating design. It provides 8 to 10 seconds time delay at 500% overload, suitable for branch circuit protection requiring high interrupting capacity and time delay characteristics.

• Amperage: 15 A
• Voltage Rating: 250 VAC, 125 VDC
• Interrupt Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
• Class: RK5
• Time Delay: 8-10 seconds at 500% overload
• Fuse Type: Dual Element, Current Limiting
• Connection: Ferrule end x ferrule end
• Poles: Dual
• Non-indicating
• Dimensions: 0.56 in diameter x 2 in length
• Certifications: UL Listed, CSA Certified, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRN-R-15
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 250
• Amperage : 15
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712101745
• GTIN : 00051712101745
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
