FRN-R-100 - Eaton Bussmann 100A 250V AC Class RK5 Time-Delay Dual Element Fuse

FRN-R-100

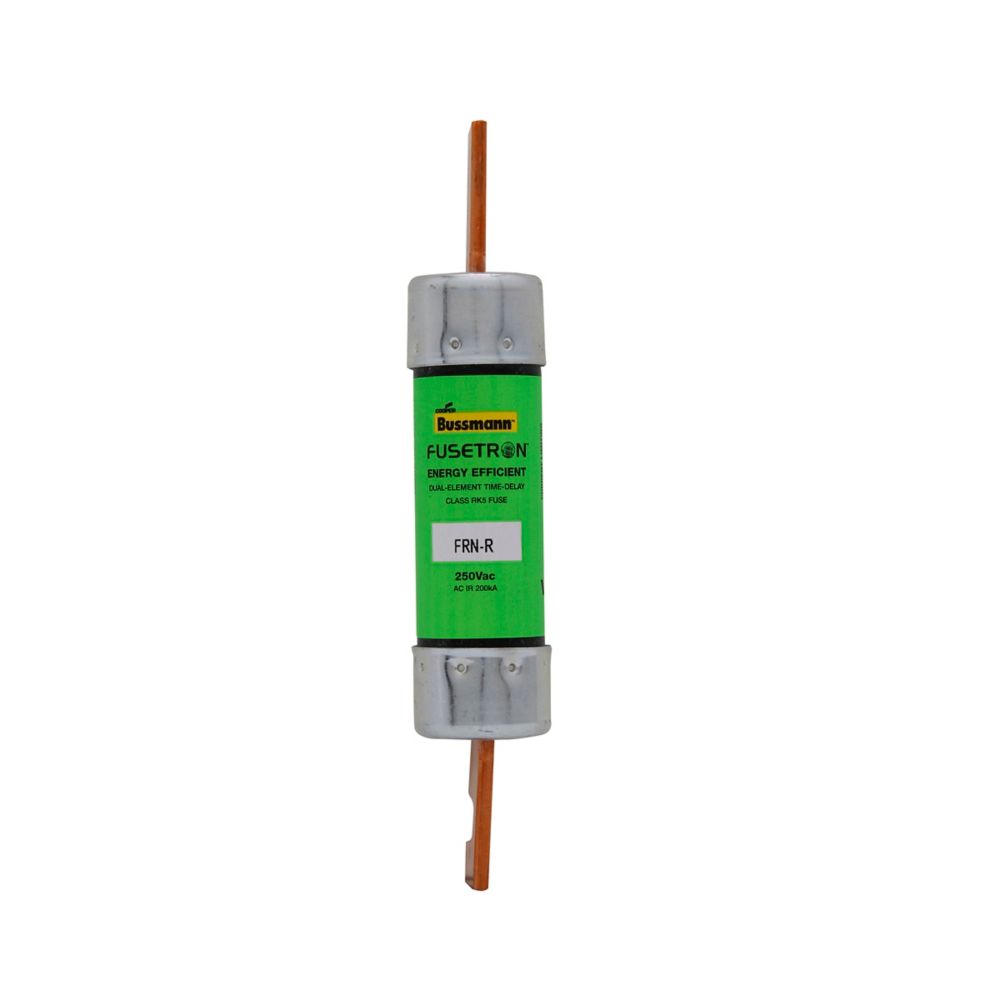

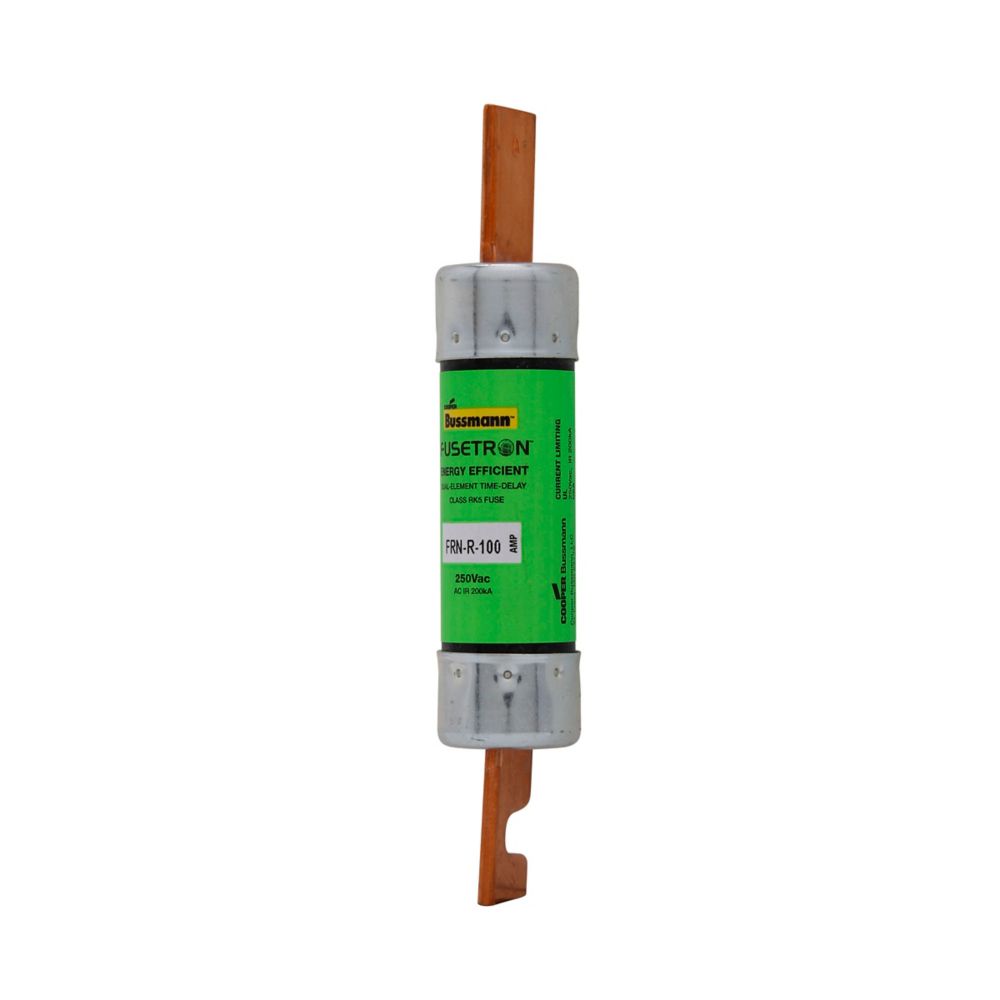

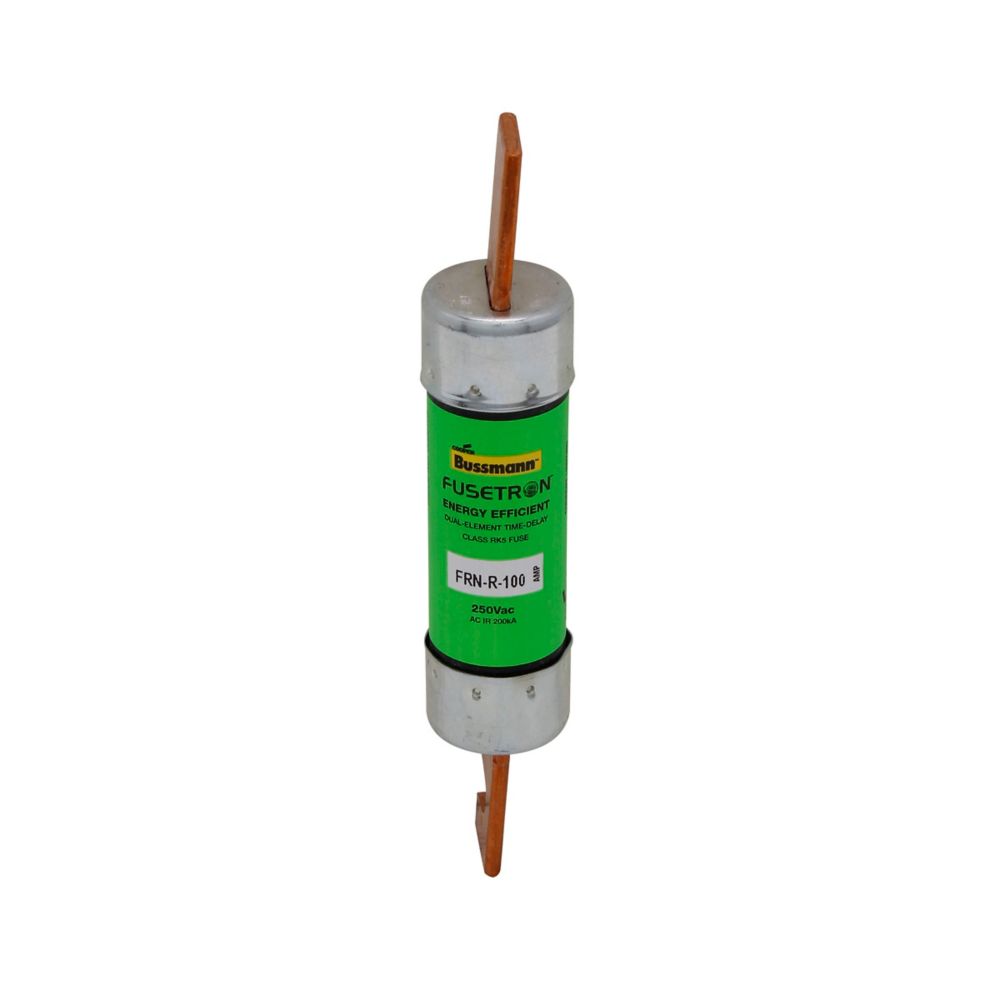

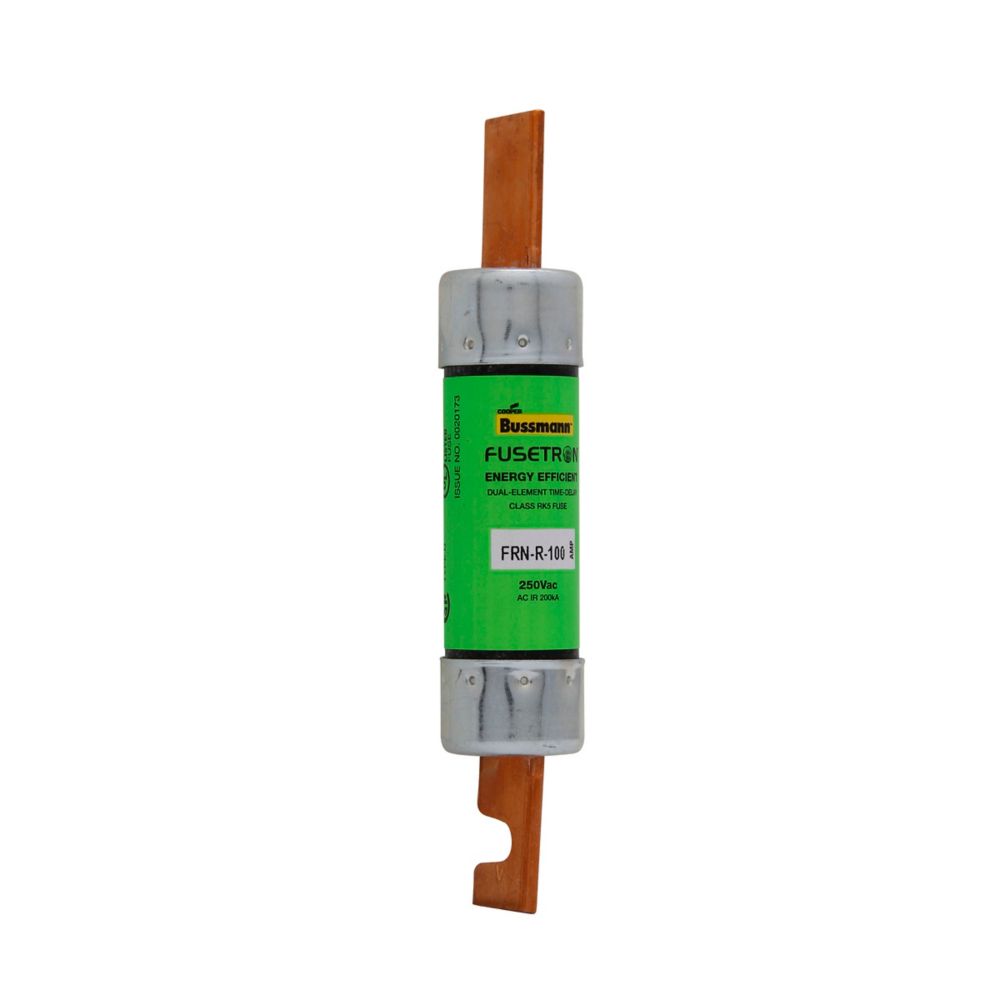

FRN-R-100 is a 100 amp, 250 volt AC Class RK5 time-delay dual element fuse from Eaton Bussmann series.This FRN-R-100 fuse features a dual-element, current-limiting design with a time-delay response of 10 seconds minimum at 500% rated current. It has an interrupting rating of 200 kA at 250 VAC and 20 kA at 125 VDC, making it suitable for protecting circuits in power panel boards and motor control centers. The fuse is non-indicating with blade end connections and is UL Listed, CSA Certified, and CE Marked.

Key Specifications
• Amperage Rating: 100 A
• Voltage Rating: 250 VAC, 125 VDC
• Interrupting Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
• Fuse Class: RK5
• Time-Delay: 10 seconds minimum at 500% rated current
• Dual Element, Current Limiting
• Connection Type: Blade end x blade end
• Non-indicating Fuse
• Certifications: UL Listed, CSA Certified, CE Marked
• Physical Size: Approx. 1.06 in diameter x 5.88 in length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRN-R-100
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 250
• Amperage : 100
• AIC rating : 200kA@250V
• Diameter : 1.06
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 051712101851
• GTIN : 00051712101851
• Country of Origin : Mexico
• Dimensions : 2.1 in x 0.54 in x 0.54 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
