FRN-R-10 - Bussmann, Cooper Bussmann, Eaton 10 Amp 250VAC/125VDC Class RK5 Dual-Element Time-Delay Fuse, Fusetron Series, 200kA Interrupt Rating, Ferrule Mount

FRN-R-10

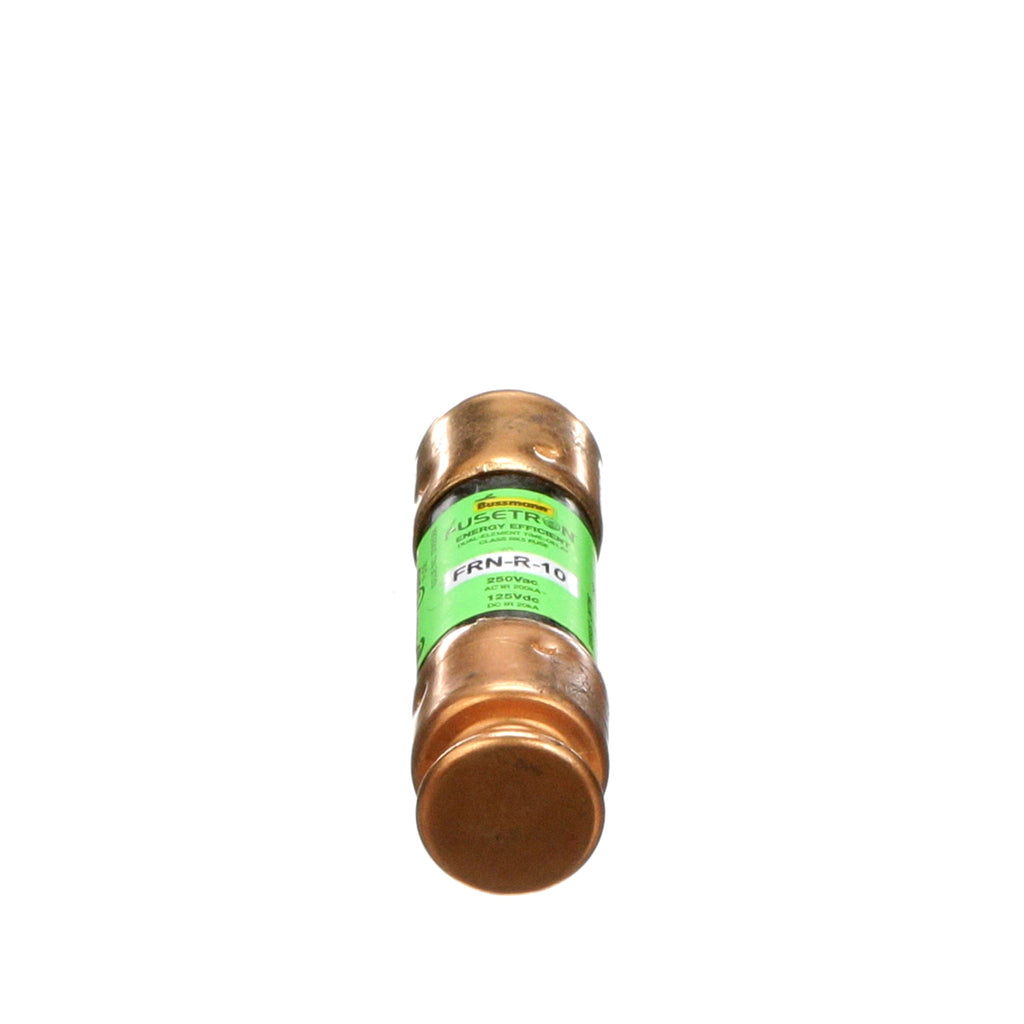

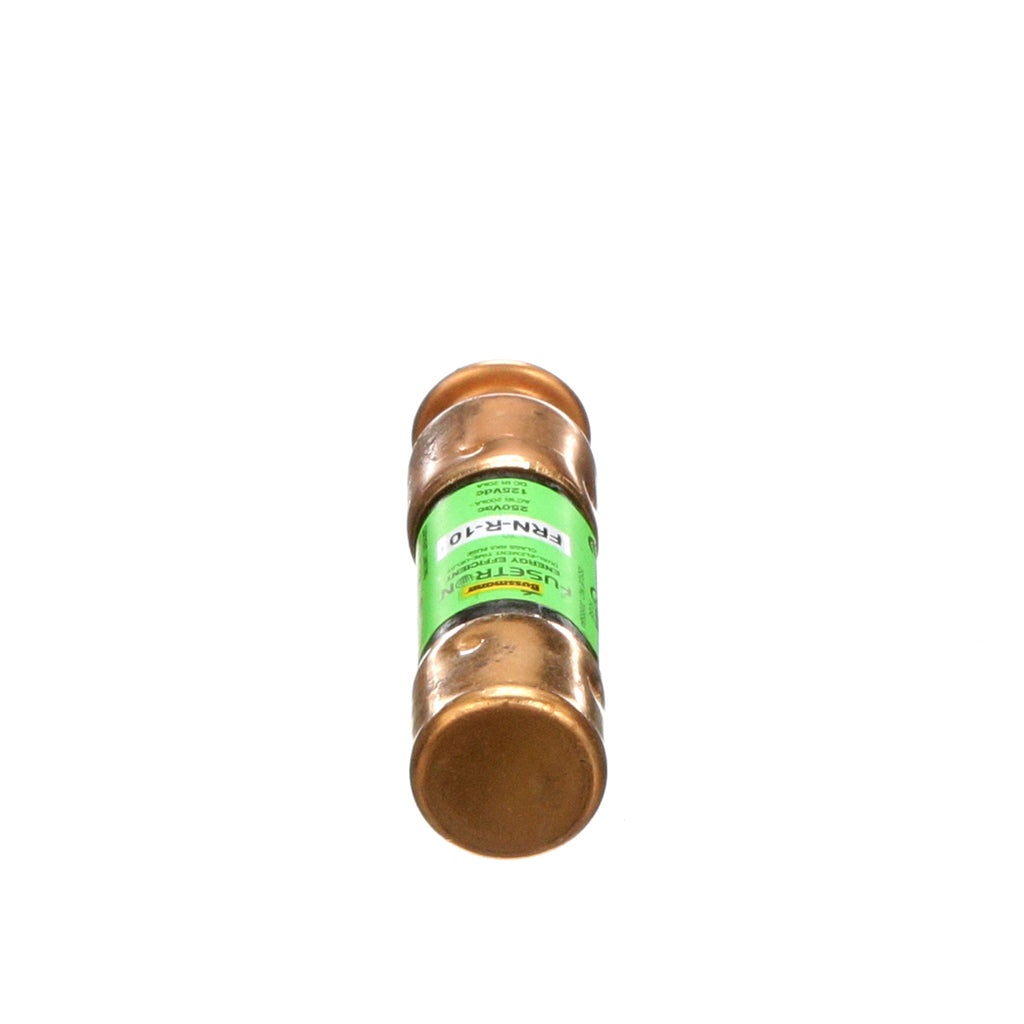

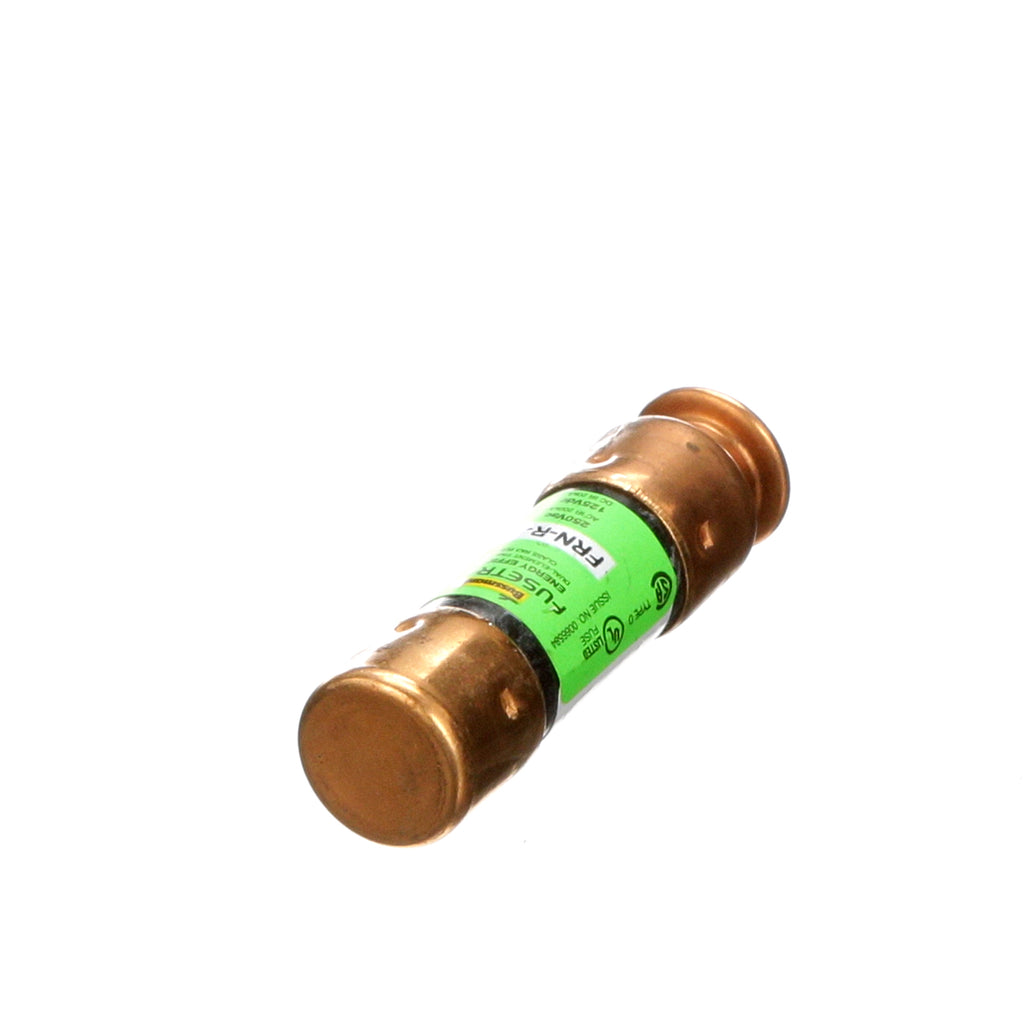

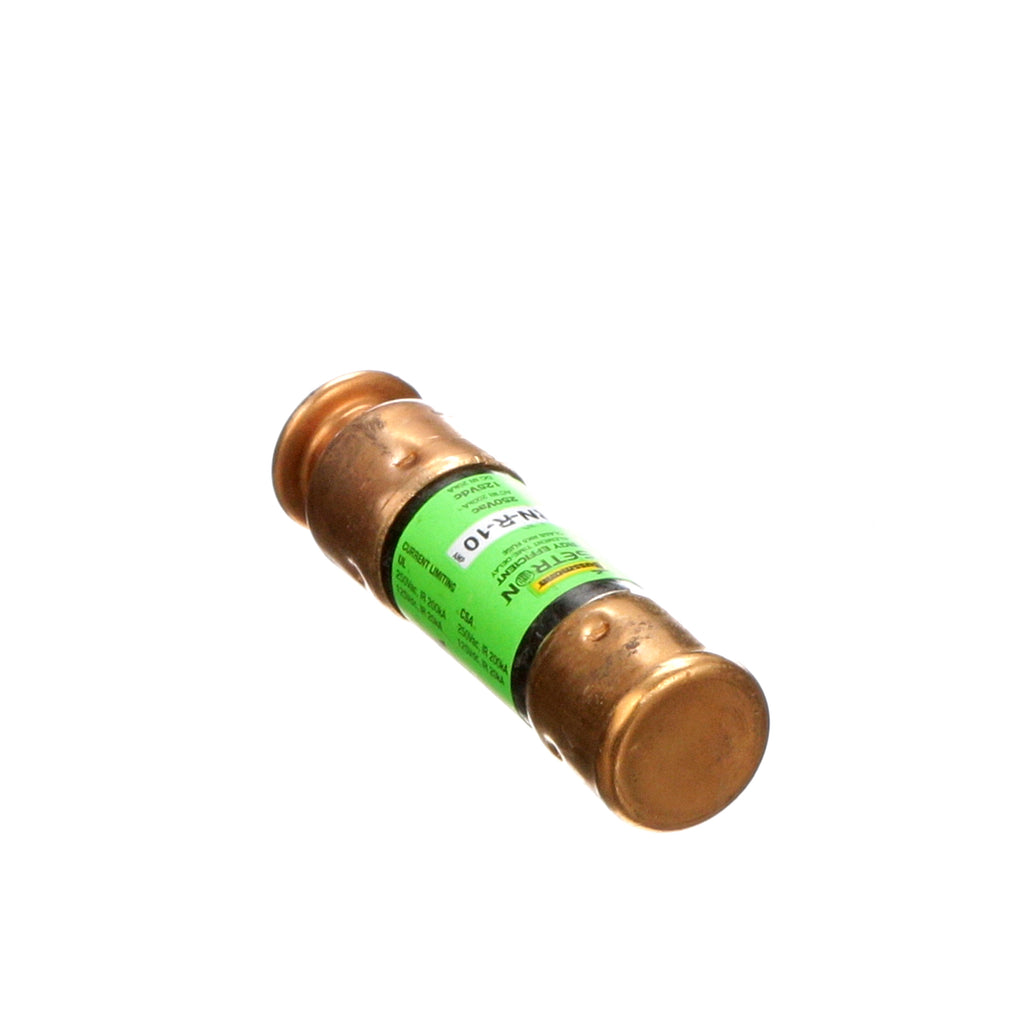

FRN-R-10 is a Bussmann, Cooper Bussmann, and Eaton 10 Amp, 250VAC/125VDC, Class RK5 dual-element time-delay fuse designed for reliable circuit protection in demanding applications.

This Fusetron series fuse features a dual-element design for both time-delay and current-limiting performance, offering motor overload, ground fault, and short-circuit protection. It is UL listed and suitable for use in a variety of industrial and commercial settings where high interrupting capacity and dependable operation are required.

Key Specifications
• Amperage: 10A
• Voltage: 250VAC/125VDC
• Poles: 1
• Mounting Type: Ferrule
• Interrupt Rating: 200,000A (250VAC), 20,000A (125VDC)
• Series/Frame: Fusetron FRN-R, Class RK5
• Trip Unit: Dual-element, time-delay (10 sec at 500% rated current)
• Certifications: UL listed
• Dimensions: 0.56" diameter x 2" length
• End Type: Ferrule
• Response Time: 10 seconds at 500% of rated current
• Application: Motor circuits, branch circuits, and general purpose protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRN-R-10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 250
• Amperage : 10
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712101738
• GTIN : 00051712101738
• Country of Origin : Mexico
• Dimensions : 5.875 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.294
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
