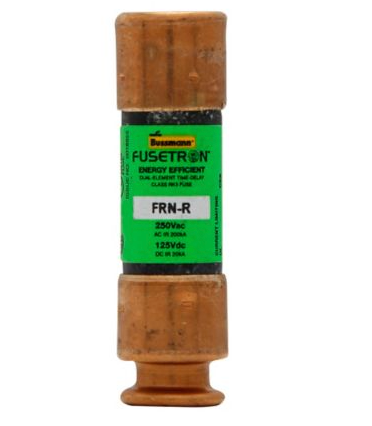

FRN-8/10 - Eaton Bussmann FRN-R Class RK5 Dual-Element Time-Delay Fuse 0.8A 250Vac 1-Pole

FRN-8/10

FRN-8/10 is an Eaton Bussmann FRN-R Class RK5 dual-element, time-delay fuse designed for reliable circuit protection.This fuse features a 0.8 ampere rating with a voltage rating of 250 Vac and 125 Vdc. It is a current-limiting, non-indicating fuse with ferrule end x ferrule end construction. The fuse provides a time-delay response of 8 seconds at 500% of rated current and has an interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc. It is a single-pole fuse suitable for use in branch circuit protection applications.

Key Specifications
• Amperage: 0.8 A
• Voltage: 250 Vac / 125 Vdc
• Poles: 1
• Fuse Type: Dual-element, time-delay
• Interrupt Rating: 200 kA at 250 Vac, 20 kA at 125 Vdc
• Construction: Ferrule end x ferrule end
• Class: RK5
• Non-indicating
• Response Time: 8 seconds at 500% rated current
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRN-8/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Fusetron
• Type : FRN
• Voltage : 250
• Amperage : 8
• AIC rating : 100kA@250V
• Class Rating : RK5
• Barrels : 1



Product Data

• Weight : 5 lb
