Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
FRN-250

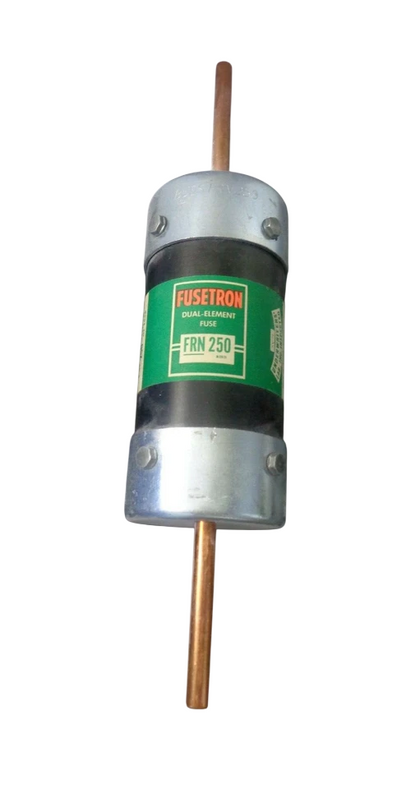

FRN-250 is a dual-element, time-delay fuse from Eaton Bussmann Series, designed for reliable circuit protection in industrial and commercial applications. This fuse features a current-limiting design and is non-indicating, providing robust protection for electrical systems.Engineered for use in 250V AC and 125V DC circuits, the FRN-250 offers a 10-second time-delay at 500% of rated current, ensuring selective coordination and minimizing nuisance trips. The fuse is constructed with blade terminals for secure mounting and is suitable for use in standard fuse blocks. It is UL Listed to Class RK5 standards and meets cULus requirements.
- Amperage: 250A
- Voltage: 250V AC, 125V DC
- Mounting: Blade
- Interrupt Rating: 200kA AC, 20kA DC
- Series: FRN-R
- Class: RK5
- Response Time: 10 seconds at 500% rated current
- Element Type: Dual-Element
- Current Limiting: Yes
- Indication: Non-Indicating
- Agency Approvals: UL Listed, cULus
Specifications
- Part Number: FRN-250
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Fusetron
- Type : FRN
- Voltage : 250
- Amperage : 250
- AIC rating : 100kA@250V
- Class Rating : RK5
- Barrels : 1
Product Data
- Weight : 5
