Product Info
- Manufacturer:Bussmann
Description

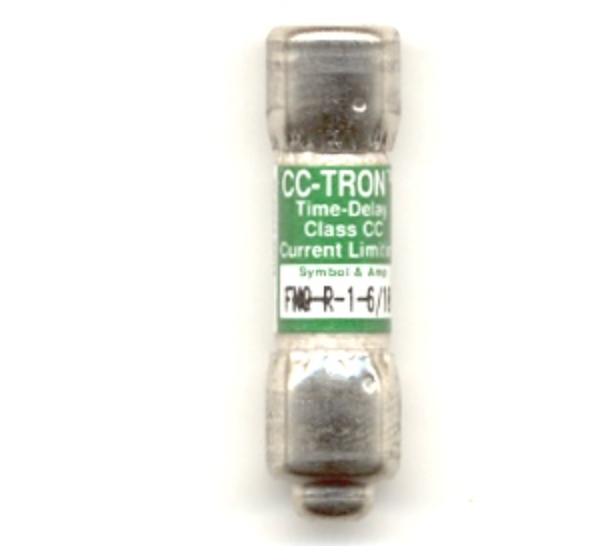

FNQR1.6
FNQR1.6 is a Bussmann Class CC time-delay fuse rated for 1.6 amps and 600 volts AC, designed for control circuit transformer protection.FNQR1.6 features a 200,000 AIC interrupting rating at 600 VAC and meets UL Class CC standards. It provides time-delay protection allowing for high inrush currents typical in control circuits. This fuse is rejection type, fitting standard and rejection-style holders, and is UL listed and CSA certified.
- Amperage: 1.6 A
- Voltage Rating: 600 VAC
- Interrupting Rating: 200,000 AIC @ 600 VAC
- Fuse Class: Class CC
- Fuse Speed: Time-Delay (Slow Blow)
- Type: Limitron™
- Size: 13/32 inch diameter x 1 1/2 inch length
- UL Listed, Std. 248-4, Guide JDDZ, File E4273
- CSA Certified, Class 1422-01
- Rejection type fuse
Specifications
- Part Number: FNQR1.6
- Brand : Bussmann
Product Data
- Weight : 25
