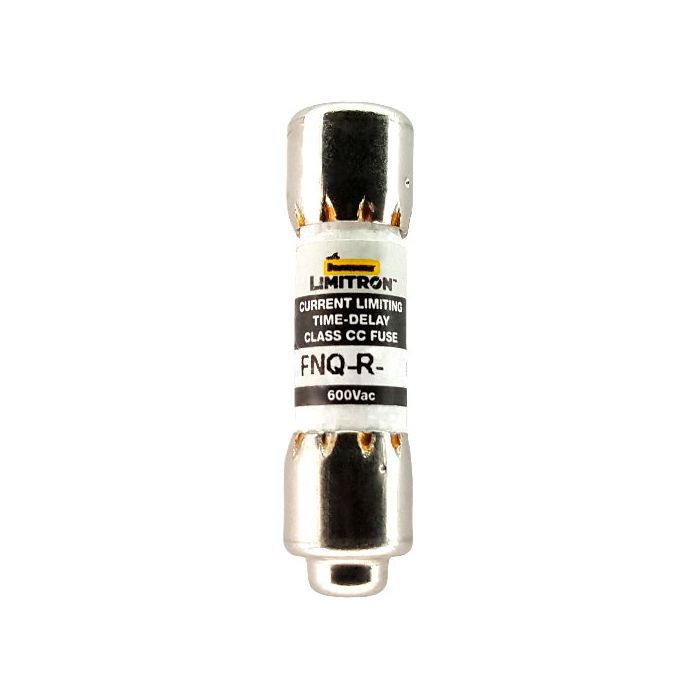

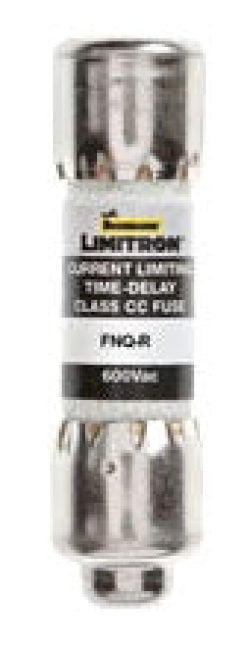

FNQ-R-8 - Eaton Bussmann 8A 600V Class CC Time-Delay Current-Limiting Fuse 200kA Interrupt Rating

FNQ-R-8

FNQ-R-8 is an Eaton Bussmann Class CC time-delay current-limiting fuse rated for 8 amps and 600 volts AC with a 200kA interrupting rating.This FNQ-R-8 fuse features a dual-element design for time-delay protection, a rejection style to prevent misapplication, and a melamine tube construction. It provides reliable line protection for small control transformers, industrial control, and branch circuits with a 12-second response time at 200% overload. The fuse has ferrule end connections and is RoHS compliant and CE marked.

• Amperage: 8 A
• Voltage Rating: 600 V AC
• Class: Class CC
• Interrupt Rating: 200,000 AIC
• Fuse Type: Time-delay, dual-element, current-limiting
• Fuse Length: 1.5 inches
• Connection: Ferrule end x ferrule end
• Material: Melamine tube
• Response Time: 12 seconds at 200% overload
• Special Feature: Rejection style
• Certifications: UL Listed, CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-8
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 8
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712497060
• GTIN : 00051712497060
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
