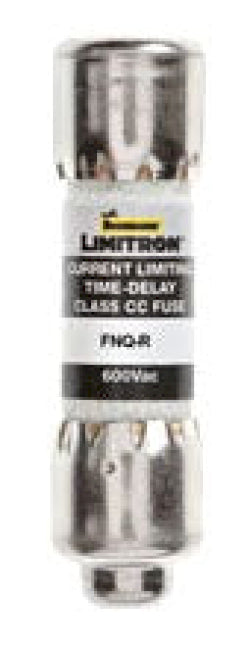

FNQ-R-8/10 - Eaton Bussmann Class CC 0.8A 600V Time-Delay Fuse 200kA Interrupt Rating

FNQ-R-8/10

FNQ-R-8/10 is a Bussmann Eaton Class CC time-delay fuse designed for reliable circuit protection.This 0.8 amp, 600 volt AC fuse features a current-limiting, high inrush time-delay design with a rejection style for secure mounting. It has a 200,000 amp interrupting rating at 600 VAC, non-indicating ferrule end connections, and a melamine tube construction. The fuse is UL listed, CSA certified, and RoHS compliant, suitable for protecting small control transformers, industrial control circuits, and branch circuits.

Key Specifications
• Amperage: 0.8 A
• Voltage Rating: 600 V AC
• Fuse Class: Class CC
• Interrupt Rating: 200 kAIC at 600 VAC
• Type: Current-limiting, high inrush time-delay
• Mounting: Rejection style
• Connection: Ferrule end x ferrule end
• Material: Melamine tube
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Dimensions: 13/32 in x 1 1/2 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-8/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 0.8
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712147026
• GTIN : 00051712147026
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
