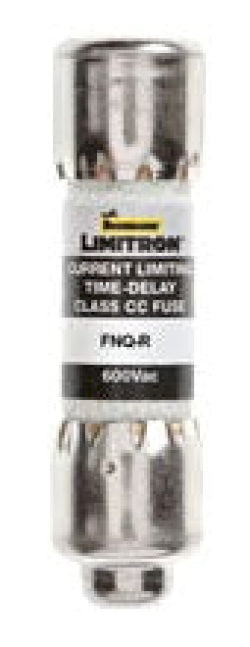

FNQ-R-7-1/2 - Bussmann Class CC Time Delay Fuse 7.5A 600VAC 200kA Interrupt Rating

FNQ-R-7-1/2

FNQ-R-7-1/2 is a Bussmann Class CC time delay fuse designed for industrial and commercial applications requiring reliable current limitation.This 7.5 amp, 600 VAC fuse features a 200 kA interrupting rating and a dual-element, time-delay design to handle high inrush currents without nuisance blowing. It has a cylindrical melamine tube body with ferrule end terminals and a rejection style to ensure proper holder compatibility. The fuse meets UL 248-4, CSA, CE, and RoHS certifications and is ideal for protecting control transformers and line circuits.

Key Specifications
• Amperage: 7.5 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 200 kA
• Fuse Class: CC
• Speed: Time Delay / Slow Blow
• Body Type: Cylindrical Melamine Tube
• Terminal Type: Ferrule End
• Fuse Style: Rejection
• Dimensions: 13/32" Dia x 1-1/2" L (10.3 x 38.1 mm)
• Certifications: UL, CSA, CE, RoHS
• Series: FNQ-R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-7-1/2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 7
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712147118
• GTIN : 00051712147118
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
