FNQ-R-5 - Eaton Bussmann 5A 600V Class CC Time-Delay Fuse 200kA Interrupt Rating

FNQ-R-5

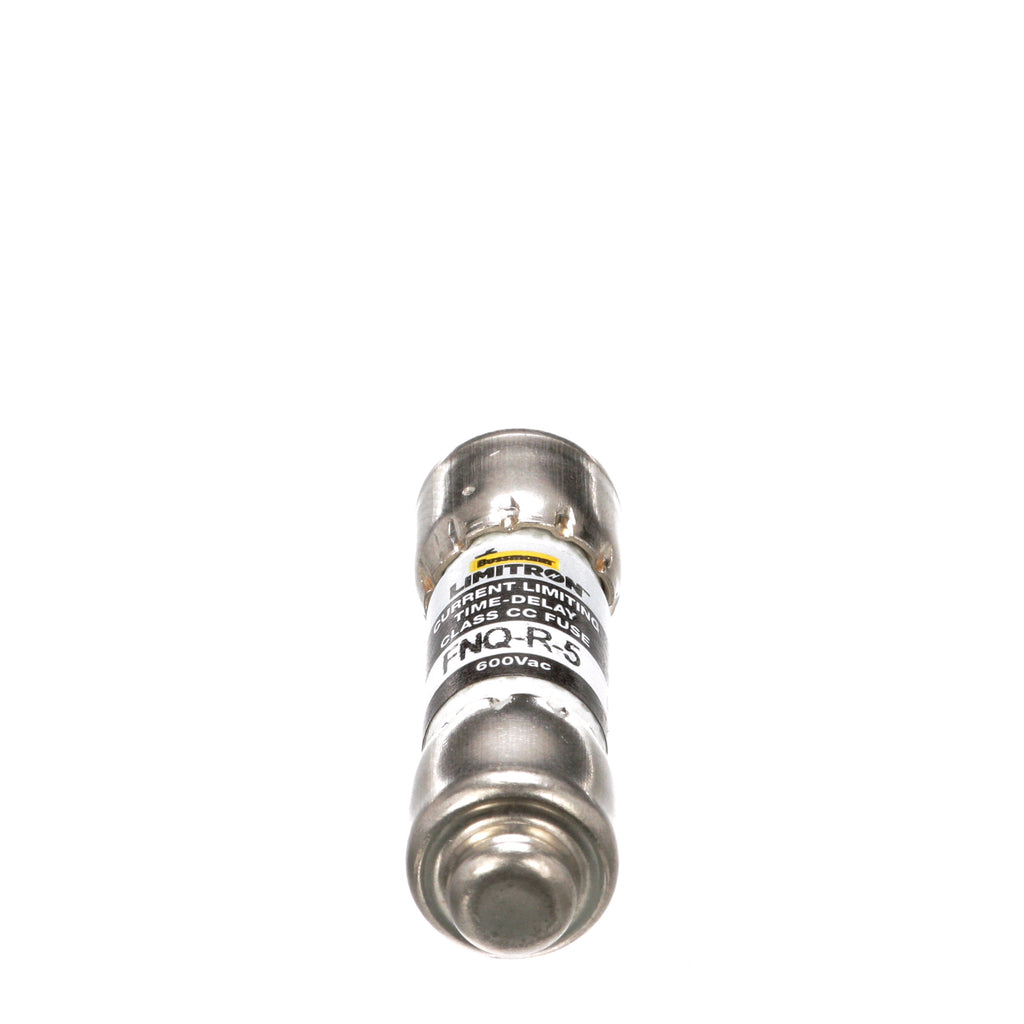

FNQ-R-5 is an Eaton Bussmann Class CC time-delay fuse designed for reliable circuit protection.This 5 amp, 600 volt fuse features a dual-element, current-limiting design with a rejection style to prevent incorrect installation. It offers a high interrupting rating of 200,000 amps at 600 VAC, suitable for industrial control, branch circuits, and small control transformers. The fuse has ferrule end connections and a melamine tube construction, providing durability and compliance with CE and RoHS standards.

Key Specifications
• Amperage: 5 A
• Voltage Rating: 600 VAC
• Class: Class CC
• Interrupting Rating: 200 kA at 600 VAC
• Fuse Type: Time-delay, dual-element, current limiting
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Mounting Type: Rejection style
• Material: Melamine tube
• Certifications: UL 248-4, CSA, CE, RoHS compliant
• Response Time: 12 seconds at 200% rated current

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-5
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 5
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712147101
• GTIN : 00051712147101
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
