FNQ-R-4 - Eaton Bussmann 4A 600V Class CC Time-Delay Fuse, 200kA Interrupt Rating

FNQ-R-4

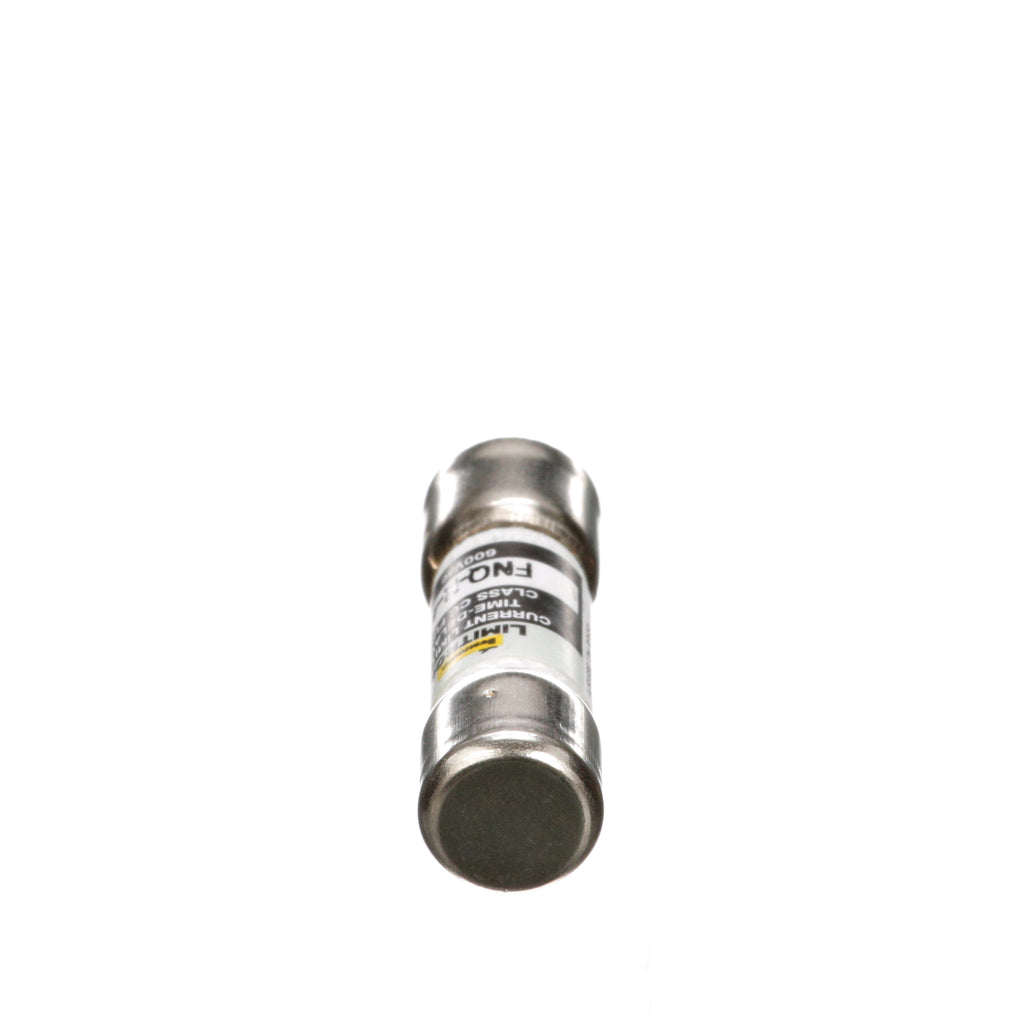

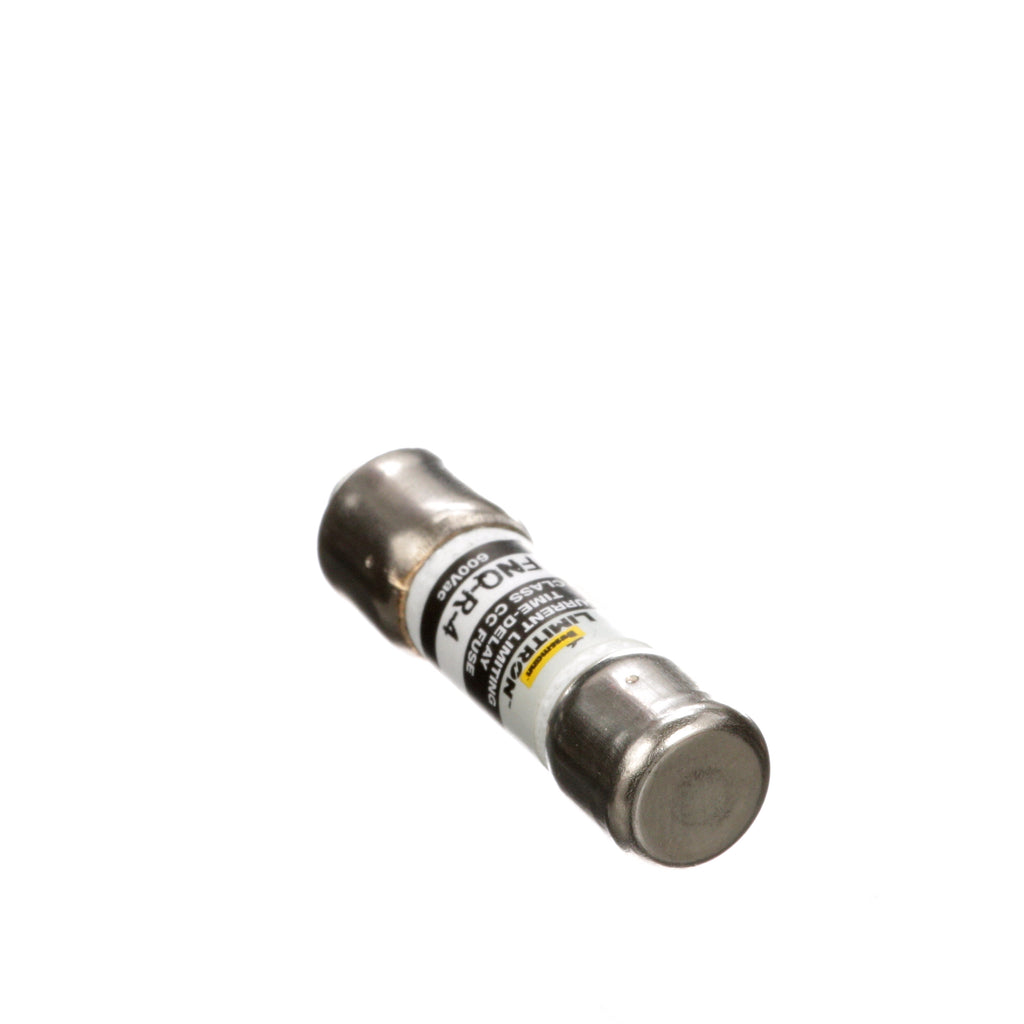

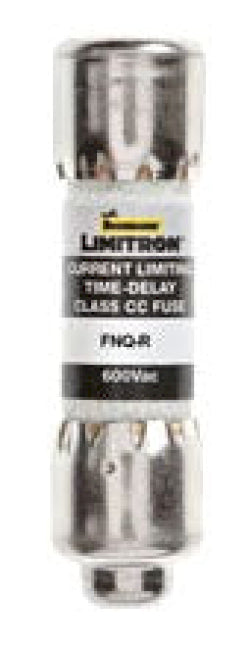

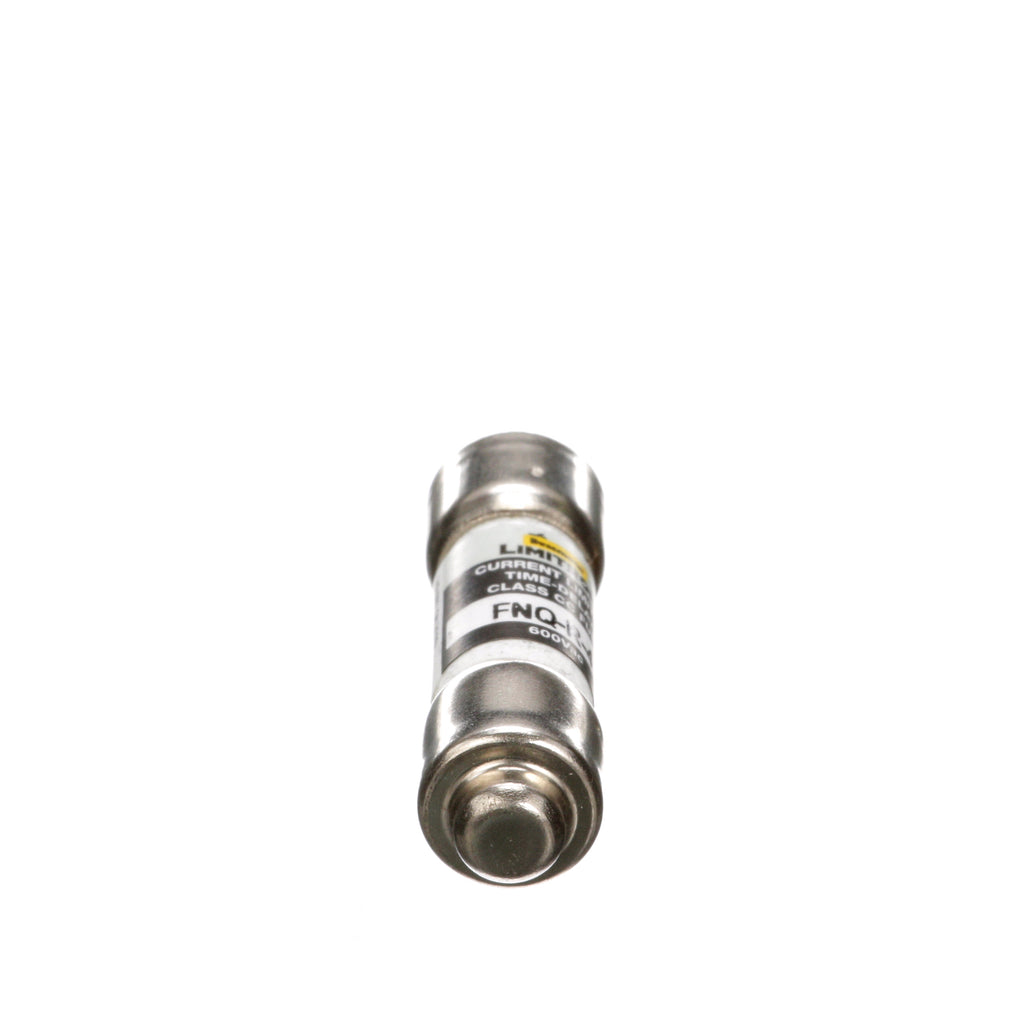

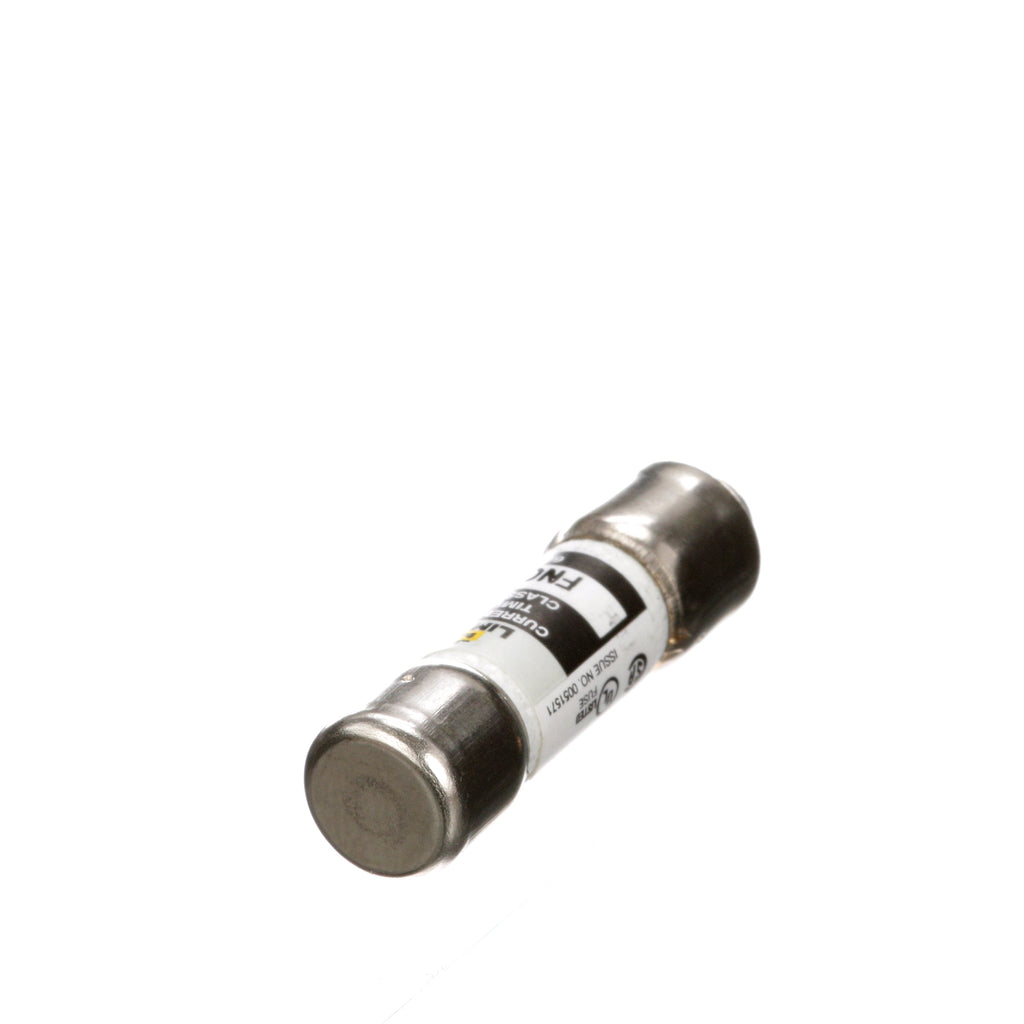

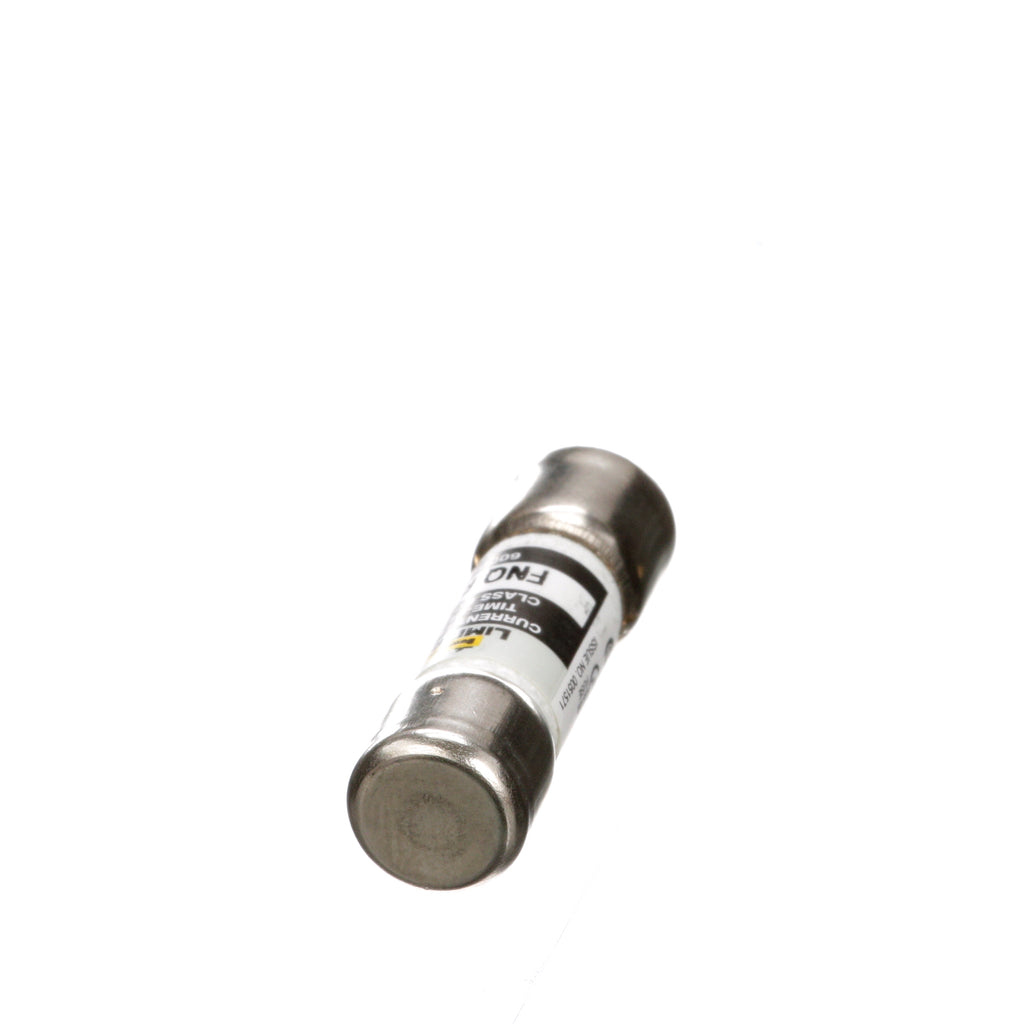

FNQ-R-4 is an Eaton Bussmann Class CC time-delay fuse rated for 4 amperes and 600 volts AC with a 200kA interrupting rating.This FNQ-R-4 fuse features a dual-element current-limiting design with a melamine tube body and ferrule end connections. It provides reliable line protection for small control transformers, industrial control circuits, and branch circuits. The fuse is non-indicating, rejection style, and complies with RoHS and CE standards. It has a response time of 12 seconds at 200% overload and is UL listed and CSA certified.

• Amperage Rating: 4 A
• Voltage Rating: 600 V AC
• Class: Class CC
• Interrupting Rating: 200 kAIC
• Fuse Type: Time-delay, dual-element current limiting
• Connection: Ferrule end x ferrule end
• Material: Melamine tube
• Response Time: 12 seconds at 200%
• Fuse Indicator: Non-indicating
• Mounting Type: Rejection style
• Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
• Application: Line protection, small control transformers, industrial control, branch circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 4
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712147095
• GTIN : 00051712147095
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
