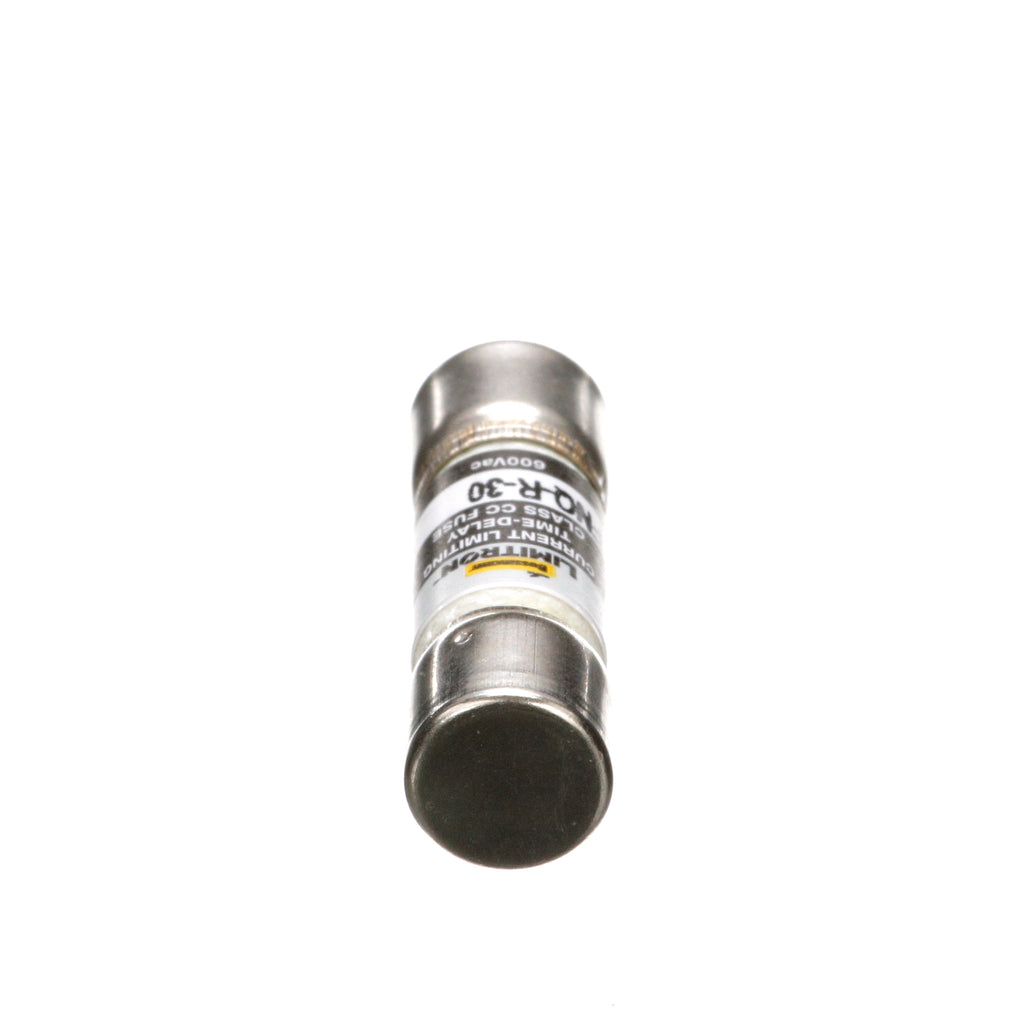

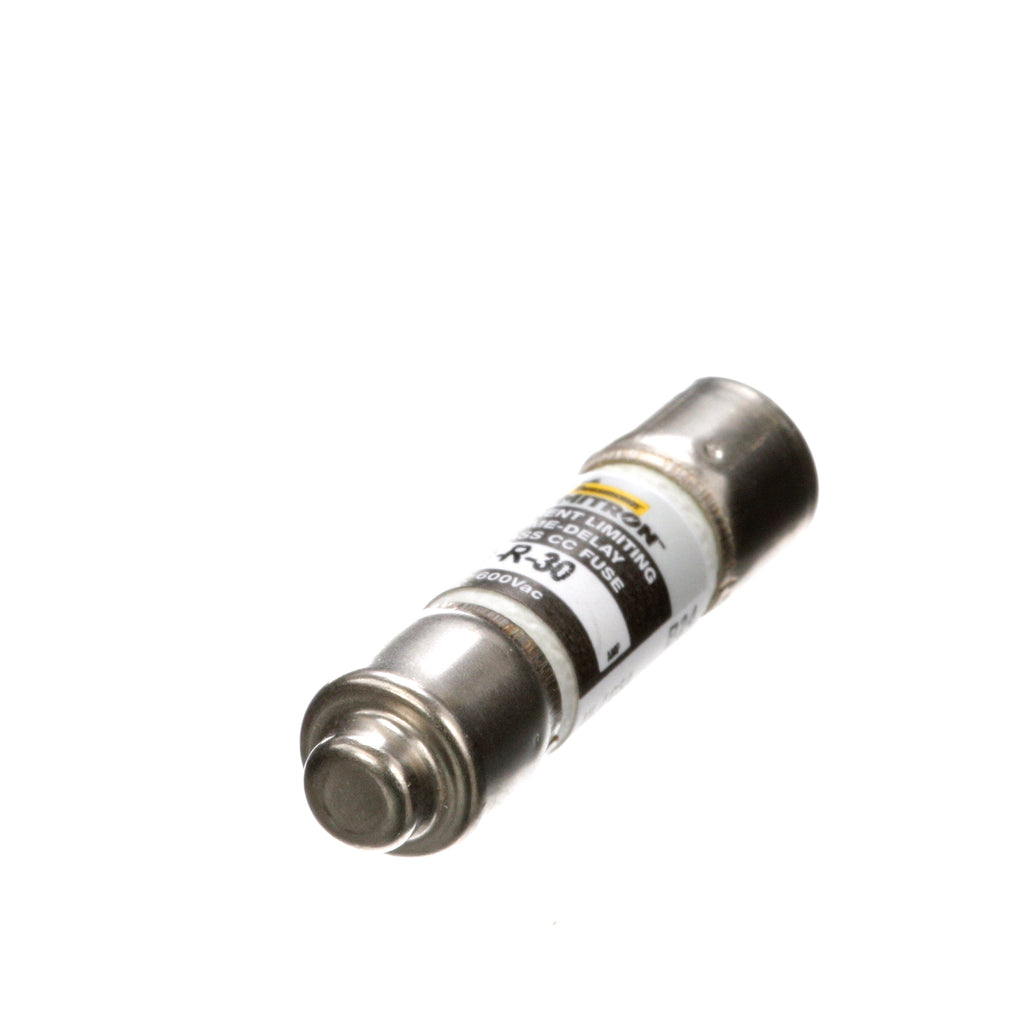

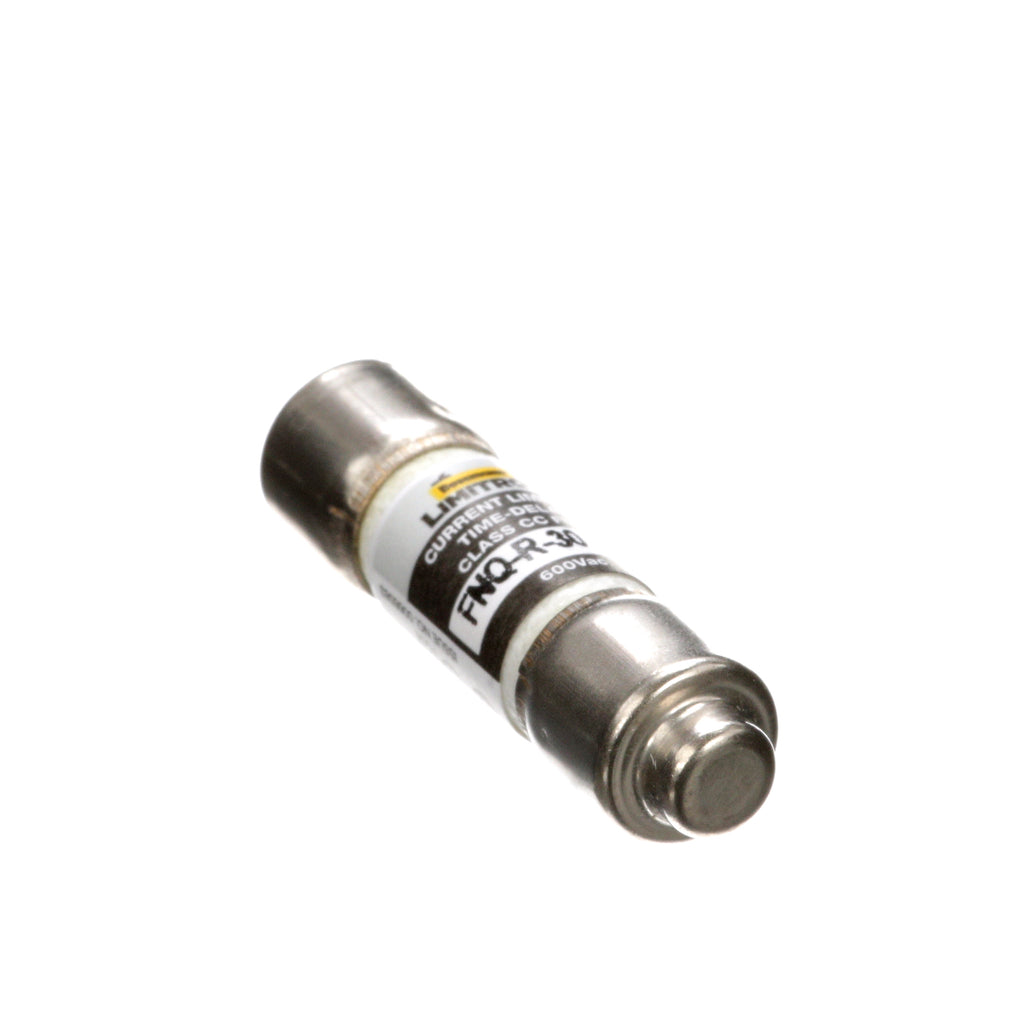

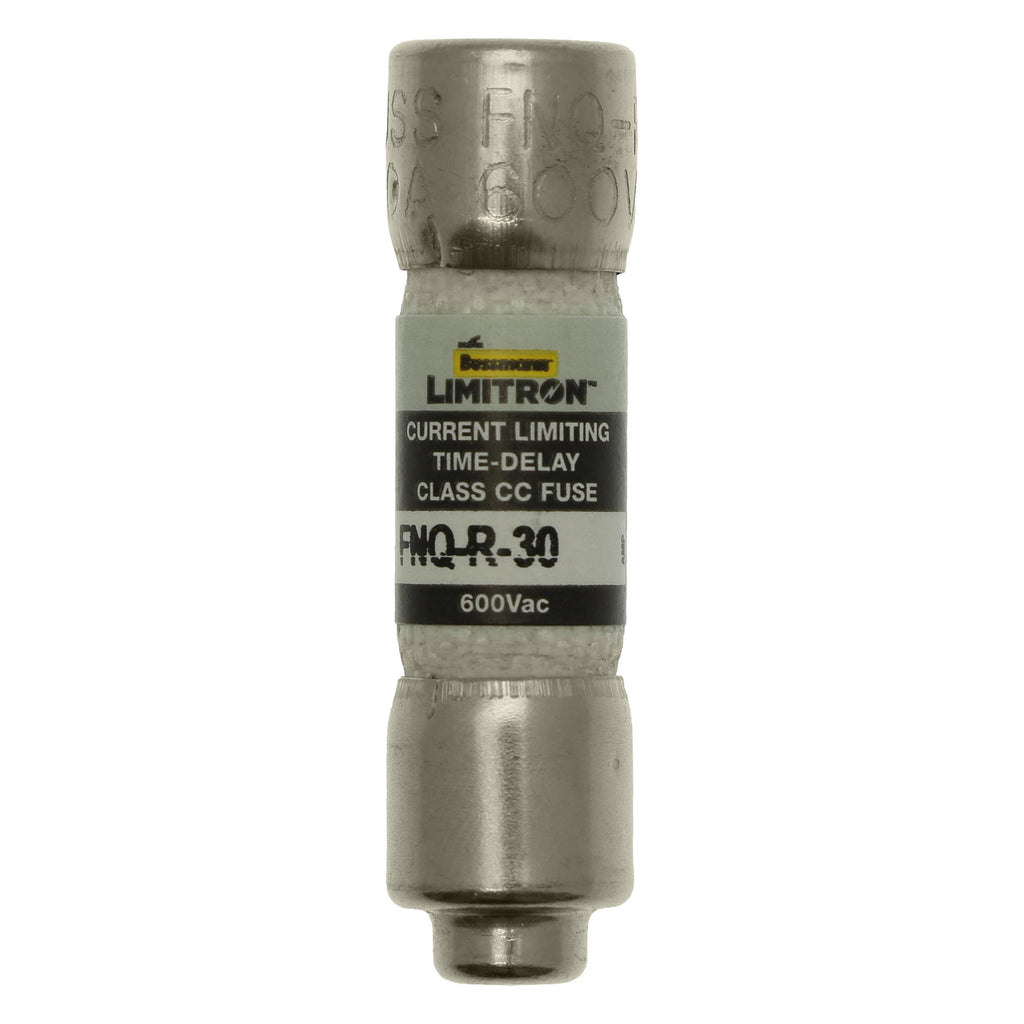

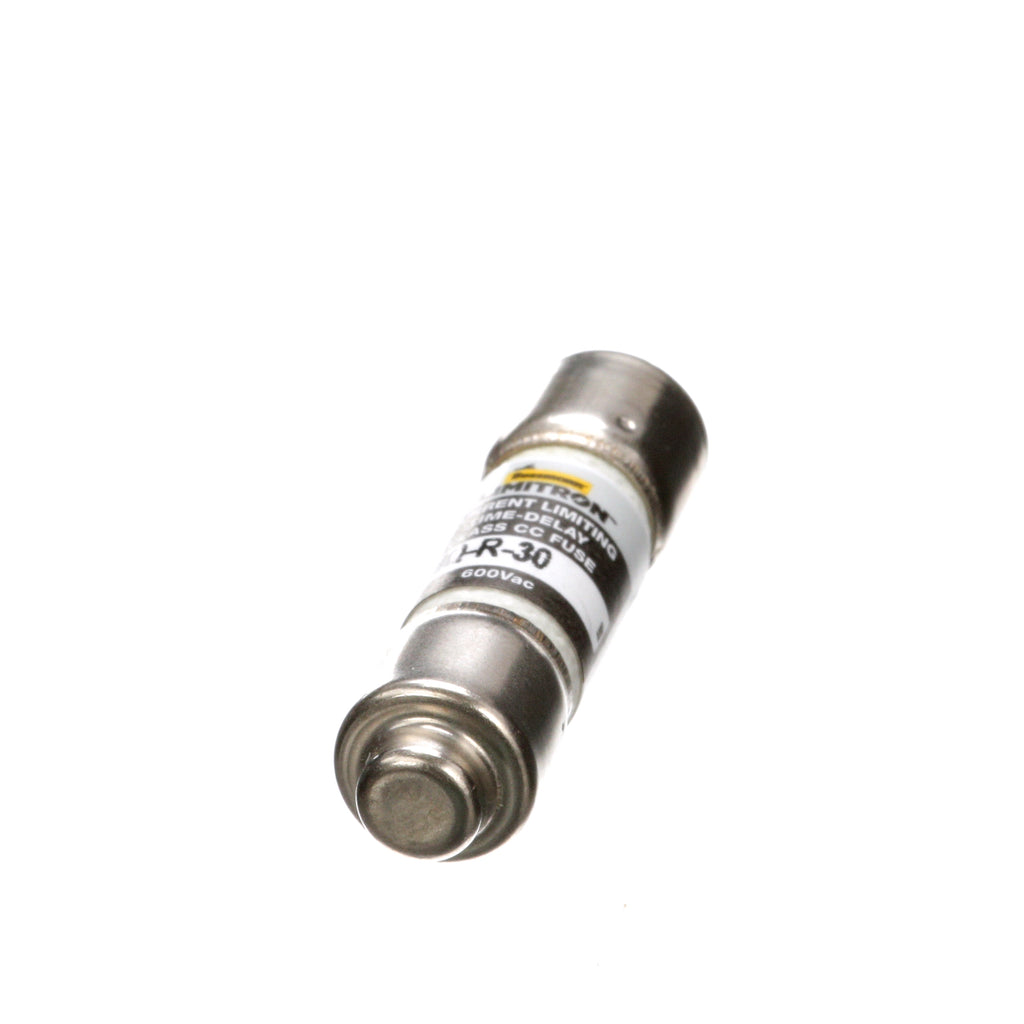

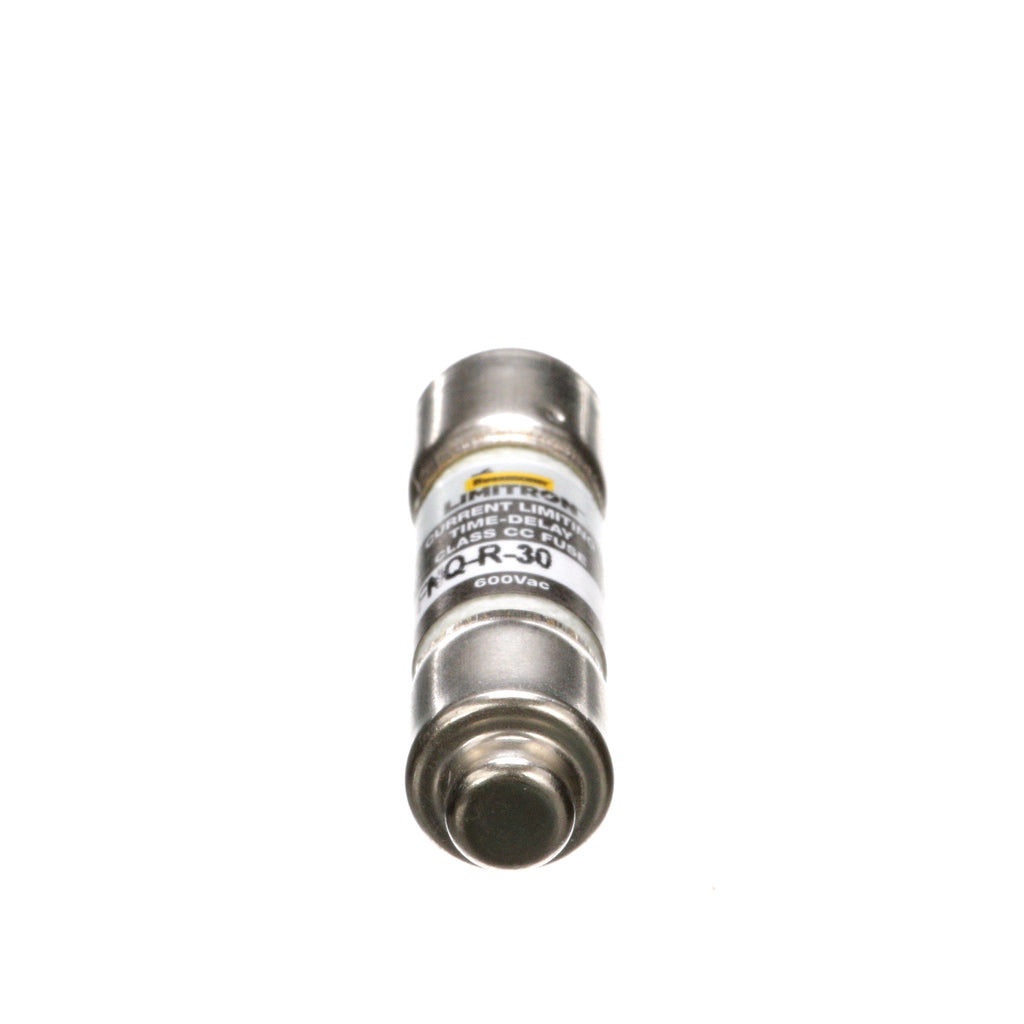

FNQ-R-30 - Eaton Bussmann 30A 600V Class CC Time Delay Fuse, 200kA Interrupt Rating, Rejection Style

FNQ-R-30

FNQ-R-30 is a 30 amp, 600 volt Eaton Bussmann Class CC time-delay fuse designed for branch circuit and transformer protection.This fuse features a dual-element, current-limiting design with a 200,000 amp interrupting rating at 600 VAC. It has a rejection style ferrule end x ferrule end connection and a melamine tube body. The FNQ-R-30 fuse provides reliable time-delay protection with a 12 second delay at 200% overload, suitable for industrial control and line protection applications. It is RoHS compliant and CE marked.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 600 V AC
• Fuse Class: Class CC
• Interrupting Rating: 200,000 AIC at 600 VAC
• Time Delay: Dual-element, 12 seconds at 200% overload
• Connection: Ferrule end x ferrule end, rejection style
• Body Material: Melamine tube
• Dimensions: 13/32 inch diameter x 1-1/2 inch length
• Compliance: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Weight: 0.15 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 30
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712497145
• GTIN : 00051712497145
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
