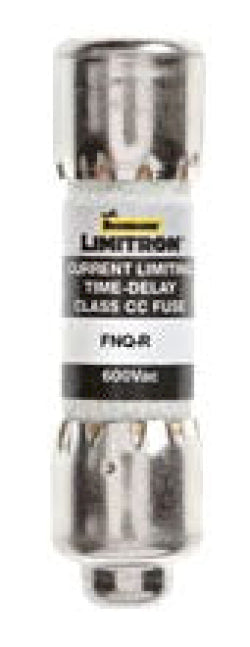

FNQ-R-25 - Eaton Bussmann 25A 600V Class CC Time Delay Fuse

FNQ-R-25

FNQ-R-25 is a 25 ampere, 600 volt AC Class CC time delay fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a melamine tube body with ferrule end x ferrule end termination, providing a 12-second time delay at 200% overload. It has a high interrupt rating of 200kA at 600VAC, making it suitable for demanding industrial and commercial applications. The FNQ-R-25 is UL listed, CSA certified, and RoHS compliant, ensuring compliance with safety and environmental standards.

• Amperage: 25 A
• Voltage Rating: 600 VAC
• Fuse Type: Time Delay (Slow Blow)
• Interrupt Rating: 200 kA at 600 VAC
• Class: CC
• Body Style: Melamine tube, ferrule end x ferrule end
• Time Delay: 12 seconds at 200% overload
• Certifications: UL Listed, CSA Certified, RoHS Compliant
• Mounting Type: Cartridge fuse (clip termination)
• Series: FNQ-R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-25
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 25
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712497138
• GTIN : 00051712497138
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
