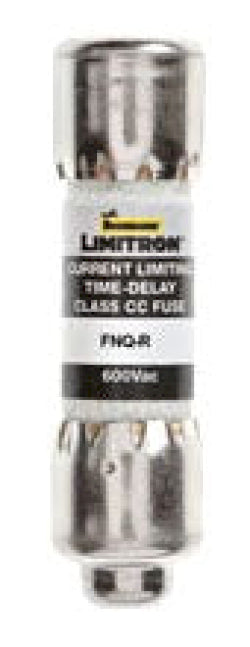

FNQ-R-2-8/10 - Eaton Bussmann Class CC Time-Delay Fuse 2.8A 600V 200kA Interrupting Rating

FNQ-R-2-8/10

FNQ-R-2-8/10 is an Eaton Bussmann Class CC time-delay fuse designed for reliable circuit protection.This fuse features a 2.8 ampere rating, 600 volt AC rating, and a high interrupting rating of 200,000 amperes. It is a dual-element, current-limiting fuse with a rejection style design, suitable for line protection, small control transformers, industrial control, and branch circuits. The fuse has ferrule end connections and a melamine tube body, compliant with CE and RoHS standards.

• Amperage: 2.8 A
• Voltage Rating: 600 VAC
• Class: CC
• Interrupting Rating: 200 kAIC
• Fuse Type: Time-delay, dual-element, current-limiting
• Connection: Ferrule end x ferrule end
• Body Material: Melamine tube
• Fuse Indicator: Non-indicating
• Response Time: 12 seconds at 200% rated current
• Mounting Type: Rejection style
• Certifications: CE Marked, RoHS Compliant
• Application: Line protection, industrial control, branch circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-2-8/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712496988
• GTIN : 00051712496988
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
