FNQ-R-2-1/2 - Bussmann Eaton 2.5A 600V Class CC Time Delay Fuse 200kA Interrupt Rating

FNQ-R-2-1/2

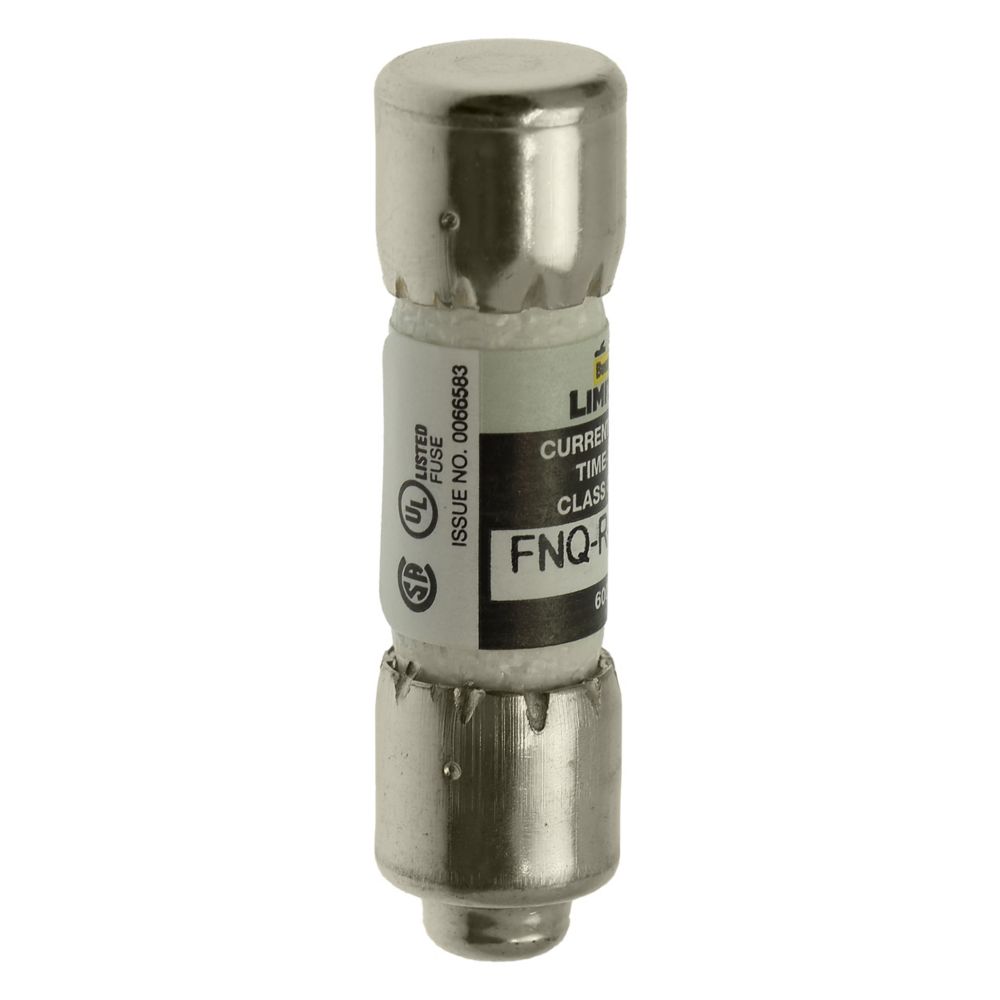

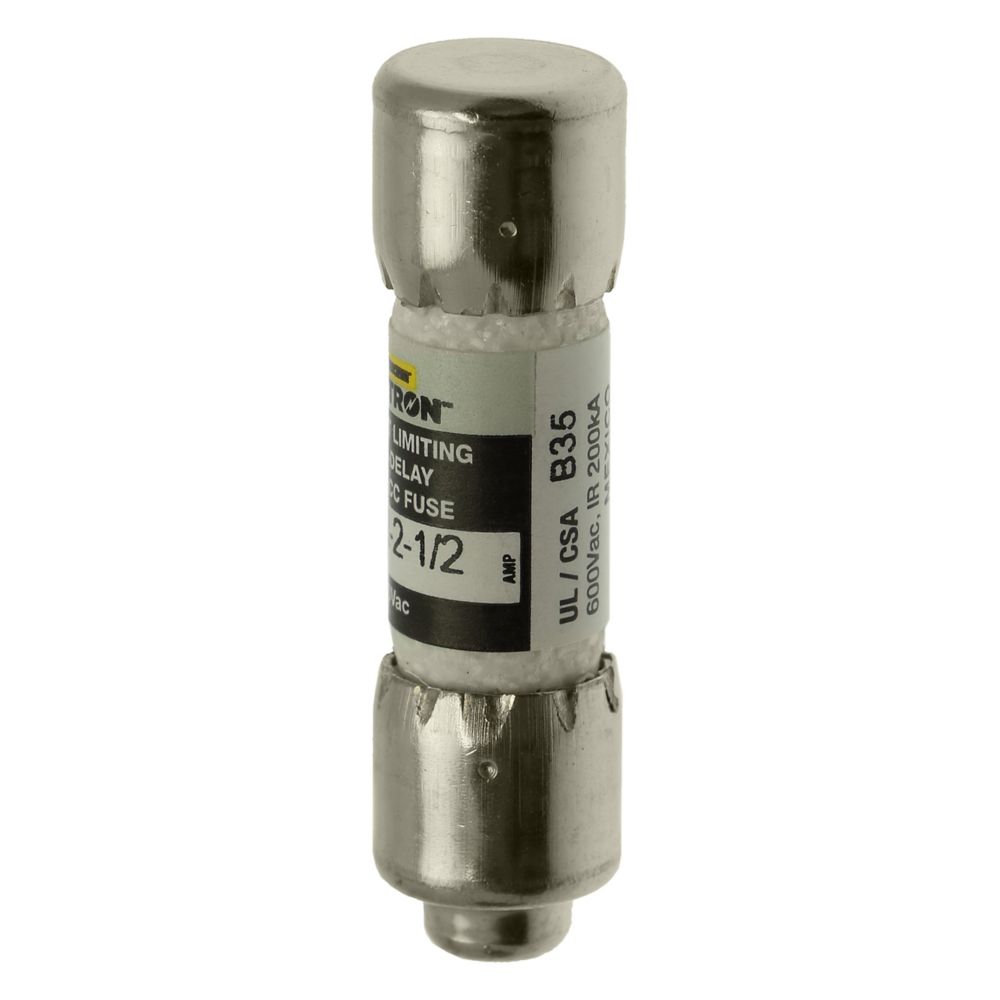

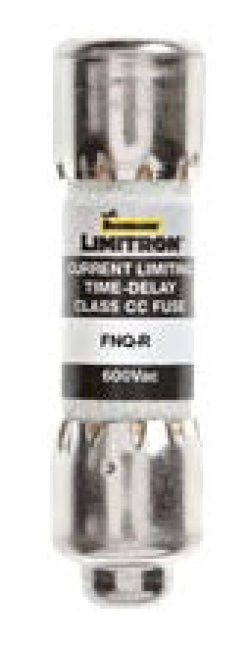

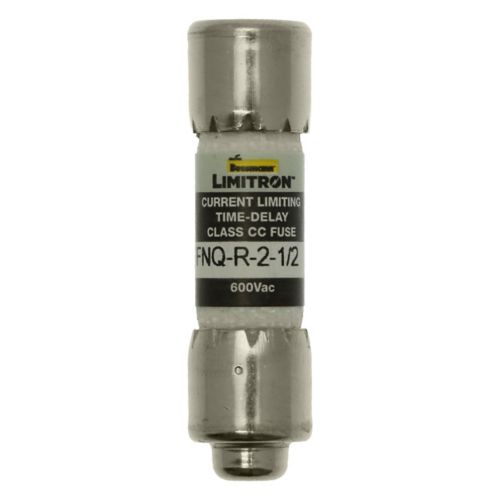

FNQ-R-2-1/2 is a Bussmann Eaton Class CC time delay fuse rated for 2.5 amps and 600 volts AC with a 200,000 AIC interrupting rating.This fuse provides advanced current limiting and time delay protection designed for control circuit transformer applications. It features a cylindrical melamine tube construction with nickel-plated brass end caps, fits standard and rejection-type holders, and complies with UL 248-4 and CSA Class 1422-01 certifications. The fuse size is 13/32 inch diameter by 1-1/2 inch length, offering 10X better current limitation to prevent equipment damage from short circuits.

Key Specifications
• Amperage: 2.5 A
• Voltage Rating: 600 VAC
• Class: CC
• Time Delay: Yes
• Interrupting Rating: 200,000 AIC @ 600 VAC
• Fuse Size: 13/32" x 1-1/2"
• Mounting Type: Holder (standard and rejection)
• Construction: Melamine tube with nickel-plated brass end caps
• Certifications: UL Listed (UL 248-4), CSA Certified (Class 1422-01), CE Certified, RoHS Compliant
• Element: Dual
• Response Time: 12 seconds at 200% rated current

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-2-1/2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712147071
• GTIN : 00051712147071
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
