Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNQ-R-17-1/2

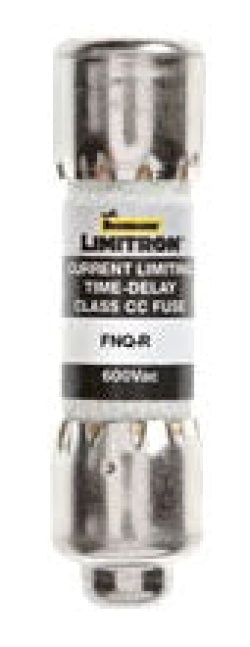

FNQ-R-17-1/2 is a Bussmann Eaton Class CC time delay fuse rated for 17.5 amperes and 600 volts AC.
This fuse features a non-indicating design with ferrule end connections and a melamine tube construction. It provides advanced circuit protection with a 12-second delay at 200% overload and a high interrupting rating of 200 kAIC. The FNQ-R series is designed for reliable, time-delay current limiting in branch circuit applications.
- Key Specifications
- Current Rating: 17.5 Amperes
- Voltage Rating: 600 VAC
- Fuse Type: Class CC, Time Delay (Slow Blow)
- Interrupting Rating: 200,000 AIC (200 kAIC)
- Construction: Melamine Tube
- Connection Type: Ferrule End x Ferrule End
- Trip Characteristics: 12 seconds at 200% overload
- Non-Indicating Fuse
- Series: FNQ-R
- Mounting: Inline Fuse Holder Compatible
- Part Number: FNQ-R-17-1/2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CC-Tron
- Type : FNQ
- Voltage : 600
- Amperage : 17
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
- UPC : 051712561044
- GTIN : 00051712561044
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.015
- Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
