FNQ-R-15 - Eaton Bussmann 15A 600V Class CC Time-Delay Fuse 200kA Interrupting Rating

FNQ-R-15

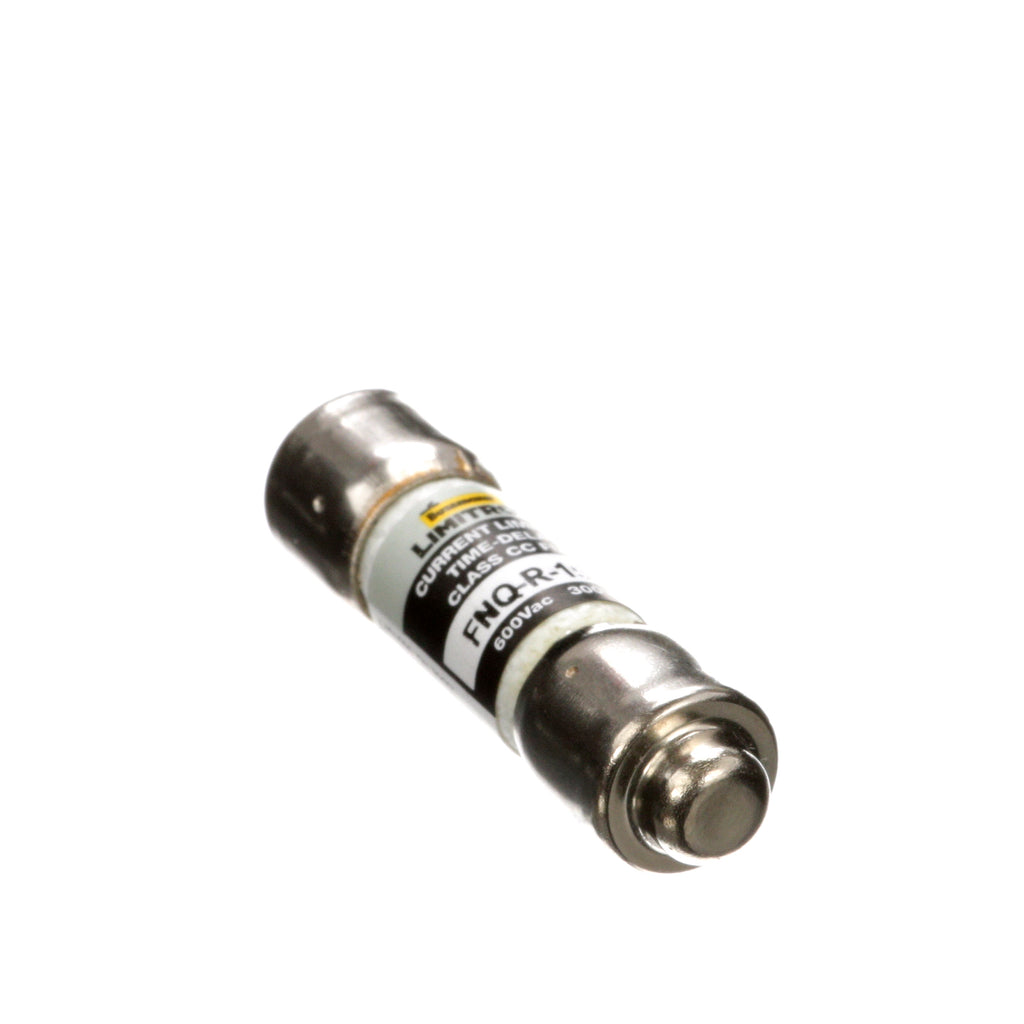

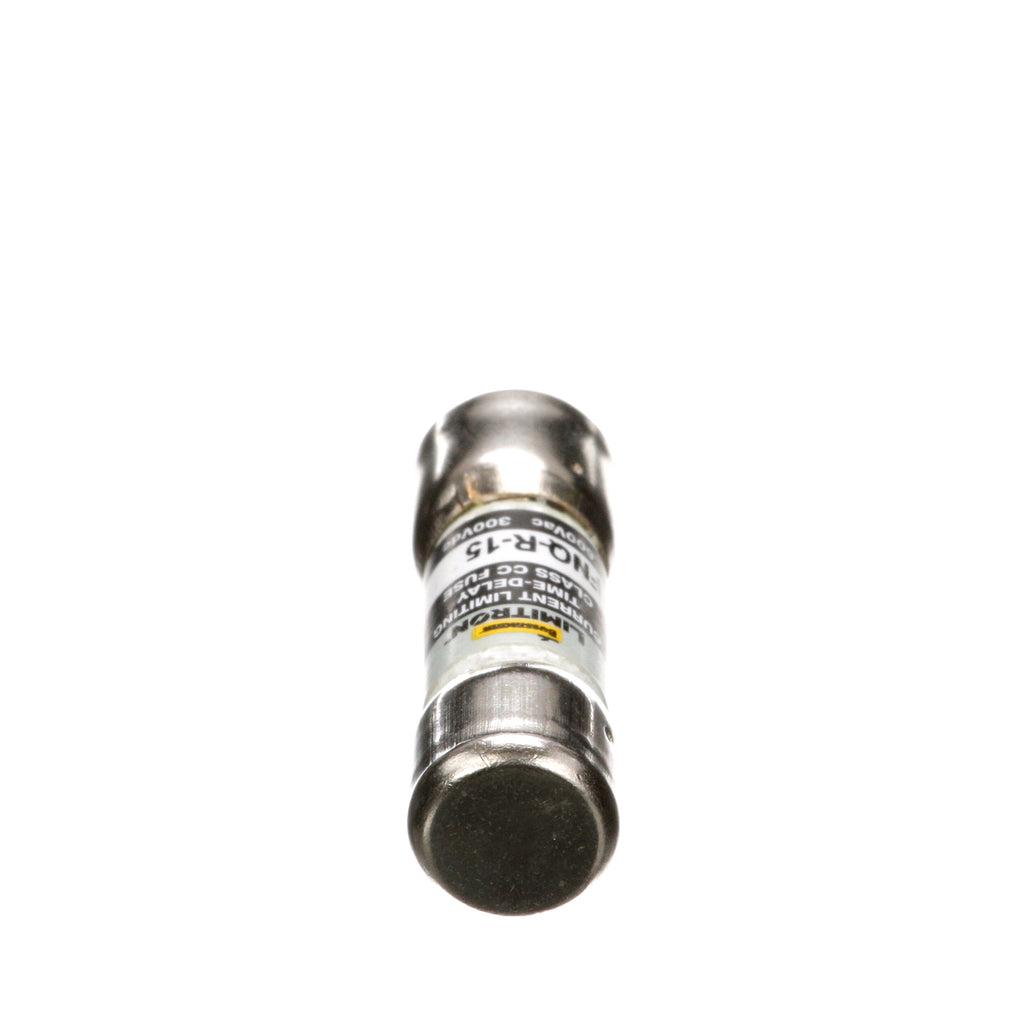

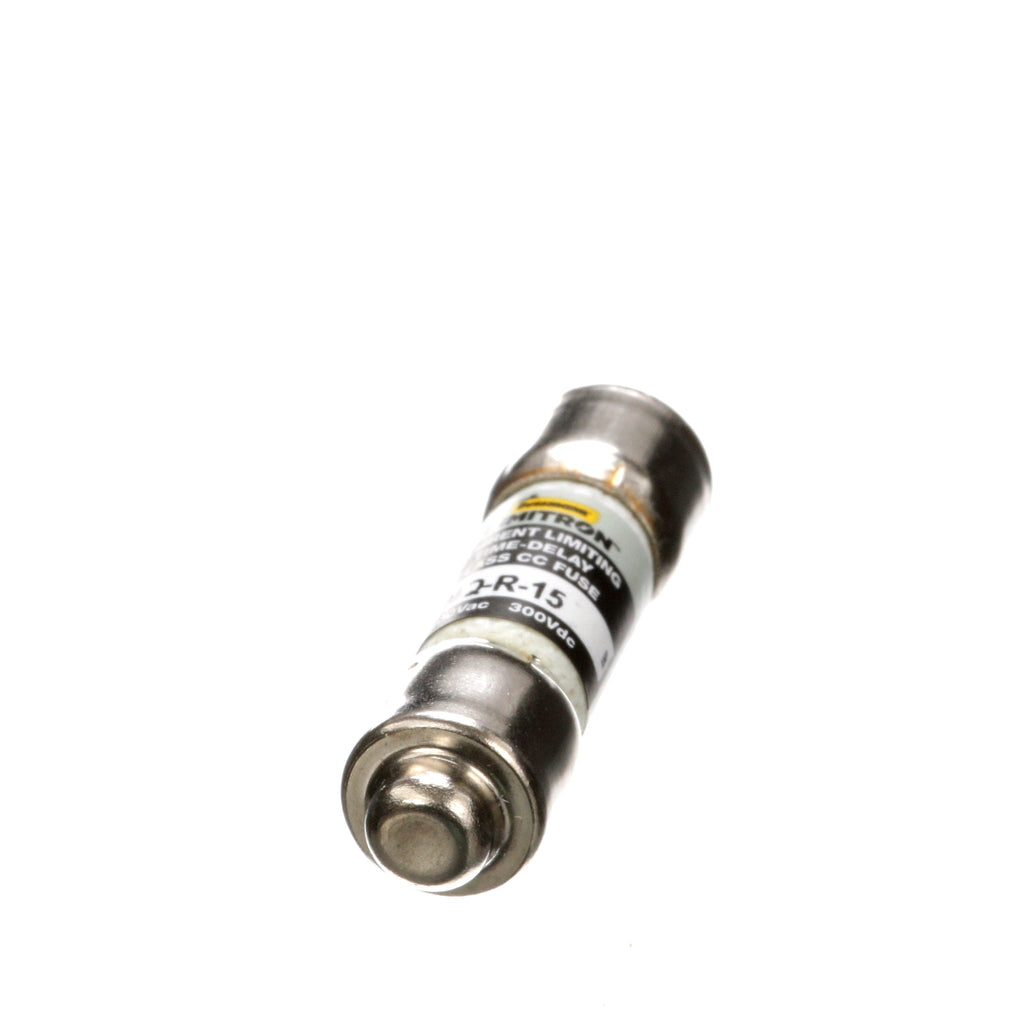

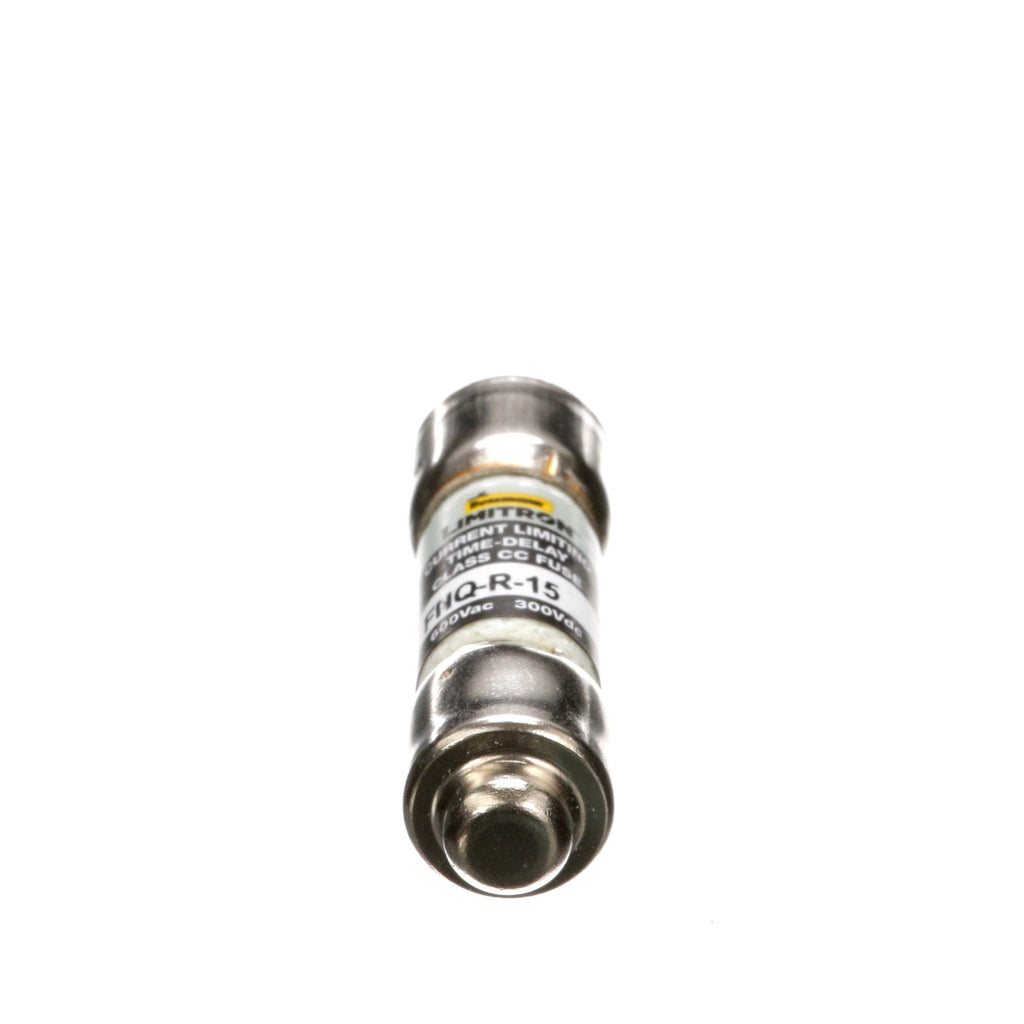

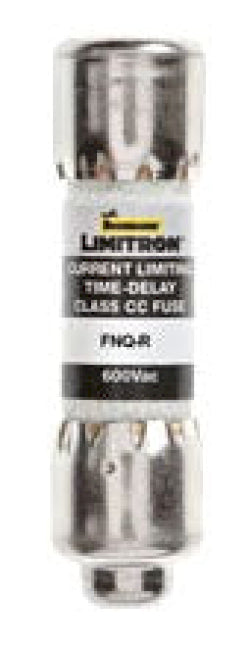

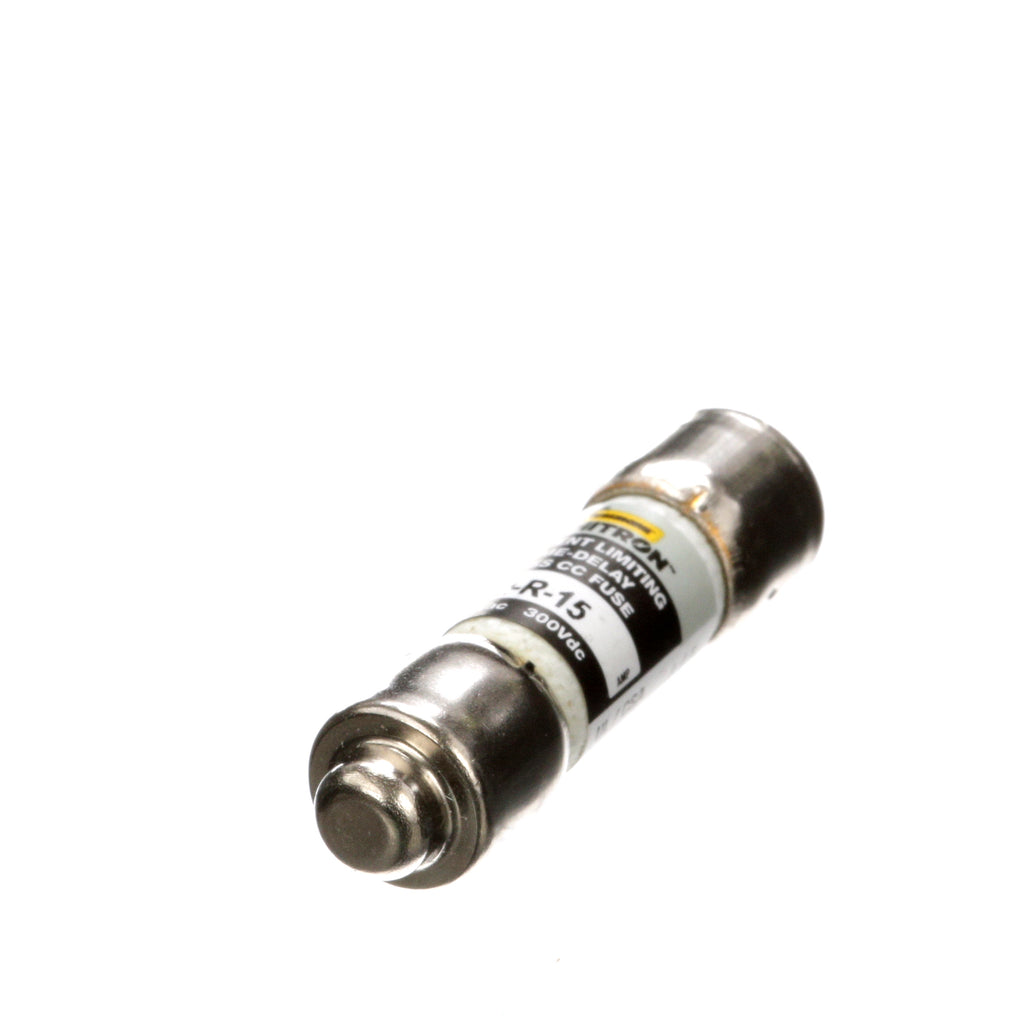

FNQ-R-15 is a 15 amp, 600 volt AC Class CC time-delay fuse designed for advanced circuit protection.This Eaton Bussmann FNQ-R series fuse features a current-limiting, dual-element design with a 200,000 amp interrupting rating at 600 VAC and 20,000 amp at 300 VDC (for 15A rating). It provides reliable time-delay protection for circuits, with a ferrule end x ferrule end mounting type and non-indicating construction. The fuse is UL listed, CSA certified, CE marked, and RoHS compliant.

Key Specifications
• Amperage: 15 A
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Time-Delay, Dual Element
• Interrupting Rating: 200kA AC, 20kA DC
• Fuse Class: CC
• Mounting Type: Ferrule End x Ferrule End
• Dimensions: 13/32 in x 1 1/2 in
• Non-Indicating
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Series: FNQ-R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-15
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 15
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712497114
• GTIN : 00051712497114
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
