FNQ-R-1 - Eaton Bussmann 1A 600V Class CC Time Delay Fuse 200kA Interrupt Rating

FNQ-R-1

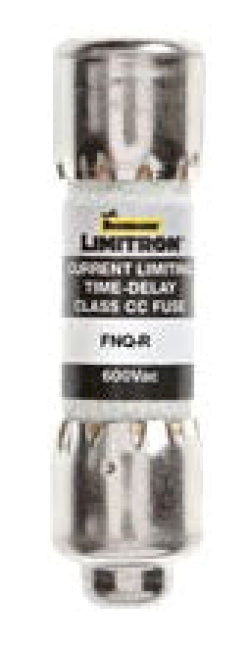

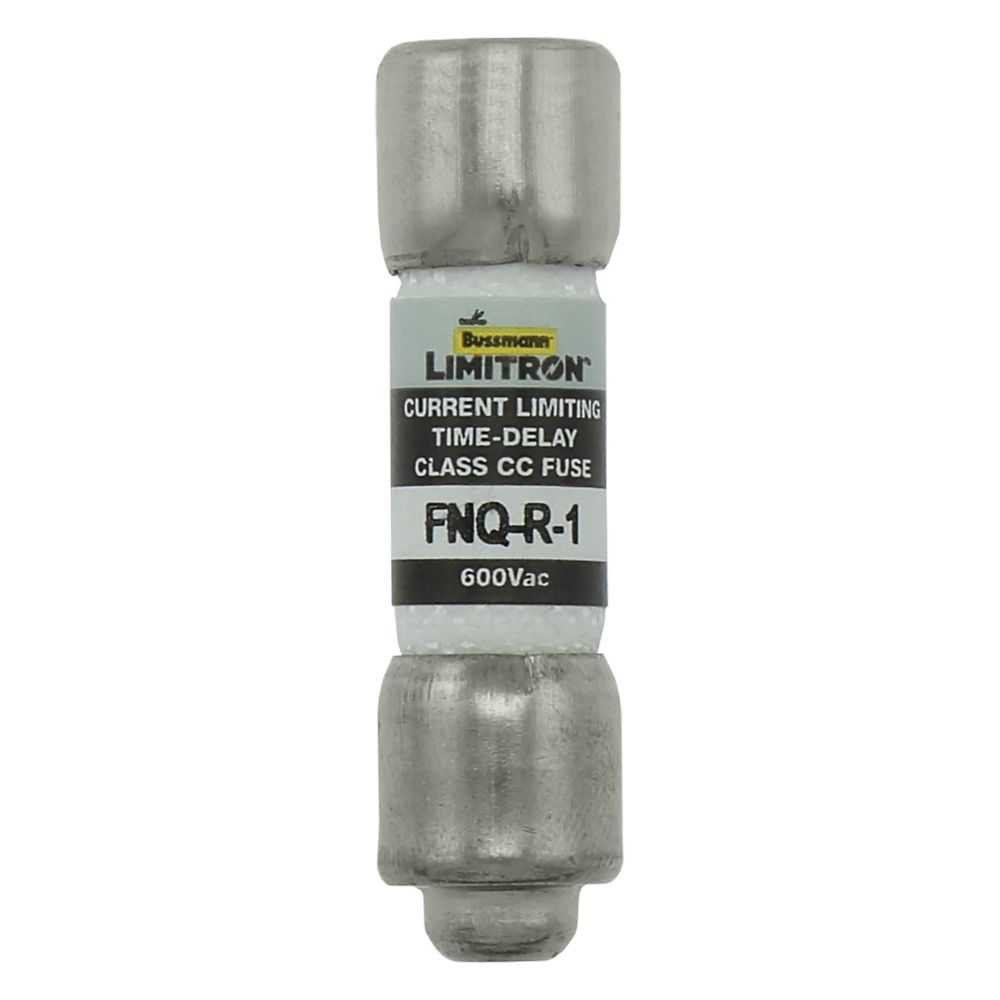

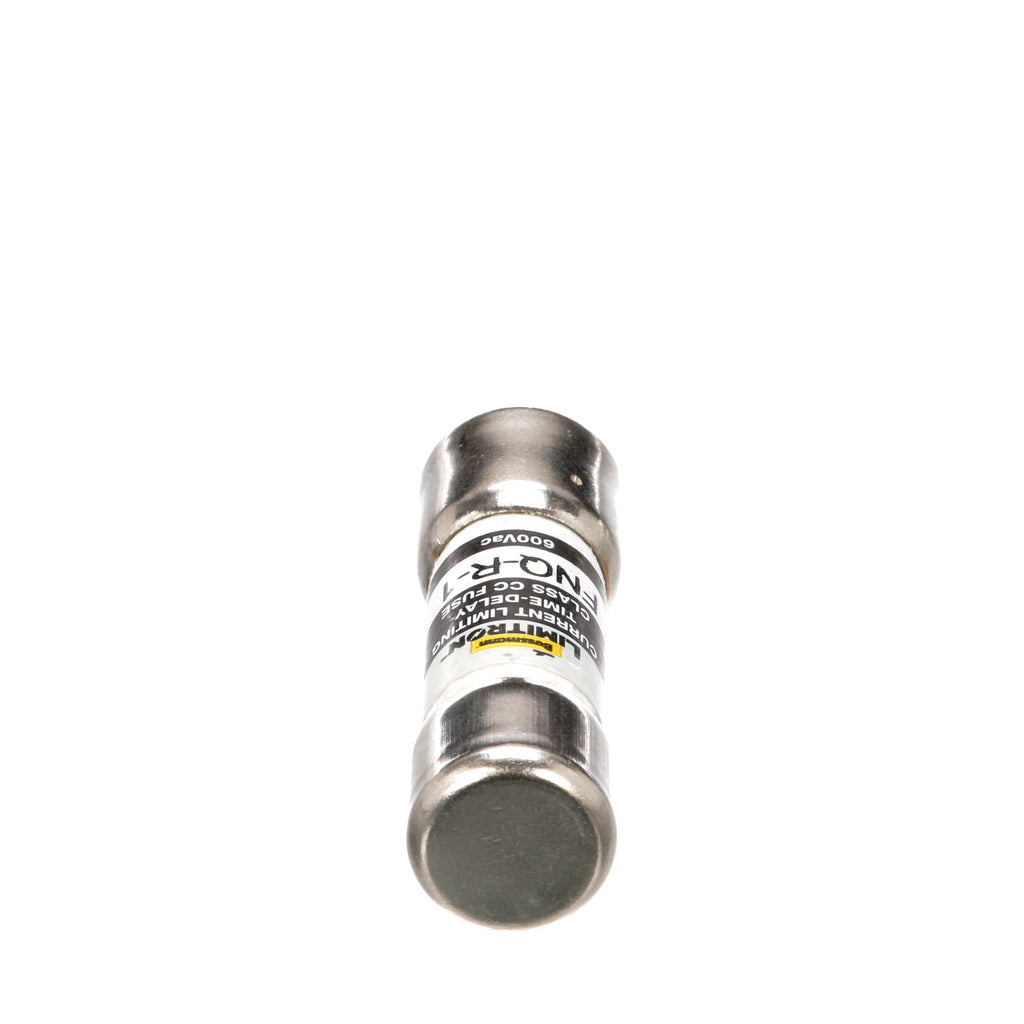

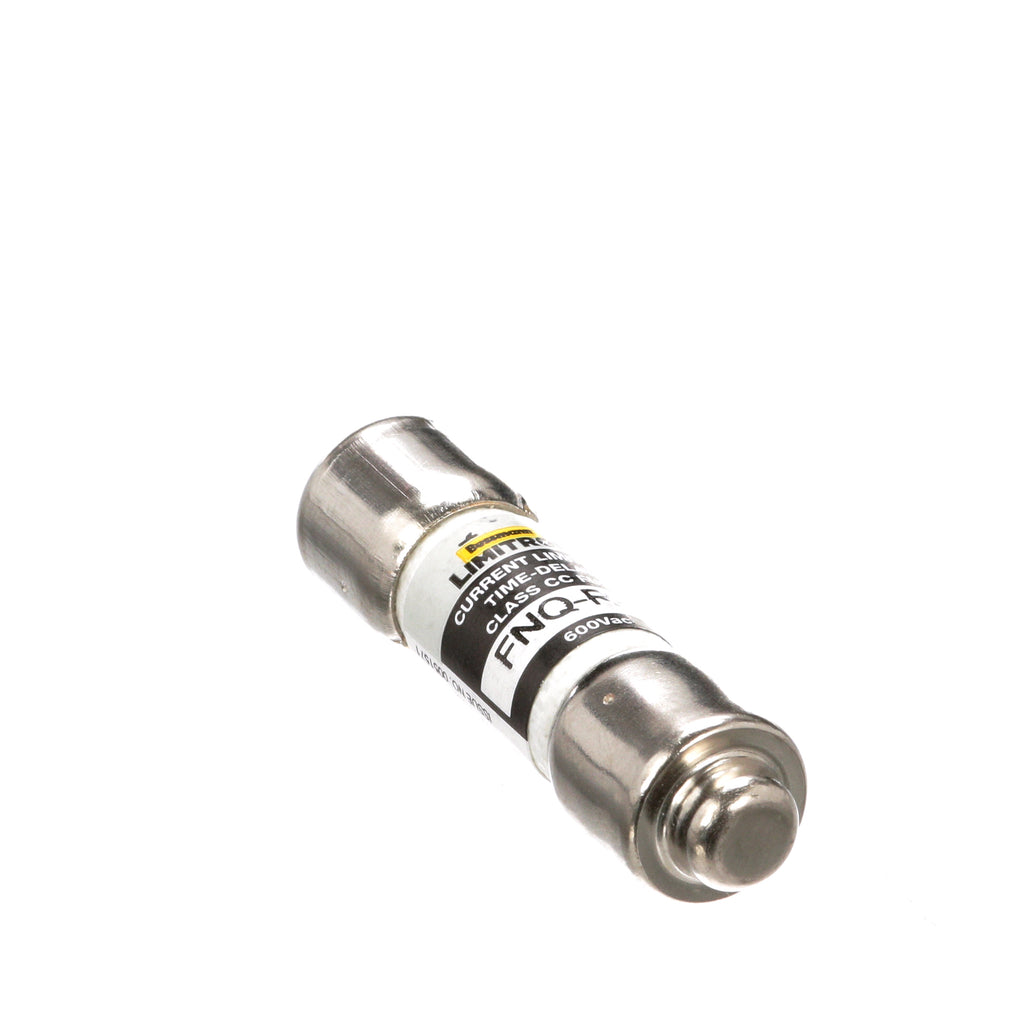

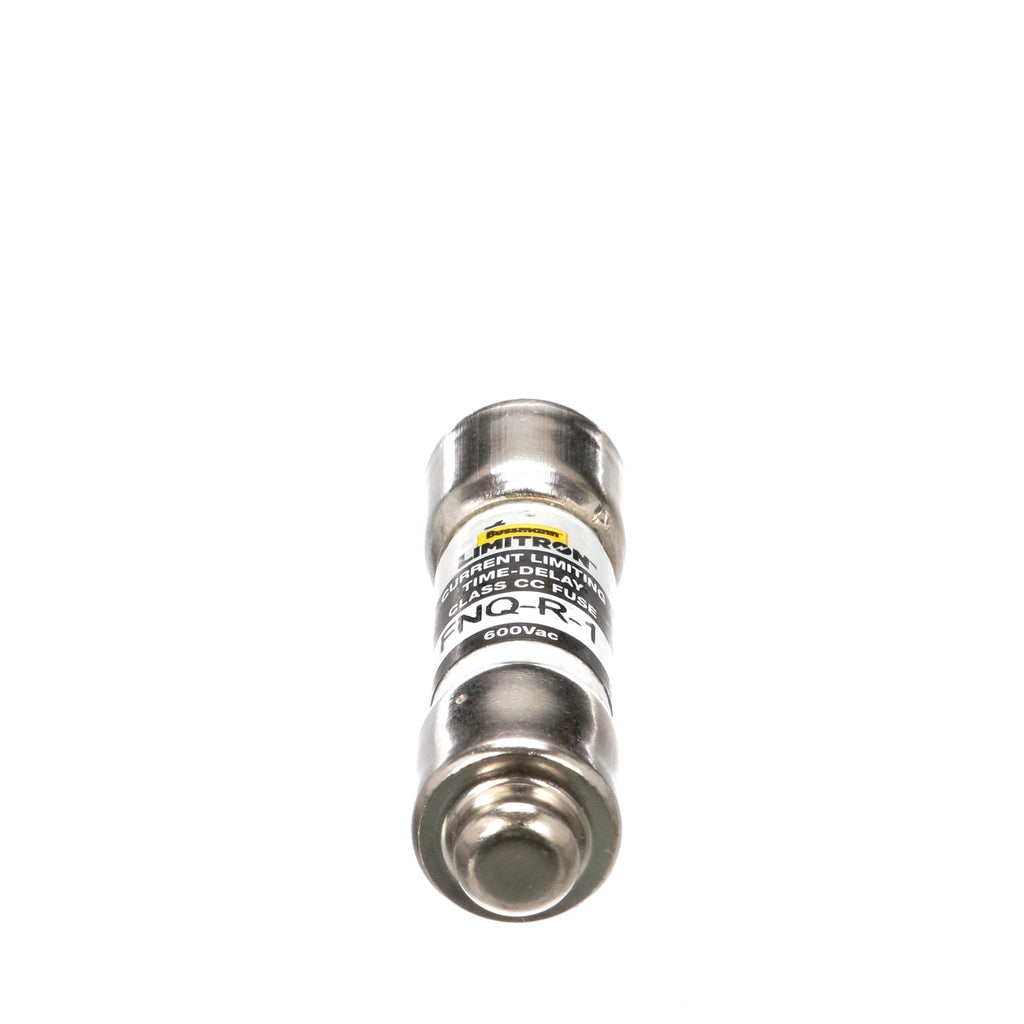

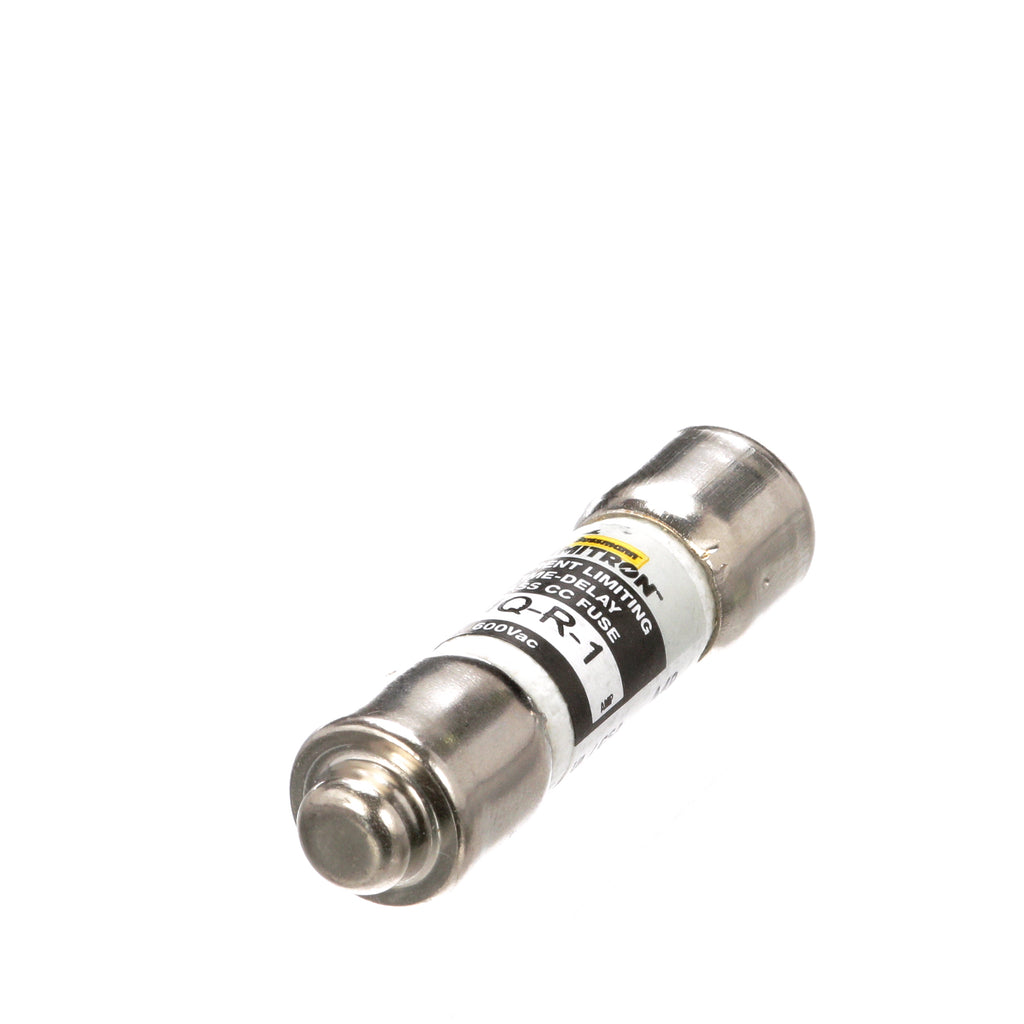

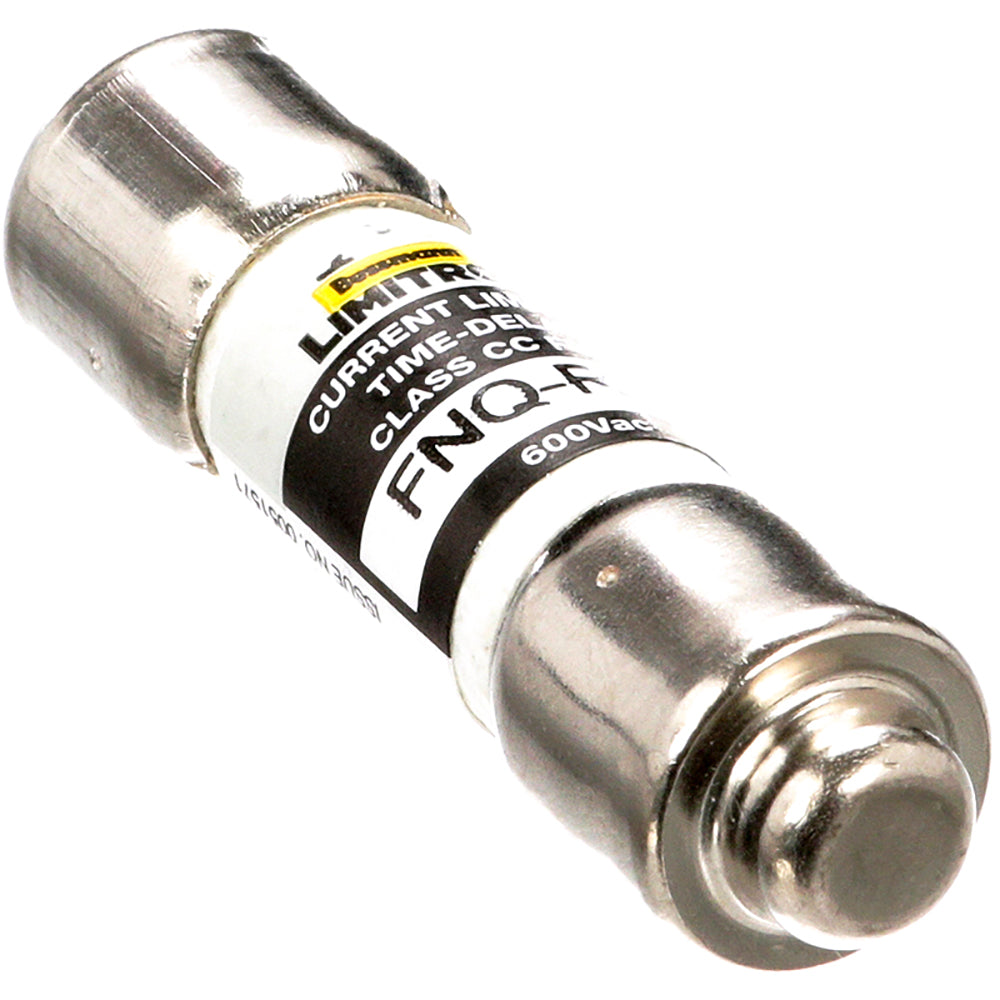

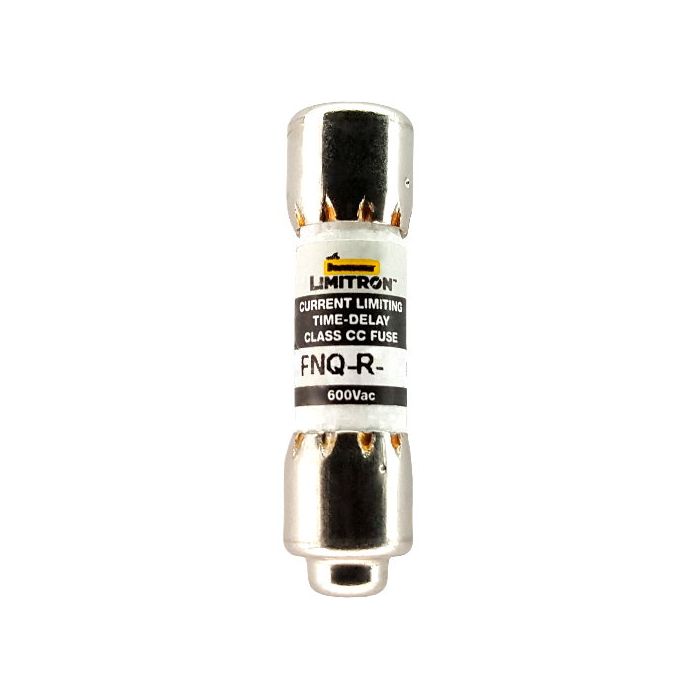

FNQ-R-1 is a 1 ampere, 600 volt AC Class CC time delay fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a current-limiting, dual-element design with a 200,000 amp interrupting rating suitable for control circuit and transformer protection. It has a melamine tube body and ferrule end connections, rated for 600Vac and 300Vdc (for 15 & 20A versions). The FNQ-R series is UL listed and includes a Class CC rejection feature to prevent misapplication.

• Current Rating: 1 Amp
• Voltage Rating: 600 Vac / 300 Vdc
• Fuse Type: Time Delay (Dual Element)
• Interrupting Rating: 200,000 Amps
• Fuse Size: Class CC (1/4" x 1-1/2")
• Body Material: Melamine
• Connection Type: Ferrule End x Ferrule End
• Series: FNQ-R
• Certifications: UL Listed
• Application: Control Circuit and Transformer Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-1
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 1.3
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712147033
• GTIN : 00051712147033
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
