Product Info
- Manufacturer:Bussmann, Cooper Bussmann, Eaton
- Sub-Category:Low Voltage Fuse
Description

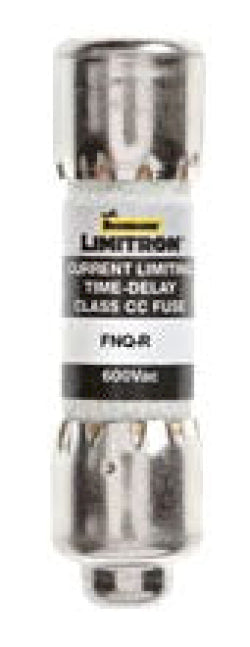

FNQ-R-1-1/8
FNQ-R-1-1/8 is a Bussmann Eaton Class CC time delay fuse rated for 1.125 amperes and 600 volts AC with a 200kA interrupt rating.This Bussmann FNQ-R series fuse features a cylindrical melamine tube body, current limiting dual-element design, and ferrule end terminals for holder mounting. It is a rejection style, non-indicating fuse designed for advanced circuit protection with a 12 second response time at 200% overload.
- Key Specifications
- Amperage Rating: 1.125 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 200 kA
- Class: CC
- Fuse Type: Time Delay / Slow Blow
- Poles: 1
- Mounting Type: Holder Mount
- Body Type: Cylindrical Melamine Tube
- Terminal Type: Ferrule End
- Series: FNQ-R
- Response Time: 12 seconds at 200% overload
- Rejection Style: Yes
Specifications
- Part Number: FNQ-R-1-1/8
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CC-Tron
- Type : FNQ
- Voltage : 600
- Amperage : 1.125
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 051712497053
- GTIN : 00051712497053
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.015
- Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
