FNQ-R-1-1/4 - Eaton Bussmann Class CC Time-Delay Fuse 1.25A 600V 200kA Interrupt Rating

FNQ-R-1-1/4

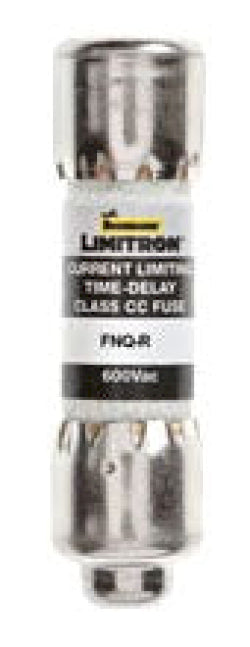

FNQ-R-1-1/4 is a Bussmann series Class CC time-delay fuse designed for advanced circuit protection.This Eaton Bussmann FNQ-R fuse features a 1.25 ampere rating with a 600 volt AC voltage rating. It is a current-limiting, high inrush time-delay fuse with a rejection style design to prevent misapplication. The fuse has an interrupting rating of 200,000 amperes at 600 VAC and is suitable for line protection, small control transformers, industrial control, and branch circuits. It is constructed with a melamine tube and ferrule end connections. The fuse is CE marked and RoHS compliant.

Key Specifications
• Amperage Rating: 1.25 A
• Voltage Rating: 600 V AC
• Interrupting Rating: 200 kA
• Fuse Type: Current-limiting, time-delay
• Class: Class CC
• Connection: Ferrule end x ferrule end
• Material: Melamine tube
• Special Features: Rejection style
• Application: Line protection, control transformers, industrial control, branch circuits
• Certifications: CE Marked, RoHS Compliant
• Fuse Indicator: Non-indicating
• Response Time: 12 seconds at 200% rated current
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FNQ-R-1-1/4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1



Product Data

• UPC : 051712496940
• GTIN : 00051712496940
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
