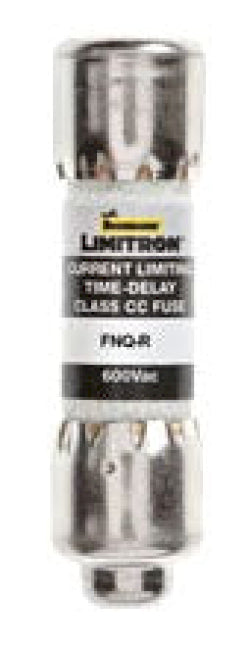

FNQ-R-1-1/2 - Bussmann 1.5A 600V Class CC Time Delay Fuse, 200kA Interrupt, Rejection Type, Dual Element, 13/32" x 1-1/2"

FNQ-R-1-1/2

FNQ-R-1-1/2 is a Bussmann Class CC time delay fuse designed for control circuit transformer protection and industrial control applications. This rejection-type fuse features dual element construction for reliable performance and high inrush tolerance. The FNQ-R-1-1/2 fuse offers advanced current-limiting protection with a 200kA interrupt rating at 600VAC, making it suitable for demanding environments. Its melamine tube construction and nickel-plated brass end caps ensure durability and secure mounting in standard fuse holders.

• Amperage Rating: 1.5A
• Voltage Rating: 600VAC
• Interrupt Rating: 200kA
• Series/Frame: FNQ-R
• Mounting Type: Holder Mount
• Element Type: Dual Element
• Body Size: 13/32" x 1-1/2"
• Class: CC
• Rejection Type: Yes
• Terminal Type: Ferrule
• Material: Melamine
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-R-1-1/2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CC-Tron
• Type : FNQ
• Voltage : 600
• Amperage : 1 1/2
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712147057
• GTIN : 00051712147057
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-01
