Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNQ-7

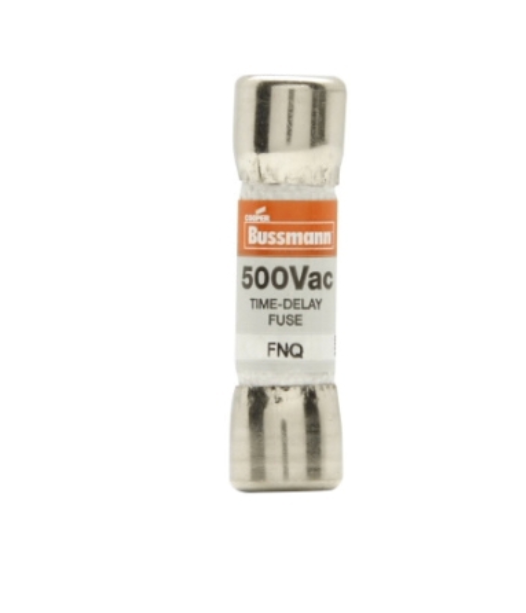

FNQ-7 is a 7 amp, 500 volt time-delay midget fuse from Eaton Bussmann designed for reliable circuit protection.FNQ-7 features a time-delay characteristic suitable for circuits with inrush currents such as motor control transformers. It has a 10,000 amp interrupt rating at 500 Vac, nickel-plated bronze endcaps, and complies with UL, CSA, CE, and RoHS standards. This fuse is part of the FNQ series and is ideal for branch circuit and line protection applications.
- Key Specifications
- Amperage: 7 Amps
- Voltage Rating: 500 Vac
- Interrupt Rating: 10 kA at 500 Vac
- Fuse Type: Time-Delay Midget
- Endcap Material: Nickel-plated bronze
- Series: FNQ
- Certifications: UL Listed, CSA Certified, CE, RoHS compliant
- Physical Size: 13/32" x 1 1/2"
- Mounting Type: Fuse holder or panel mount
- Application: Motor control transformers, circuits with inrush current
- Part Number: FNQ-7
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNQ Series
- Type : FNQ
- Voltage : 500
- Amperage : 7
- AIC rating : 10kA@500V
- Diameter : 0.41
- Barrels : 1
- UPC : 051712786072
- GTIN : 00051712786072
- Country of Origin : Mexico
- Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.175
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
