Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

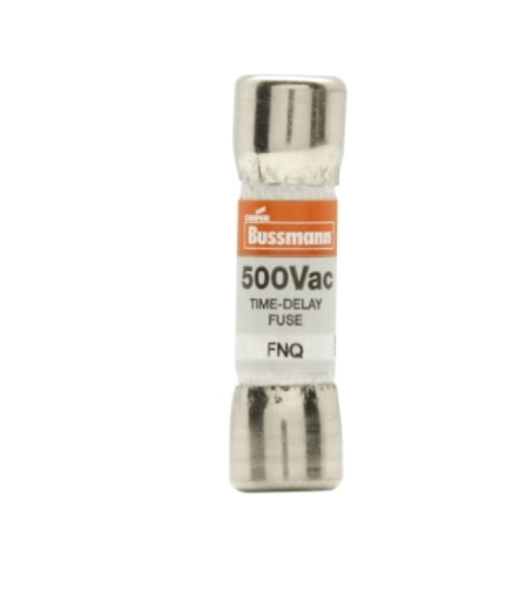

FNQ-6-1/4
FNQ-6-1/4 is a 6.25 amp, 500 volt time delay midget fuse from Eaton Bussmann's FNQ series designed for supplemental circuit protection.This fuse features a cylindrical body style with nonindicating, nonrejection characteristics. It is rated for 10kA interrupting capacity at 500 VAC and provides time-delay protection suitable for branch circuits and small control transformers. The FNQ series is UL listed and CSA certified, ensuring compliance with industry safety standards.
- Amperage: 6.25 A
- Voltage Rating: 500 VAC
- Fuse Type: Time Delay
- Series: FNQ Supplemental Fuse
- Interrupt Rating: 10kA at 500V
- Body Style: Cylindrical, Midget
- Poles: 1 Pole
- Nonindicating, Nonrejection
- Mounting Type: Fuse holder required
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: FNQ-6-1/4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNQ Series
- Type : FNQ
- Voltage : 500
- Amperage : 6
- AIC rating : 10kA@500V
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 051712786317
- GTIN : 00051712786317
- Country of Origin : Mexico
- Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.175
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
