FNQ-5 - Eaton Bussmann Cooper Bussmann 5 Amp 500V AC Time Delay Midget Fuse, 10kA Interrupt, Ferrule Terminal, UL CSA CE, FNQ Series

FNQ-5

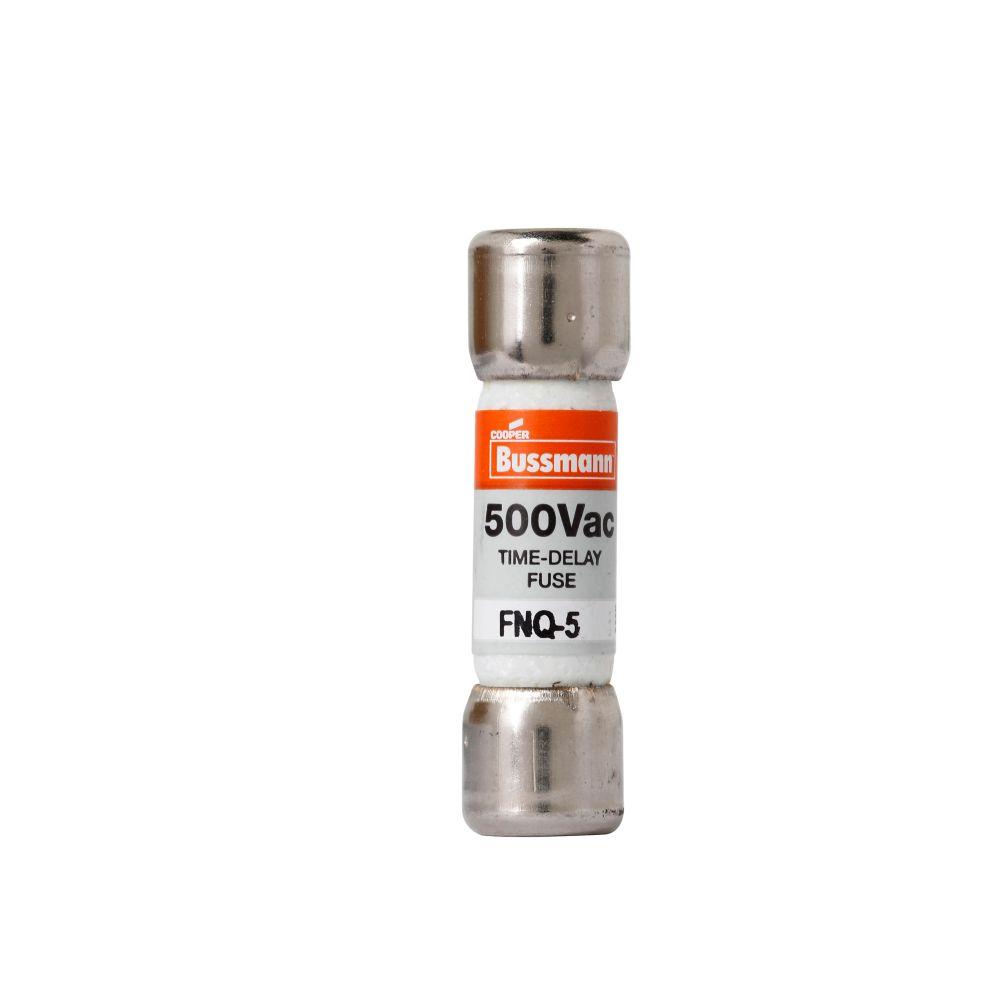

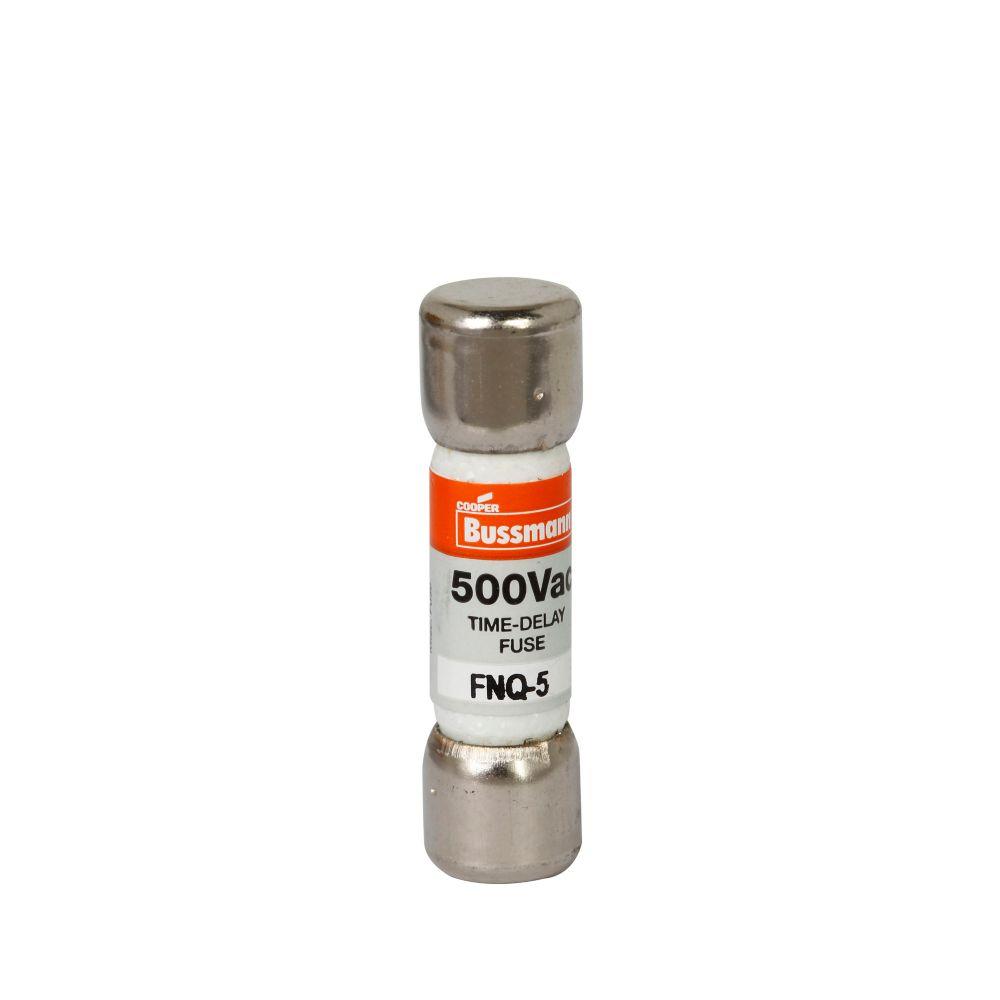

FNQ-5 is a time-delay, dual-element, midget fuse from Eaton Bussmann, designed for reliable circuit protection in demanding electrical applications.

This fuse features a 5 amp current rating, 500V AC voltage rating, and a high 10,000 amp interrupting capacity. It is constructed with a fiber tube and ferrule terminals, making it suitable for circuits with inrush currents such as motor control transformers. The FNQ-5 is part of the FNQ series and is certified to UL 248-14, CSA, and CE standards for safety and performance.

Key Specifications
• Part Number: FNQ-5
• Manufacturer: Eaton Bussmann (Cooper Bussmann)
• Amperage: 5 A
• Voltage: 500 V AC
• Poles: Single
• Mounting Type: Cartridge, ferrule terminal
• Interrupt Rating: 10,000 A (symmetrical)
• Series/Frame: FNQ
• Trip Unit: Time-delay (slow blow)
• Certifications: UL Listed (248-14), CSA Certified, CE
• Body Size: 13/32" diameter x 1-1/2" length
• Application: Motor control, transformers, circuits with inrush current

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-5
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNQ Series
• Type : FNQ
• Voltage : 500
• Amperage : 5
• AIC rating : 10kA@500V
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 051712786294
• GTIN : 00051712786294
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.175
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
