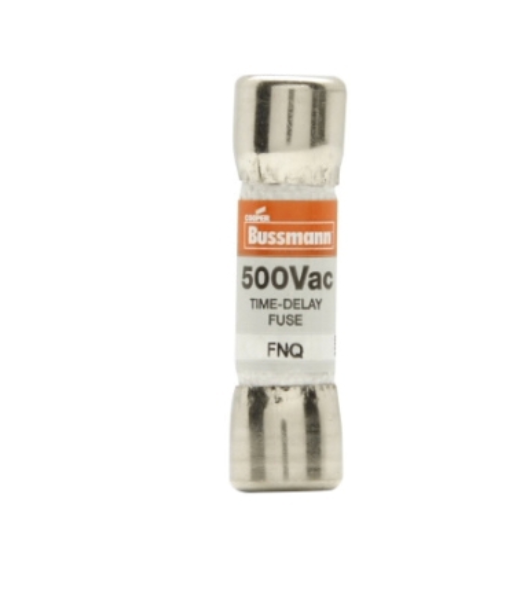

FNQ-5-6/10 - Cooper Bussmann Eaton 5.6A 500V Time-Delay Class CC Fuse Cartridge

FNQ-5-6/10

FNQ-5-6/10 is a Cooper Bussmann Eaton time-delay Class CC fuse rated for 5.6 amperes and 500 volts AC, designed for branch circuit protection.This fuse features a time-delay characteristic suitable for protecting branch circuits, small control transformers, and industrial control equipment. It is a cartridge-style fuse with a ferrule end-to-end design, providing reliable current limiting and superior protection. The FNQ-5-6/10 is UL listed and CSA certified, with a 10kA interrupt rating at 500 volts AC. It is compatible with standard Class CC fuse holders and mounts in holders or blocks designed for this series.

• Amperage: 5.6 A
• Voltage Rating: 500 VAC
• Fuse Type: Time-Delay (Slow Blow)
• Class: CC
• Mounting Type: Cartridge, holder mounted
• Interrupt Rating: 10,000 AIC at 500 VAC
• Fuse Body: Melamine tube, ferrule end-to-end
• Series: FNQ (T-Tron)
• Certifications: UL Listed, CSA Certified
• Dimensions: approx. 13/32 inch diameter x 1-1/2 inch length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-5-6/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNQ Series
• Type : FNQ
• Voltage : 500
• Amperage : 5
• AIC rating : 10kA@500V
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 051712786300
• GTIN : 00051712786300
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.175
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
