Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

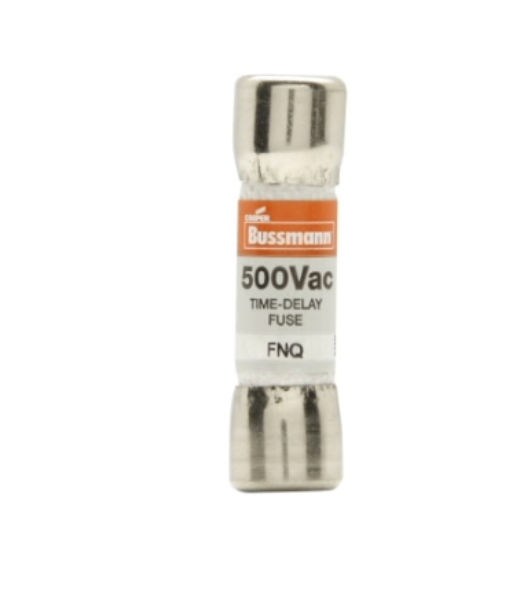

FNQ-4/10
FNQ-4/10 is a 0.4 amp, 600 volt AC, Class CC time-delay fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a current-limiting design with a 200kA interrupt rating at 600 volts AC, providing enhanced protection for branch circuits and transformers. It has a compact size of 1.5 inches length by 13/32 inches diameter and offers a 12-second response time to transient surges. The FNQ-4/10 is UL listed and suitable for use in industrial and commercial electrical systems.
- Current Rating: 0.4 Amps (4/10 Amp)
- Voltage Rating: 600 VAC
- Class CC Fuse
- Time Delay / Slow Blow Type
- Interrupting Rating: 200,000 Amps
- Fuse Size: 1.5 in length x 13/32 in diameter
- Current Limiting
- UL Listed
- Compact Midget Fuse Size
- Typical Applications: Branch circuit and transformer protection
Specifications
- Part Number: FNQ-4/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNQ Series
- Type : FNQ
- Voltage : 500
- Amperage : 4
- AIC rating : 10kA@500V
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 051712786096
- GTIN : 00051712786096
- Country of Origin : Mexico
- Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.175
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
