FNQ-3 - Bussmann 3A 500V AC Time-Delay Midget Fuse, 1 Pole, Fiber Tube, 10kA Interrupt Rating

FNQ-3

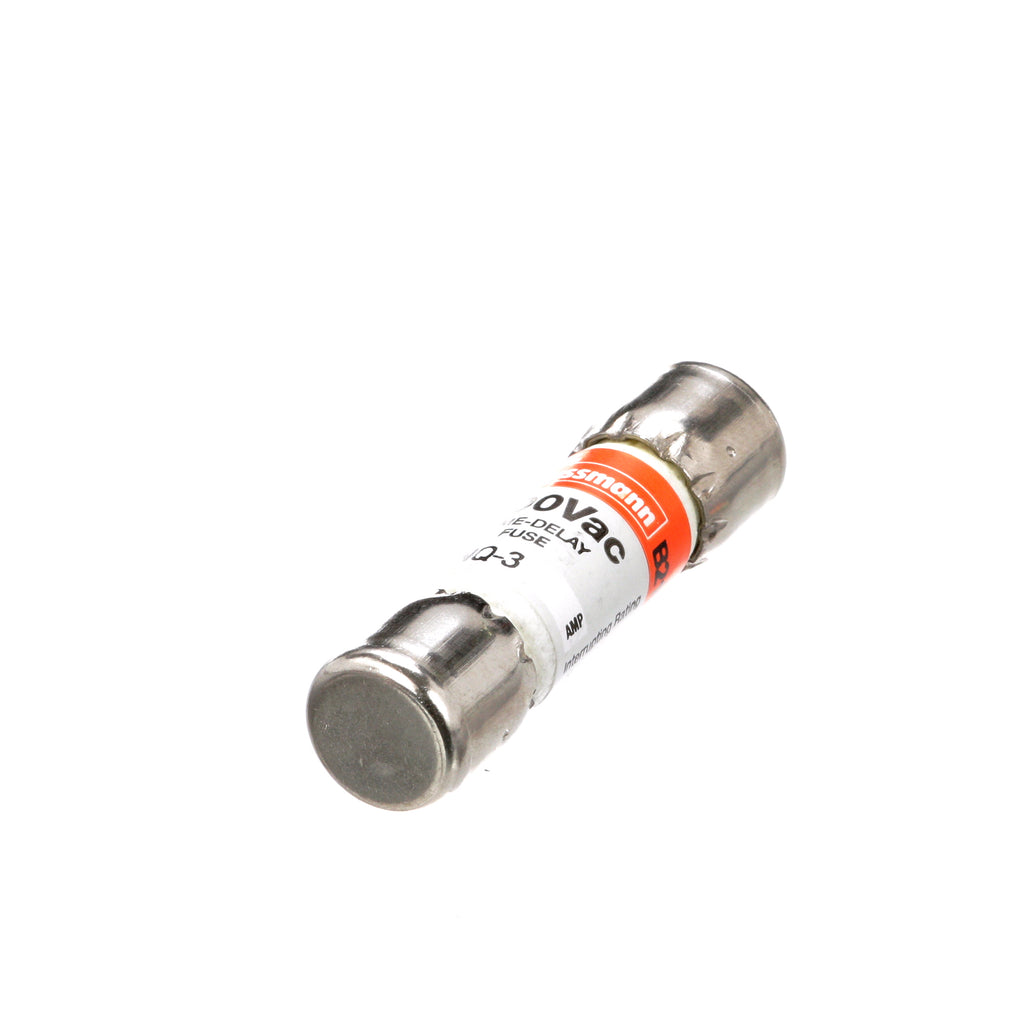

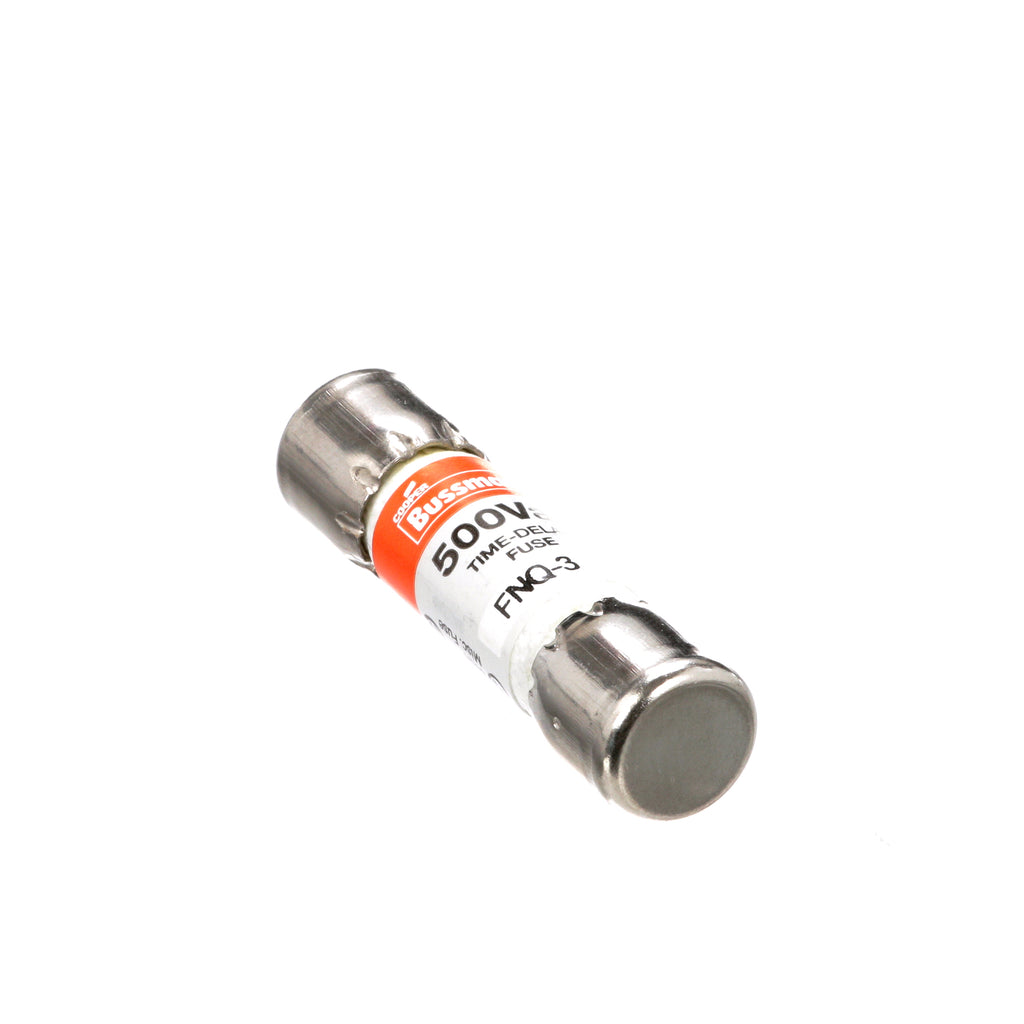

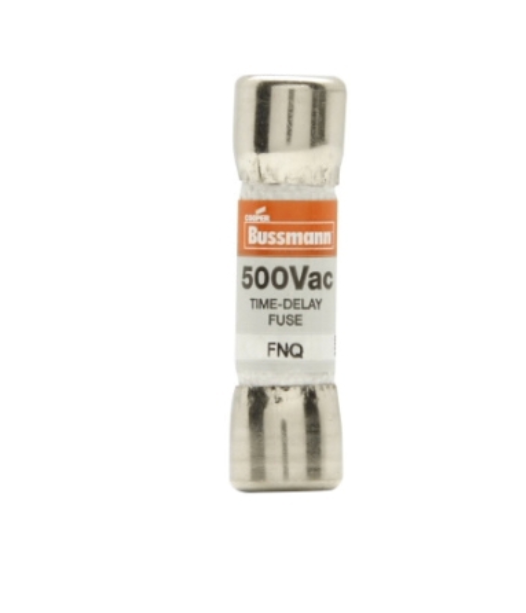

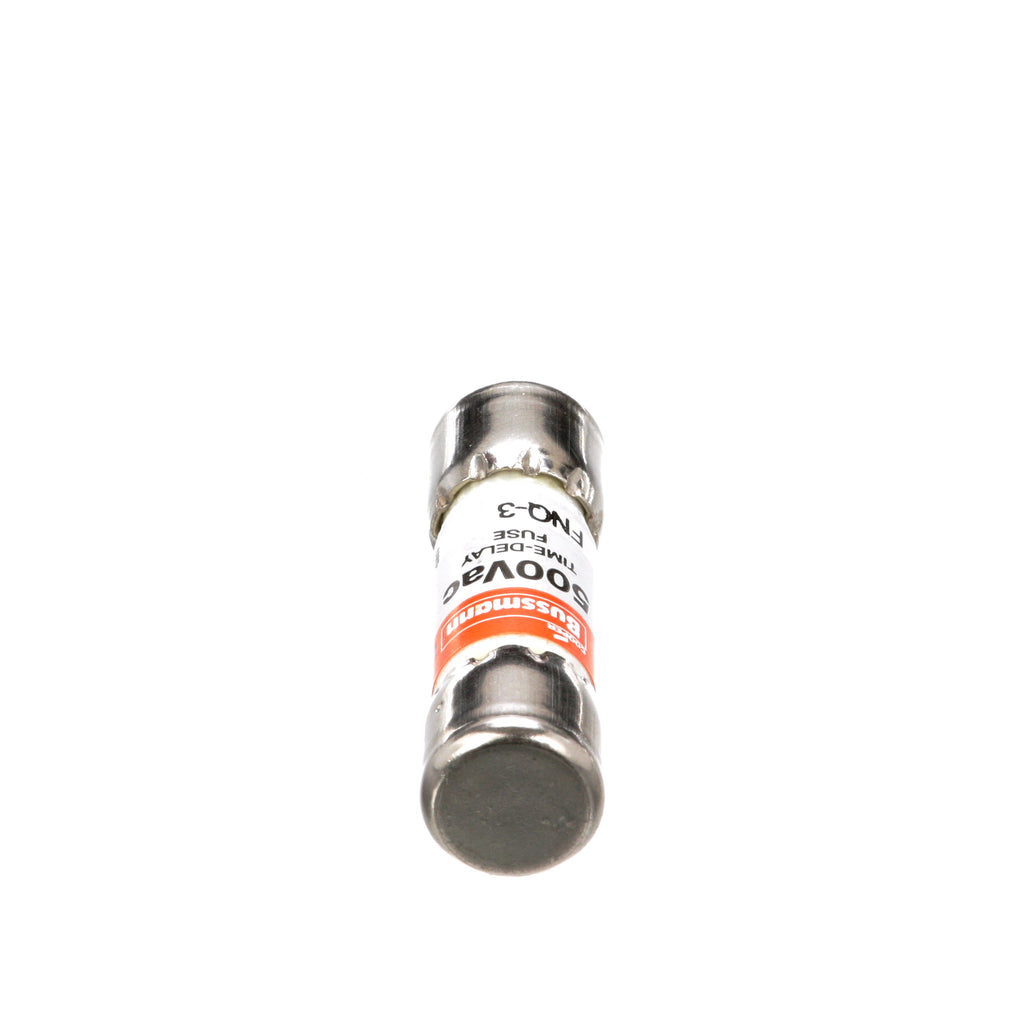

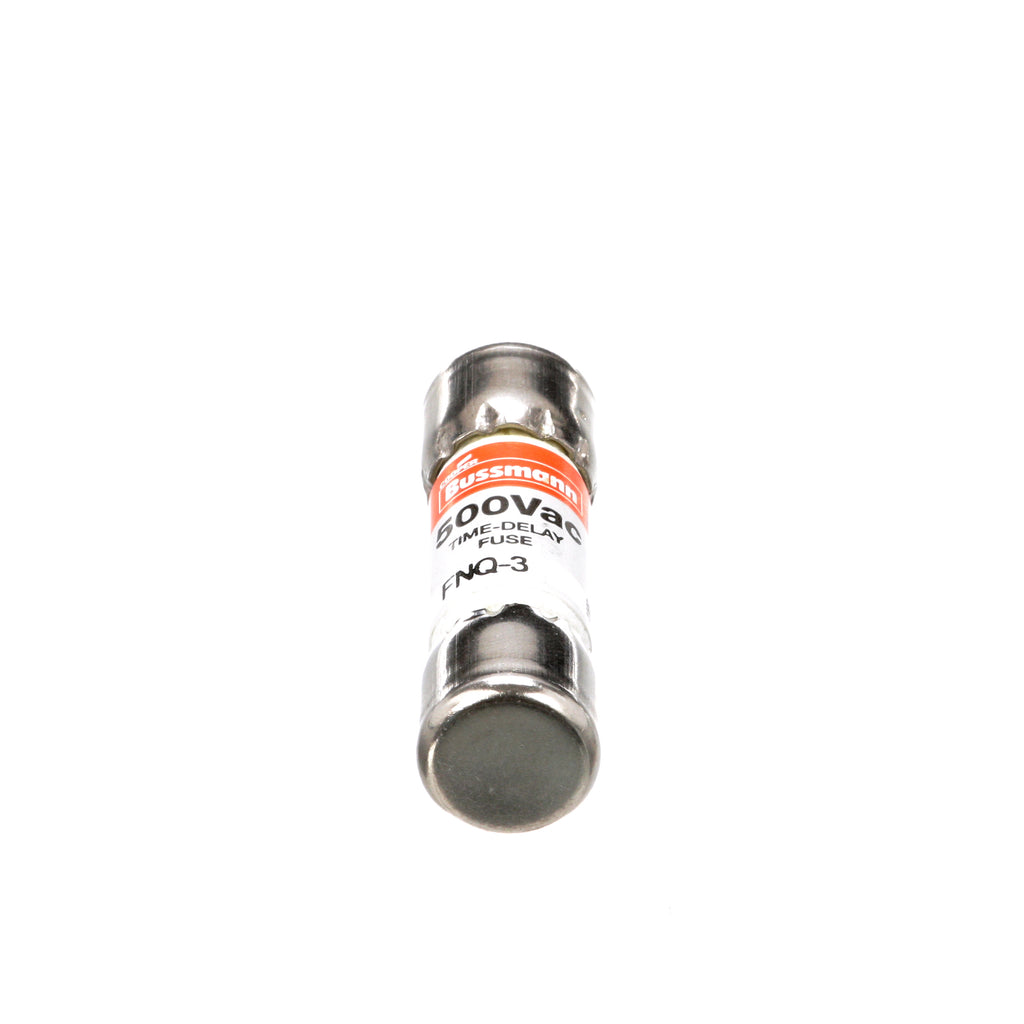

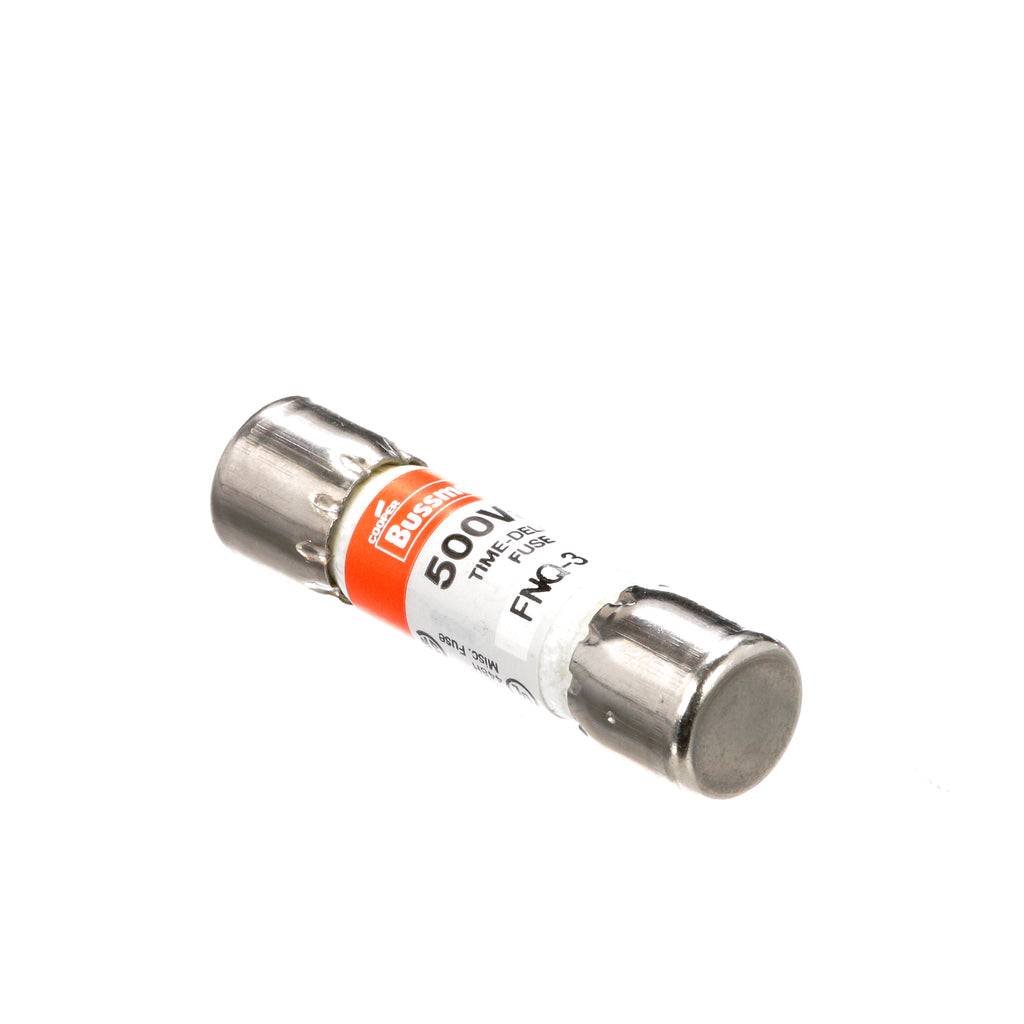

FNQ-3 is a Bussmann time-delay midget fuse designed for supplemental circuit protection with a 3 amp rating and 500 volts AC maximum.This fuse features a fiber tube construction with nickel-plated brass endcaps, measures 13/32 inch diameter by 1 1/2 inch length, and provides a 10,000 amp interrupt rating. It is UL listed and CSA certified, suitable for motor control transformers and circuits with inrush currents.

• Amperage: 3 A
• Voltage Rating: 500 V AC
• Fuse Type: Time-Delay (Slow Blow)
• Poles: 1
• Body Style: Midget (5AG size)
• Construction: Fiber Tube with nickel-plated brass endcaps
• Dimensions: 13/32 in diameter x 1 1/2 in length
• Interrupt Rating: 10,000 A
• Certifications: UL Listed, CSA Certified
• Typical Applications: Motor control transformers, circuits with inrush currents

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-3
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNQ Series
• Type : FNQ
• Voltage : 500
• Amperage : 3
• AIC rating : 10kA@500V
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 051712786270
• GTIN : 00051712786270
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.175
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
