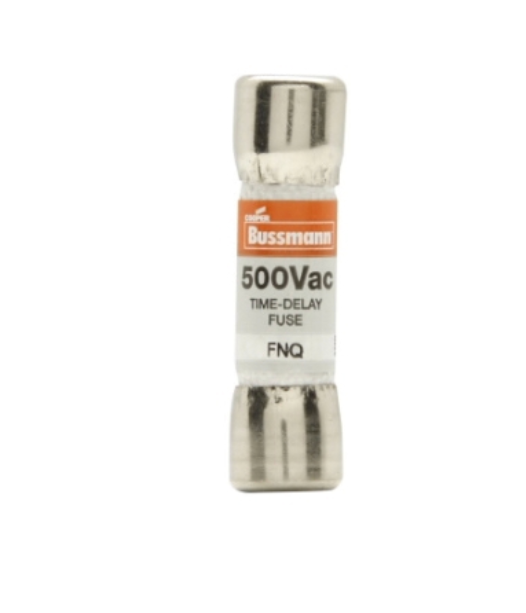

FNQ-3/16 - Eaton 0.1875A 500V Time Delay Midget Fuse 10kA Interrupt Rating

FNQ-3/16

FNQ-3/16 is an Eaton Bussmann series time delay midget fuse rated for 0.1875 amperes and 500 volts AC with a 10kA interrupt rating.FNQ-3/16 features a cylindrical cartridge body designed for motor control transformers and circuits with inrush currents. It provides reliable protection with a fiber tube construction and nickel-plated brass endcaps, suitable for applications requiring a slow-blow fuse.

• Amperage Rating: 0.1875 A (3/16 A)
• Voltage Rating: 500 VAC
• Fuse Type: Time Delay (Slow Blow)
• Interrupt Rating: 10,000 A (10 kA)
• Body Style: Cylindrical Cartridge
• Series: Bussmann FNQ
• Dimensions: 13/32" x 1-1/2" (10.3mm x 38.1mm)
• Color Coded for 500V Rating
• Non-indicating
• Typical Use: Motor Control Transformers, Inrush Current Circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-3/16
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNQ Series
• Type : FNQ
• Voltage : 500
• Amperage : 3
• AIC rating : 10kA@500V
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 051712786201
• GTIN : 00051712786201
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.175
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
